Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $176.30 | $172.70 | $167.31 | $160.11 | Contact US |

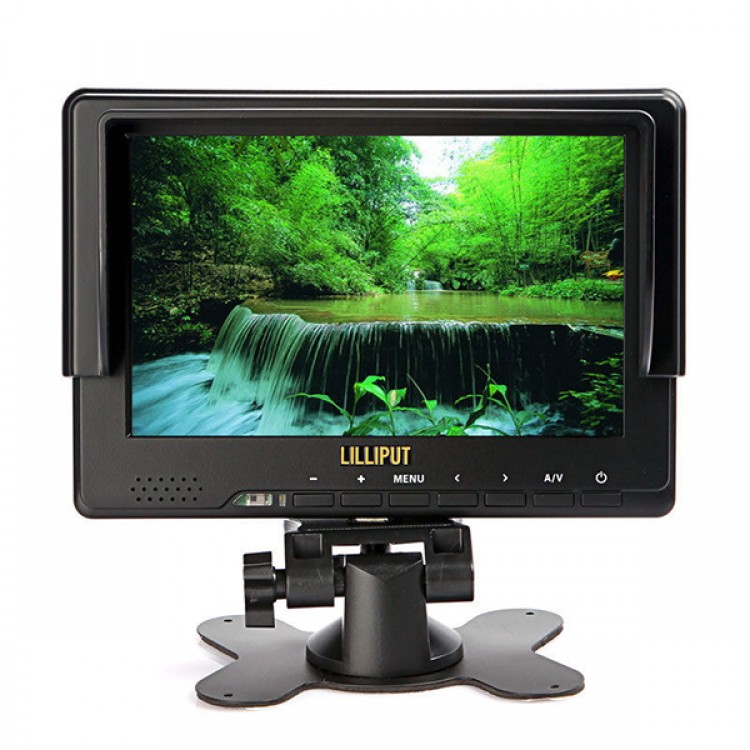

LILLIPUT 667GL-70NP/H/Y 7" LCD Camera Field Monitor HDMI YPbPr AV Input FPV Monitor
This delicately designed 7" LCD camera monitor is perfect for your indoor and outdoor shooting. It provides you better visual and allows multiple viewers at the same time in a remote distance.
Features:
- Provides center marker, underscan/overscan and view frame functions.
- Application on Full HD video camera for CCTV monitoring and making movies.
- High brightness/contrast & dizzy-proof monitor.
- Compatible sun shade for clear image under sunshine.
- Provides RGB monochromatic display, 16:9 aspect ratio.
- Could use high capacity rechargeable Li-ion battery, to make power cables free.
- Multi mounting methods to view under different angles.
DV battery mount plate:
- Model F-970
- For battery of SONY DV: DCR-TRV series, DCR-TRV E series, VX2100EPD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX 1000E, HVR-Z1C, HVR-V1C, FX7E F330.
Specifications:
Panel size | 7" TFT LCD (16:9) |
Resolution | 800 * 400 , support 1920 * 1080 |
Brightness | 450cd/m2 (optional: 250cd/m2) |
Contrast | 500:1 |
Viewing angle | 120°/ 140°(H/V) |
Input vltage | DC 12V(DC2.1 and 4Pin XLR DC connection) |
Input signal | HDMI, YPbPr, AV1/AV2 |
Battery | 4200mA/7.4V(external)(not included) |
Current | 650mA (1.2A when charging) |
Standby current | less than 50mA |
Power consumption | less than 8W |
Input resistance | 75ohmω |
Input frequency | H/30-60KHz, V/60-75Hz |
Audio Output | more than 250mW |
Speaker | 1 in front |
Item size |
19 * 13.4 * 3.8/ 7.8cm (with sun shade) 7.5 * 5.3 * 1.5/3.1in (with sun shade) |
Item Weight |
480g/535g (with sun shade) 16.9oz/18.9oz (with sun shade) |
Package size | 32 * 20 * 7cm (12.6 * 7.8 * 2.8in) |
Package Weight | 1152g/2.5lb |
Package list:
- LILLIPUT 667GL-70NP/H/Y 7" LCD Camera Field Monitor
- Sun shade: 1 Piece
- Battery plate (F-970, QM91D, DU21 or LP-E6,choose 2 of them。We would send F970 and LP-E6 as default, if you need other option, please contact us when you order. )
- 12V1.5A DC adapter: 1 Piece
- Remote control: 1 Piece
- Manual: 1 Copy
- Bracket: 1Piece
