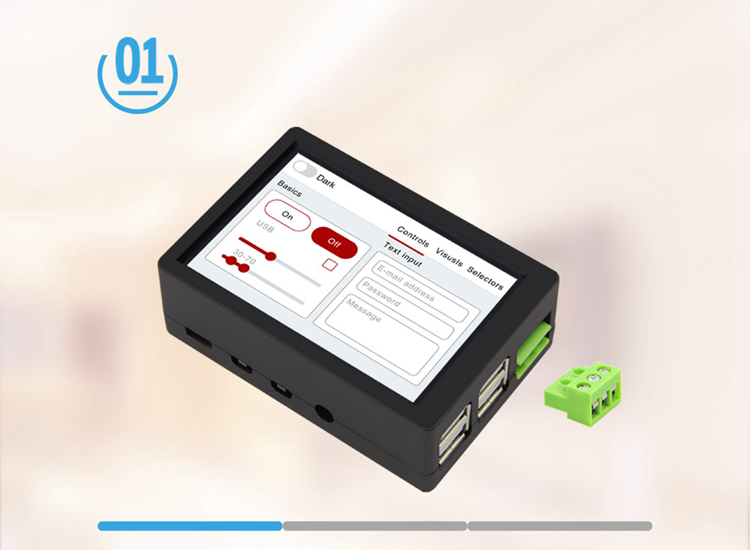

LILY Pi TN ST7796 FT6236 3.5" Capacitive Touch Screen ESP32 WIFI Bluetooth 5V Relay USB Expansion

LILY Pi TN ST7796 FT6236 3.5" Capacitive Touch Screen ESP32 WIFI Bluetooth 5V Relay USB Expansion

Description:
LILY Pi is designed and modified by the LILYGO team based on the appearance structure for Raspberry Pi. The appearance is similar to the motherboard structure for Raspberry Pi. The 2x20 expansion port next to it has reserved pins that for Raspberry Pi GPIO, which is suitable for some Raspberry Pi Expansion function accessories.

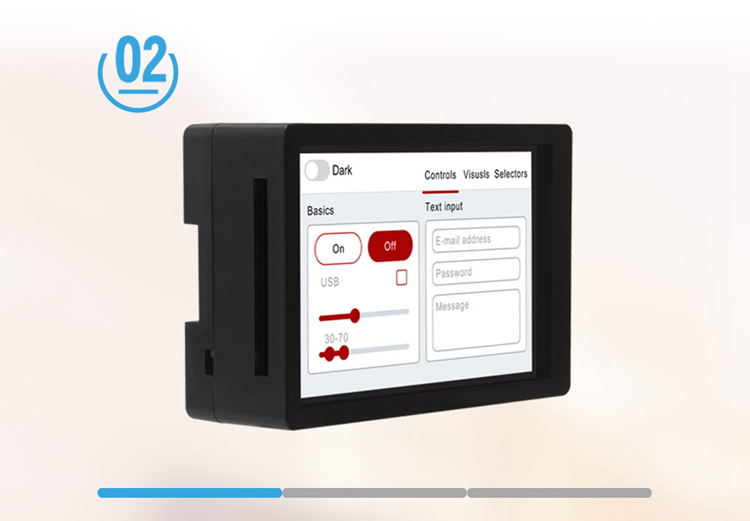

Based on this structure, a 3.5-inch capacitive touch screen expansion board is designed and made, which is suitable for Raspberry Pi uses.

Functionally based on ES32-WROVER (WIFI/Bluetooth) module, 5V relay, buttons, RTC, DC socket (5-12V input), USB expansion port I2C/UART, USB expansion port are designed. Output power supply can supply power and control the current of equipment below 1A.

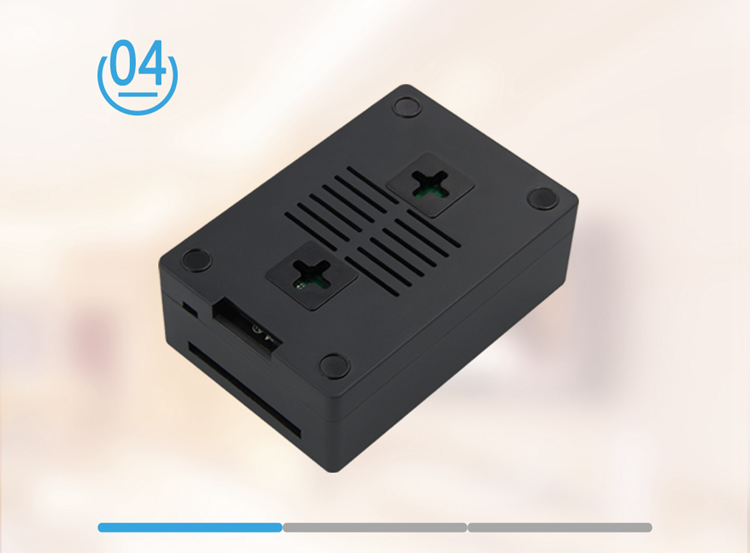

The back side retains a TF card socket in the same position as that for Raspberry Pi, which is a self-popping card socket, which is convenient for plugging in and out.

Applications:
- Programming
- Internet
- Interaction
- Expansion

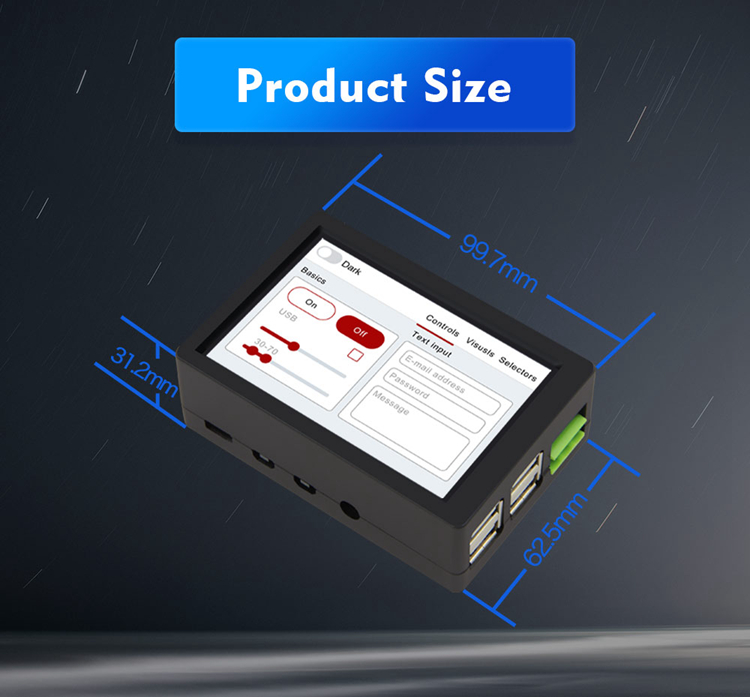

Specifications:

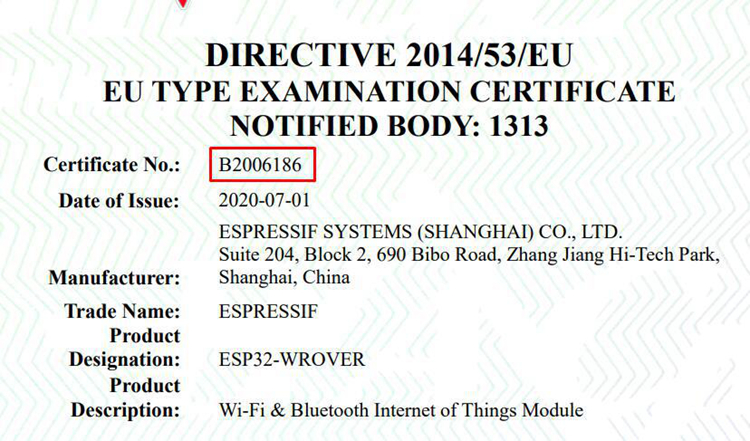

- Chip: ESP32-WAROVER

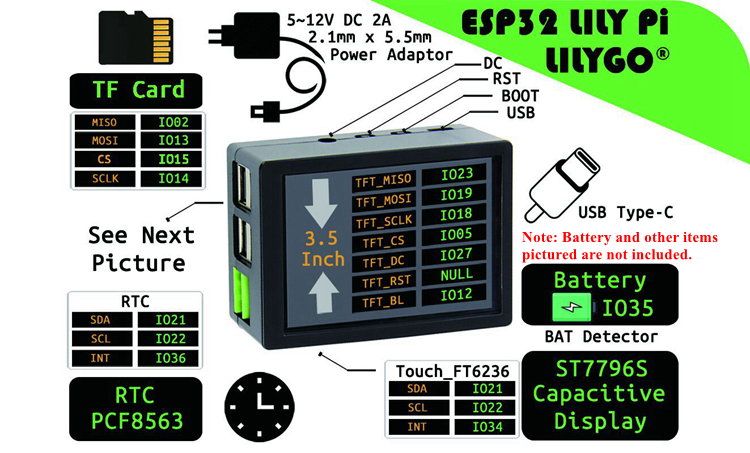

- LCD: 3.5-inch capacitive touch screen ST7796 FT6236
- USB TO TTL: CP2104
- Relay: HFD3 5V 2A
- Relay connector: 5.08
- DC-DC input: 5-12V

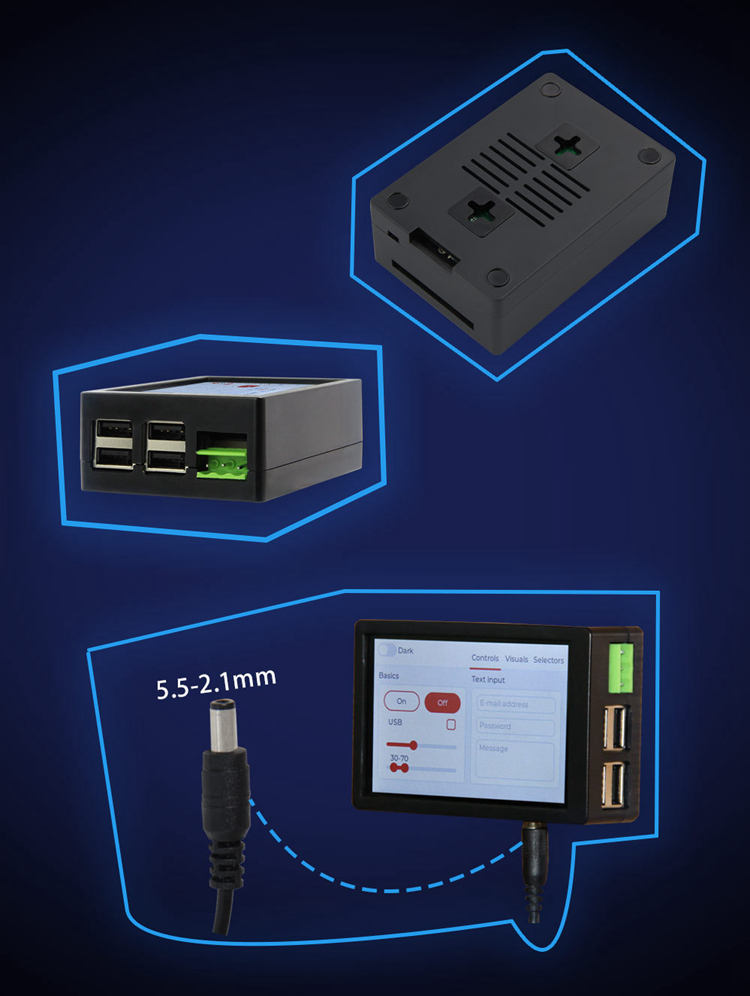

- DC Block Specifications: 5.5x2.1

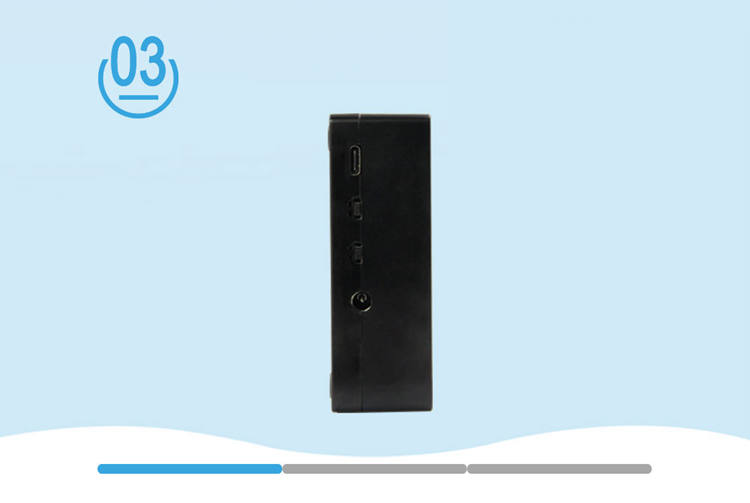

- TYPE-C input: 5V
- USB output: 5V 1A
- Button: RST button, custom button
- RTC: PCF8563
- Extension pin: 2.54 2x20

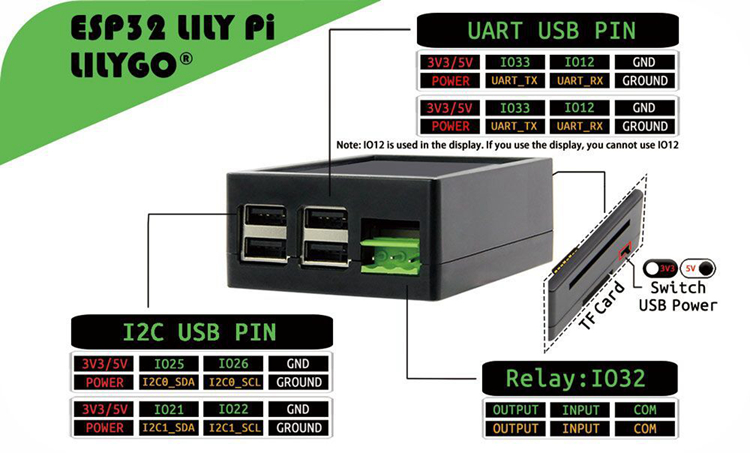

- Double-layer USB expansion port: Output 5V 1A
- Double-layer USB interface: They are I2C/UART functions
- TF slot

Github Link:
https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library/tree/master/examples/LilyPi

Package Included:

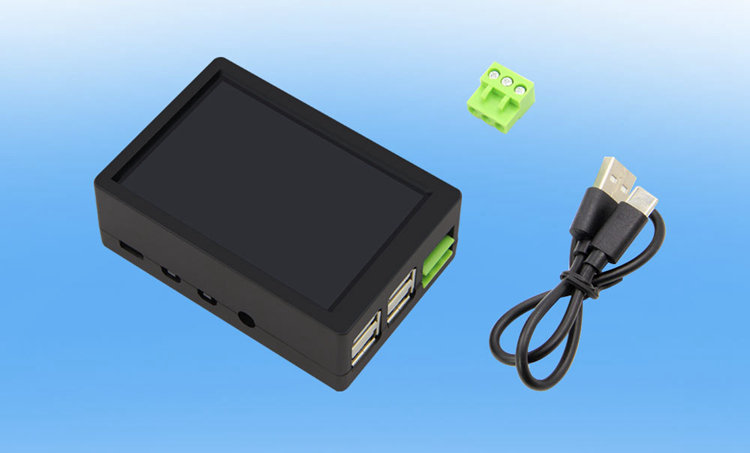

- 1 x Set of Capacitive Touch Screen

Note:
- Its battery interface fits H2.0 3.7V lithium battery which is not included.
- Battery and other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
