LILYGO T-ECHO BME280 Wireless Transceiver Module NRF52840 SX1262 LORA GPS 1.54" E-paper for Arduino

Product Description:

LILYGO T-Echo is a version evolved from LILYGO T-BEAM. At the beginning of the design, more consideration was given to fit for Meshtastic and SotfRF, so Bluetooth and low power consumption were considered in the design. It selected NRF52840 Advanced Bluetooth 5, Thread and Zigbee multi-protocol SoC.

T-SX1262 wireless transceiver module adopts SX1262 LORA RF transceiver chip for Semtech, working in the 868/915MHz ISM frequency band. It integrates high-stability 32MHz TCXO and half-duplex transceiver module, with power up to +22dBm and -139dBm receiving sensitivity.

Automatic transceiver switching, internal transmission and reception channel isolation, advanced LORA spread spectrum communication technology and strong anti-interference and privacy can help realize long-distance wireless data transmission and reception.

Features of the Module:

- Multi-satellite positioning system L76K is a support multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint positioning and single system independent positioning, support AGNSS function, built-in low noise amplifier and surface filter, can provide users GNSS module with fast, accurate and high-performance positioning experience.
- Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban environments.
- It supports the AGNSS function, which can greatly Reduce the time for the first positioning, built-in low-noise amplifier, can achieve high sensitivity, high-precision positioning and fast signal capture and tracking, even under weak signal conditions can also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module and the active antenna from damage.

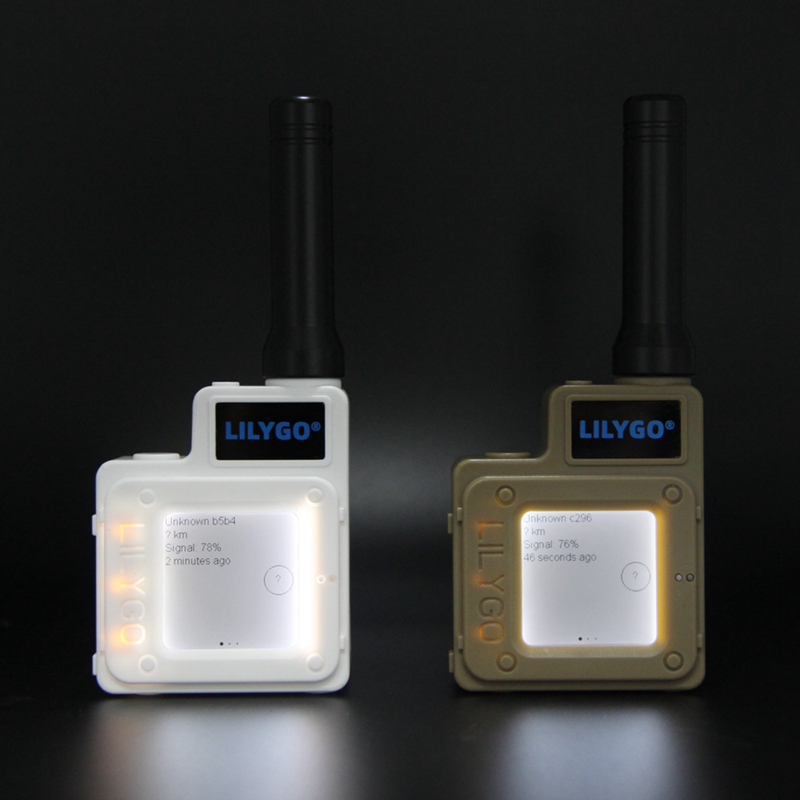

- The display uses a 1.54-inch electronic paper display with front light and 200x200 resolution 1.54" front LED E-paper, and it can be used in a dark environment.

Product Parameters:
MCU: NRF52840; FLASH: 2MB; RAM: 256kB
- Bus Interfaces: UART, SPI, TWI, PDM, I2S, and QSPI
- Wireless Connectivity: Bluetooth 5, Bluetooth Mesh, Thread, ANT, 802.15.4, and Zigbee
- Version: With BME280 temperature, humidity and pressure sensor

SX1262 LoRa Transceiver:
- Long-distance data transmitting and receiving with low power consumption
- Global LoRa frequency coverage: support 433, 868, and 915Mhz

1.54-inch SPI E-Paper Display:
- Partial refresh time 0.3s, full refresh time 2s
- Resolution: 200x200
- Viewing angle: >170°
- Save displayed content when there is no power

L76K Concurrent GNSS Receiving Module:
- Support 1PPS and AGNSS function
- Support Beidou, GPS, GLONASS, QZSS and other multi-satellite systems
- Built-in LNA helps achieve high sensitivity, high precision positioning, and signal tracking
- Built-in surface acoustic filter can greatly increase the anti-interference ability of the module

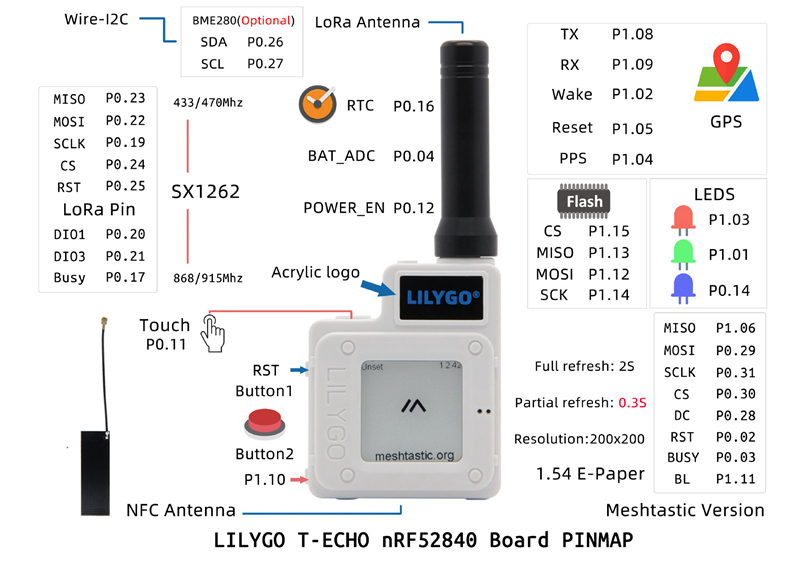

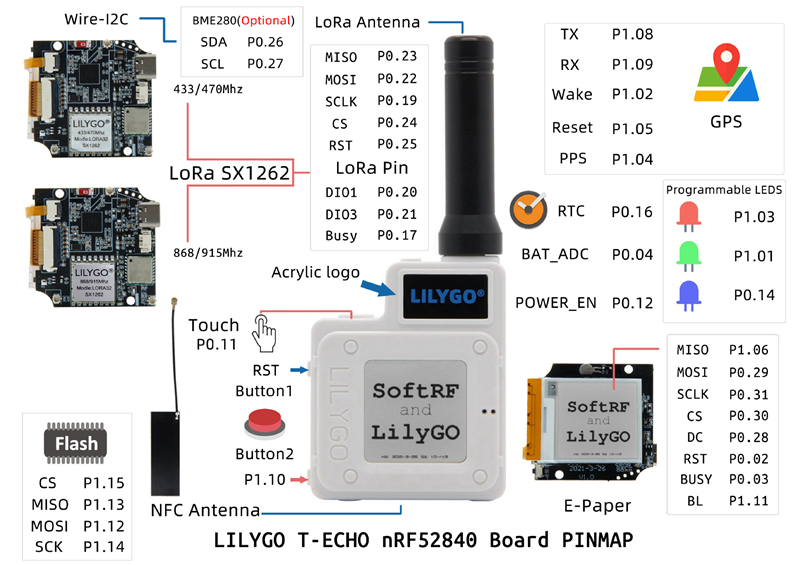

T-Echo Host Parameters:
- NRF52840 BLE/NFC
- L76K GPS module
- T-SX1262 LORA module
- 1.54" E-paper with front LED screen light
- RTC PCF8563
- RGB LED

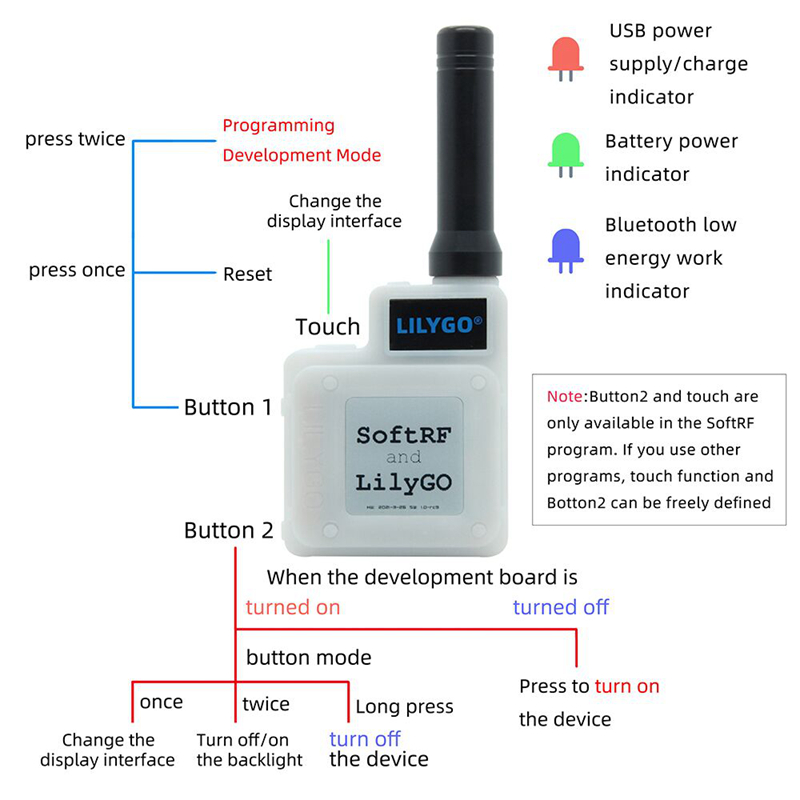

- RST button X1
- Custom button X1
- Touch button TTP223

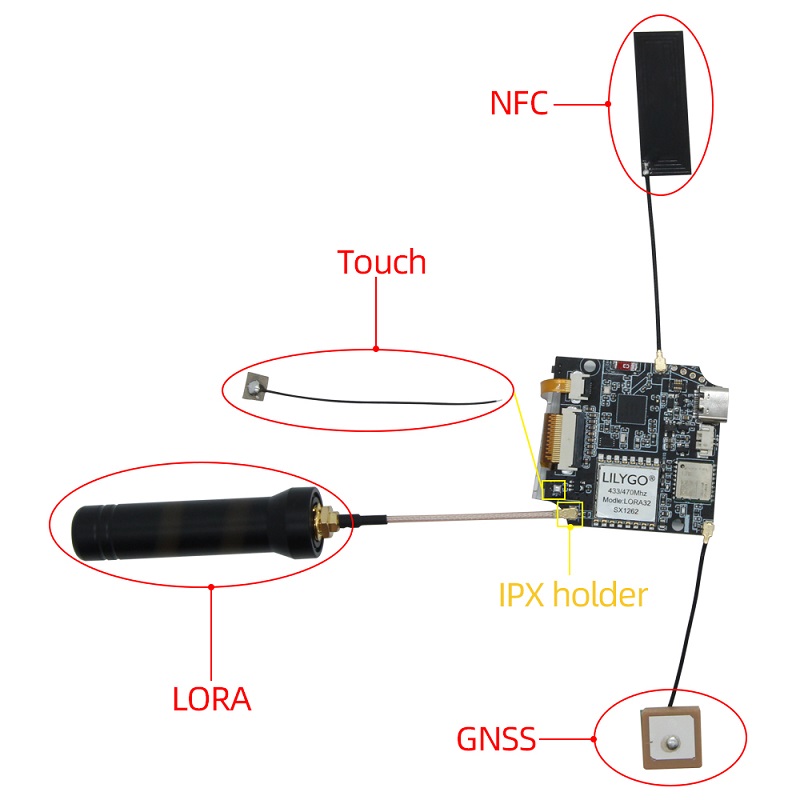

- IPEX Antenna Base X3
- 1.25 pitch battery holder (battery not included)
- 12.5V input Type-C USB
- 10pin 0.4 pitch BTB socket can be used to expand functional modules

Application Scenarios:
- IOT terminal controller
- LoRa networking
- Stem education product
- DIY creation
- GPS positioning

Product Code:
https://github.com/Xinyuan-LilyGO/T-Echo
https://github.com/lyusupov/SoftRF/wiki/Badge-Edition

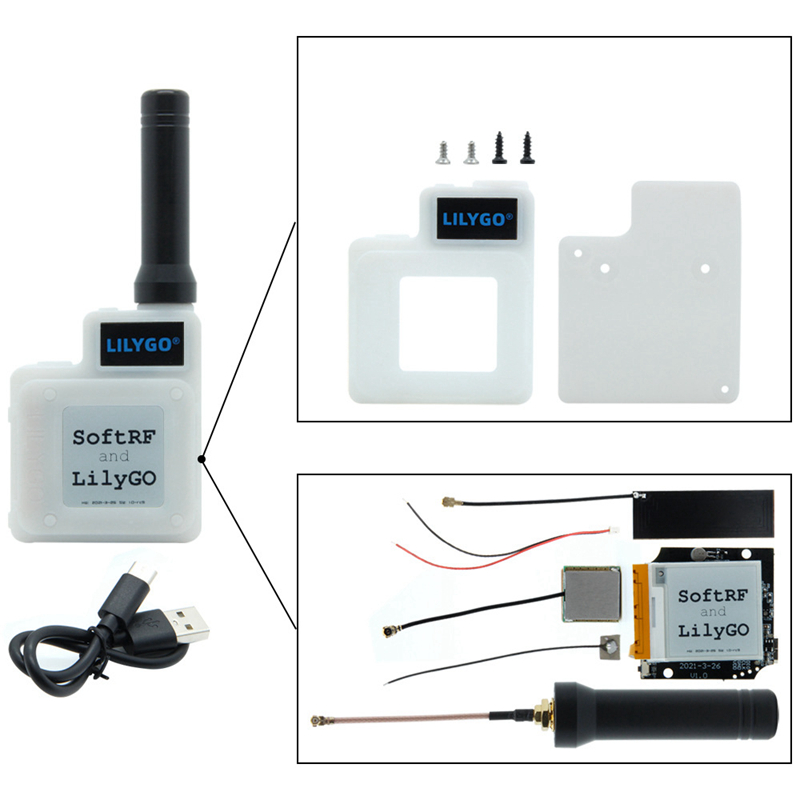

Package Included:
- 1 x T-ECHO Motherboard
- 1 x GPS Antenna
- 1 x LoRa Antenna (433/868/915MHz)
- 1 x NFC Antenna
- 1 x Touch Cable
- 1 x Jst 2-Pin 1.25mm Connection Cable
- 1 x Type-C USB Cable
- 1 x 3D Printed Shell

Note:
- 850mA lithium battery (not included) is recommended.

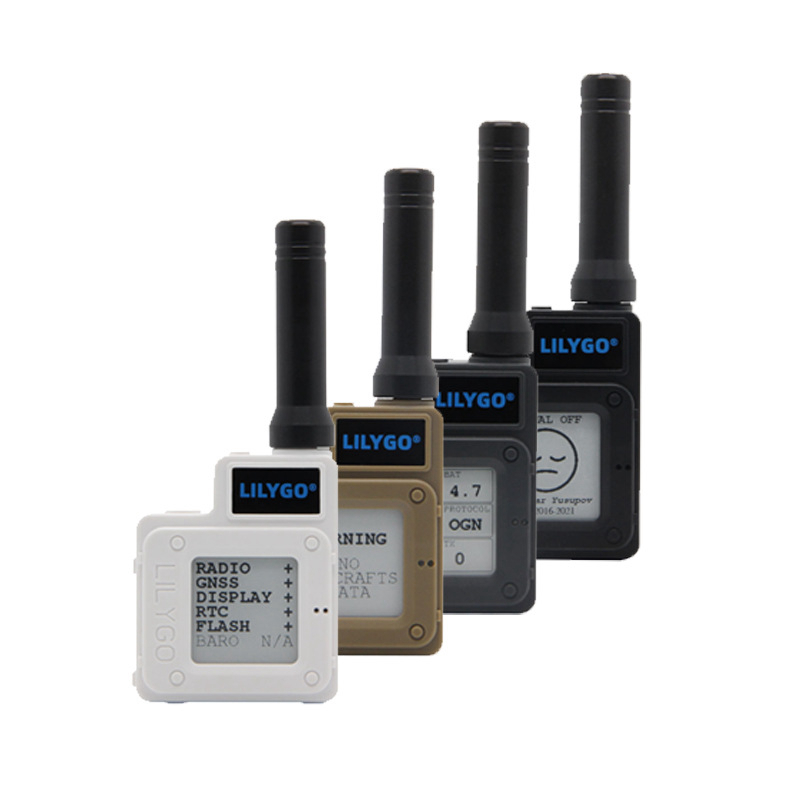

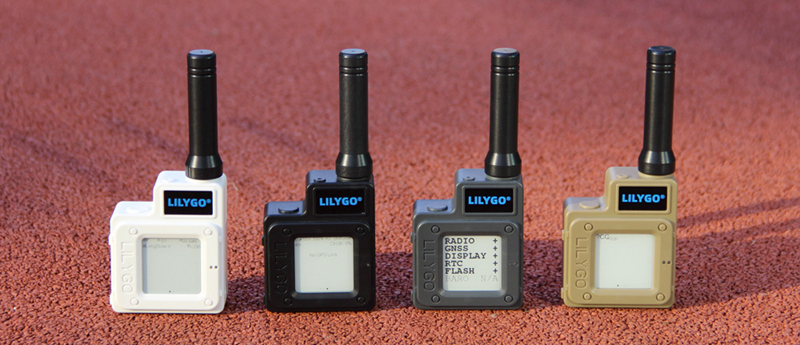

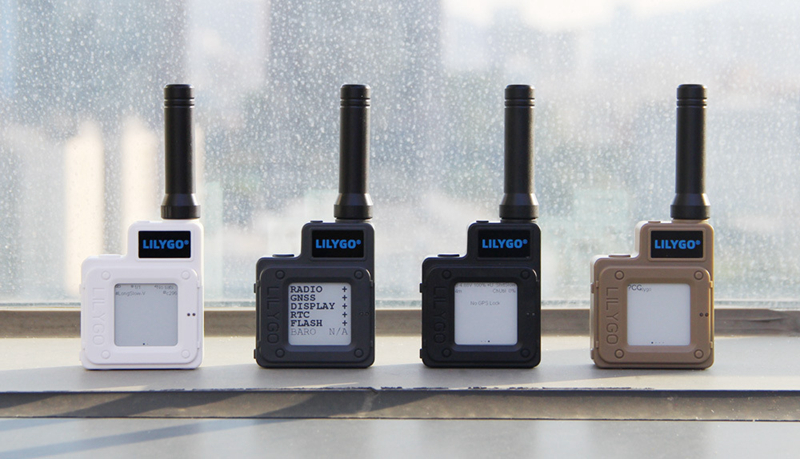

- Items in different colors will be delivered at random. Please make sure that you don't mind before purchasing. Thank you!
