LILYGO T-SIM7000JC ESP32 Development Board GPS Wifi Bluetooth Module LPWA Cat-M/Cat-NB/GPRS/EDGE
Description:
LILYGO T-SIM7070G/T-SIM7000JC is the versions of T-SIM series. The T-SIM series currently has the SIM7000G global version and the SIM7000JC Japanese version, and 4G SIM7600G version. Among them, SIM7070G, SIM7000JC and SIM7000G are compatible versions. They are only certified differently. The SIM7600G belongs to the 4G communication version.
Specifications:
Basic Information:
- MCU: ESP32
- LPWA: SIM7000JC
- SIM card: support
- TF card: support
ESP32:
- Clock frequency: 240MHz
- Flash: 4MB
- PSRAM: 4MB
- Support wireless communication protocol: Wi-Fi: 802.11 b/g/n. Bluetooth: v4.2 BR/EDR and BLE
- Serial bus communication protocol: I2C, SPI, UART, SDIO, I2S and CAN
Others:
- Form factor: LCC, 68PIN
- Size: 24 x 24 x 2.6mm/0.9 x 0.9 x 0.1"
- Supported voltage: 3.0-4.3V
- SIM card voltage: 1.8V
Power Consumption:
- PSM: 9uA
- Sleep: 1mA
- Idle: 11mA
Product Code:
https://github.com/Xinyuan-LilyGO/T-SIM

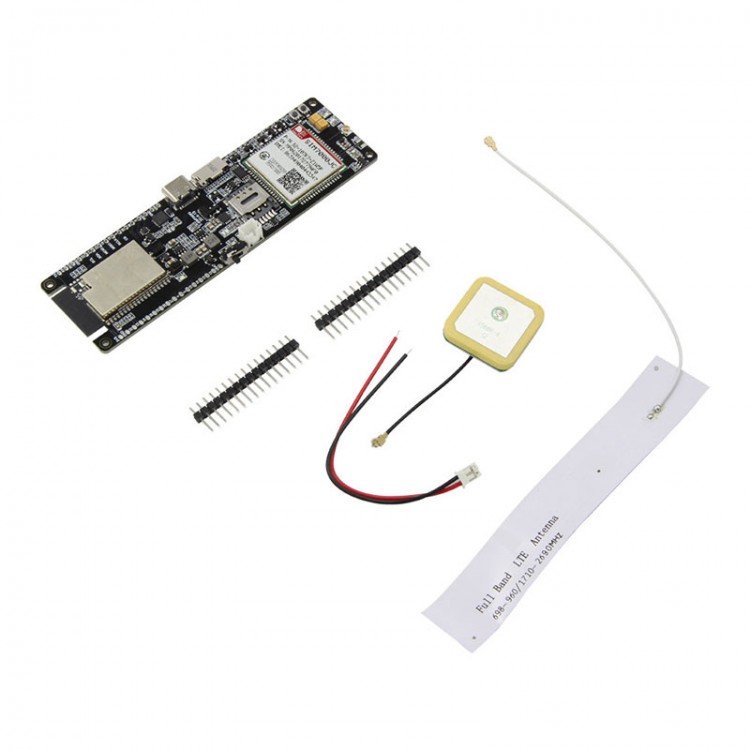

Package Included:
- 1 x T-SIM7000JC module
- 2 x Pin Headers
- 1 x Cable
- 1 x GPS antenna
- 1 x LTE antenna
Note:
- TF card and SIM card are not included.
