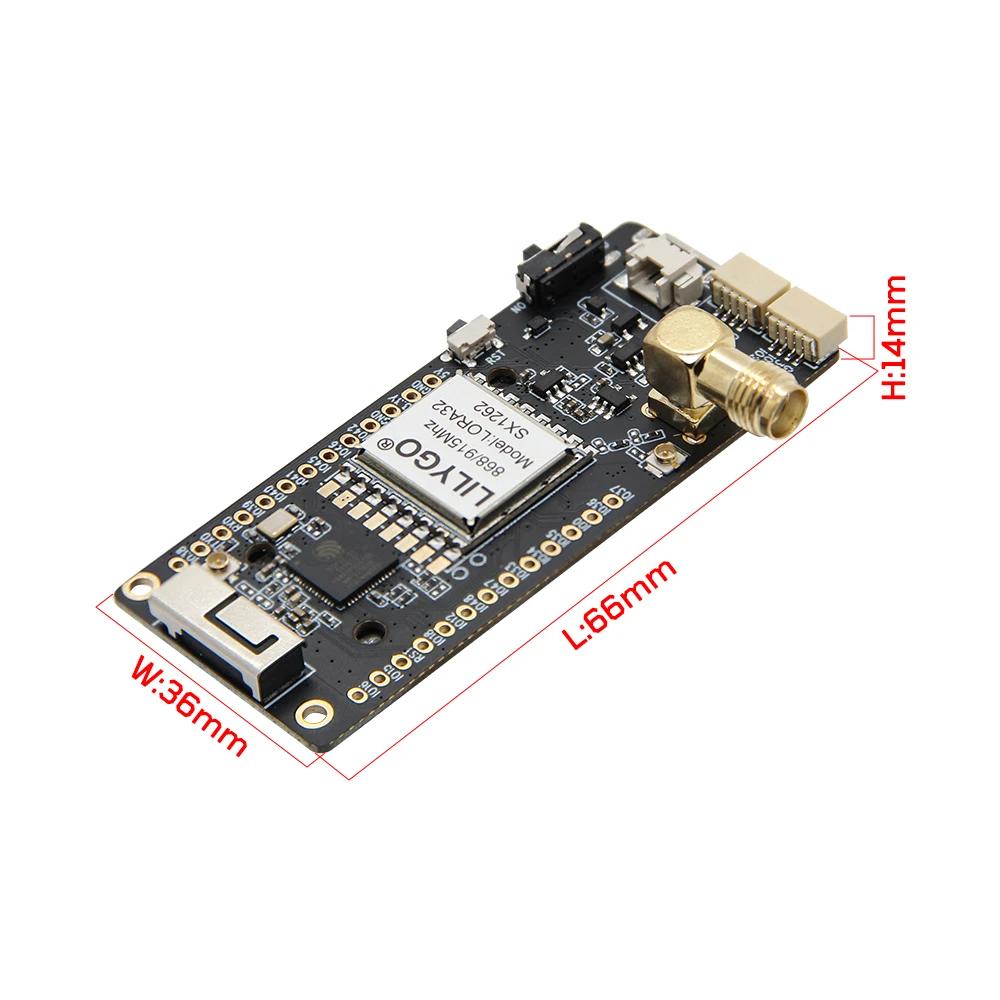

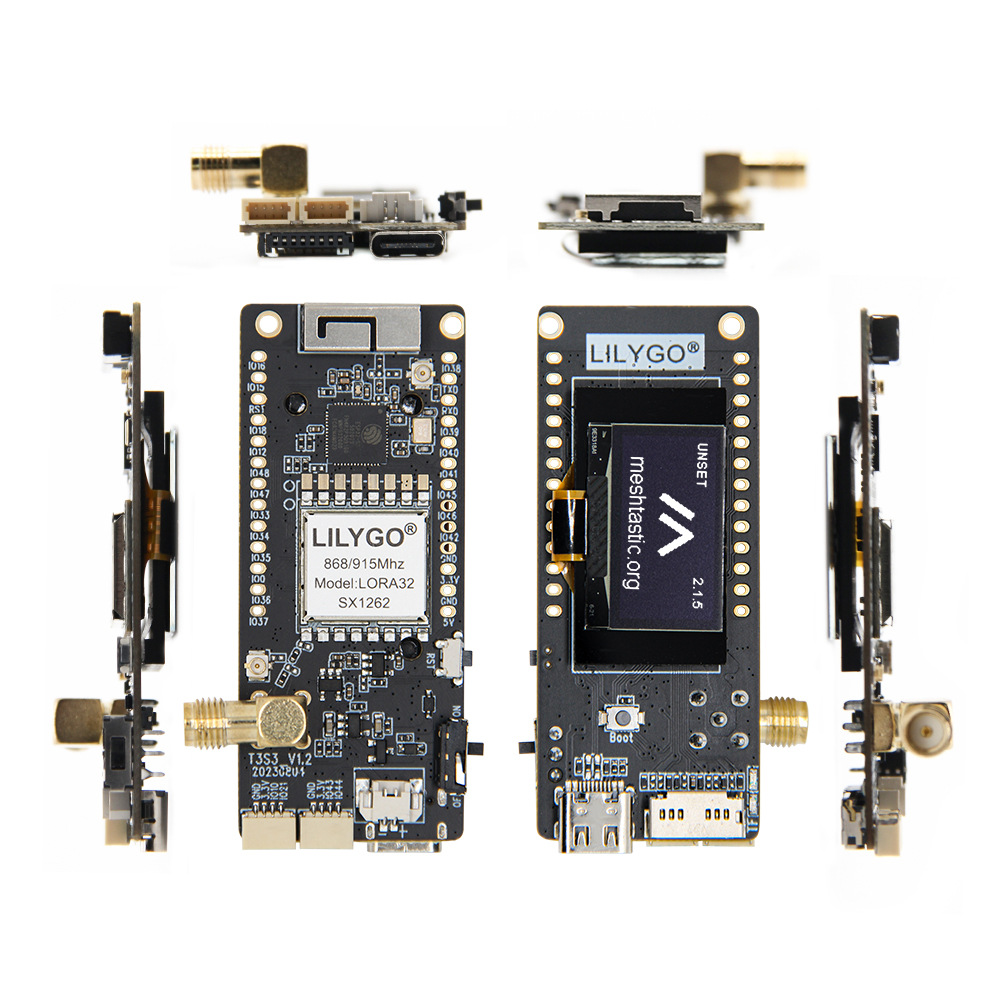

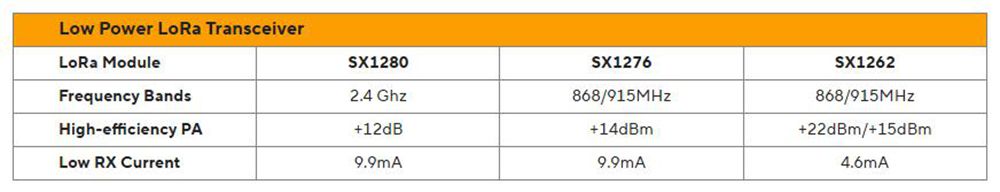

LILYGO T3S3 ESP32-S3 0.96-inch OLED Development Board SX1280 2.4GHz LoRa Transceiving Module without PA Module

LILYGO T3S3 ESP32-S3 0.96-inch OLED Development Board SX1280 2.4GHz LoRa Transceiving Module without PA Module

Features:
- Powerful LoRa Communication Performance: Equipped with the LoRa module, it delivers outstanding long-range communication performance, suitable for IoT applications requiring extended reach and low power consumption.
- Global Usability with LoRa 2.4G Frequency Band: Optional the LoRa 2.4G frequency band ensures stable operation globally, complying with different countries' and regions' spectrum regulations.
- Advanced Main Control Chip: Integrated with the ESP32-S3 main control chip, providing higher computing performance and additional interface options, enhancing device flexibility and expandability.
- TF Card Support: The device supports TF cards (Micro SD cards) for extended storage, facilitating users in storing and managing data, particularly useful in scenarios requiring large-capacity storage.
- Wide Range of Applications: Leveraging the long-range capabilities of LoRa technology, this module finds applications in various IoT scenarios, including smart agriculture, smart cities, and industrial IoT.

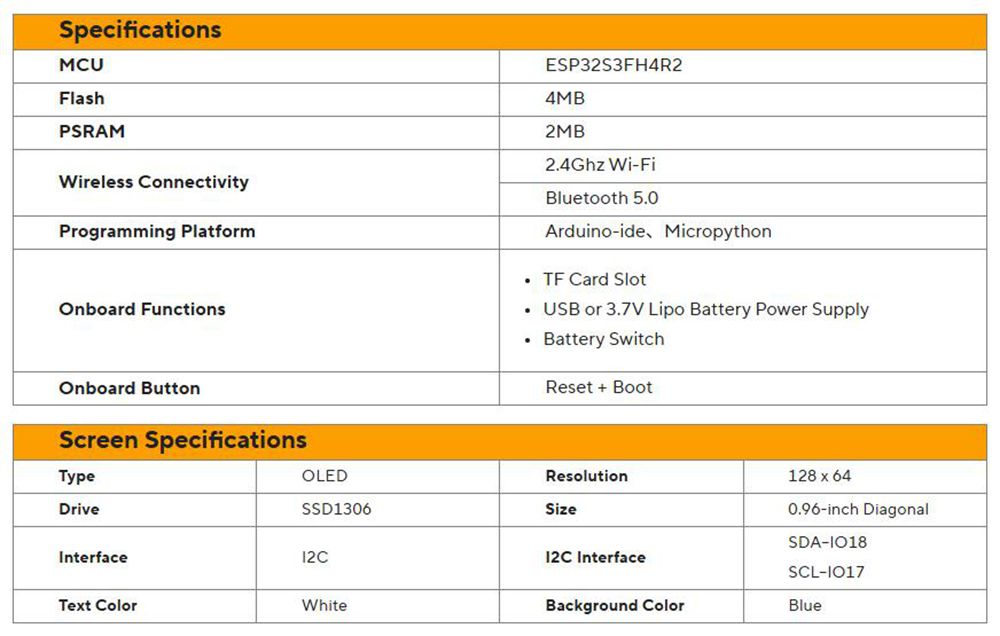

Specification:
- MCU: ESP32S3
- Flash: 4MB
- PSRAM: 2MB
- Communication protocol: reset + boot button, support TF card, built-in/external antenna can be switched
- Power supply mode: support USB power supply/3.7V lithium battery power supply, battery power supply switch

More Details:
- https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series

Package Included:
- 1 x Development Board
- 1 x Power Cable
- 2 x Pin Connectors
- 1 x Antenna
