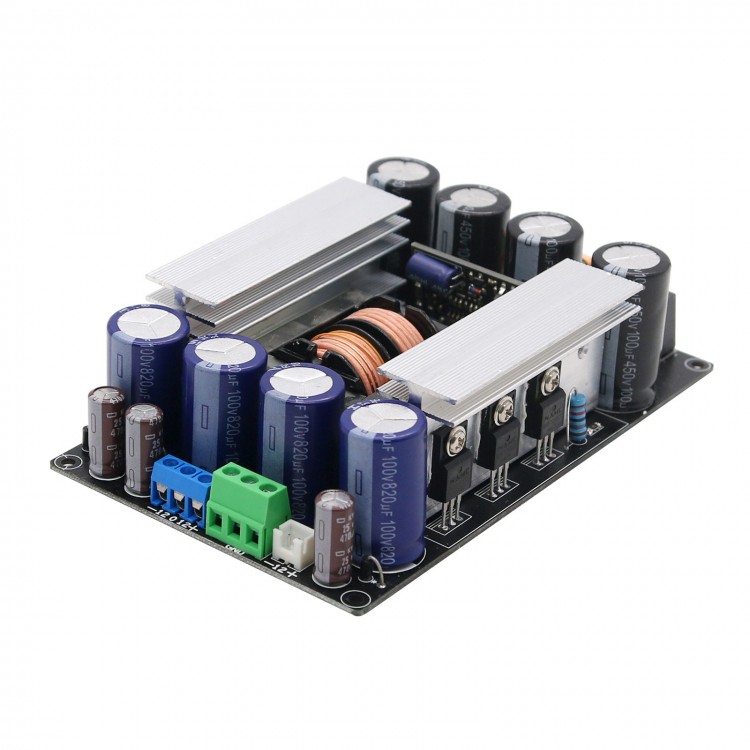

LLC Soft Switching Power Supply Module Amplifier Switching Power Supply 1000W Input AC200-240V

Availability: In stock, usually dispatched in 1 business day

  • Price:$50.96
  • Price in reward points: 510 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $49.94 $48.92 $47.39 $45.35 Contact US
Quantity:

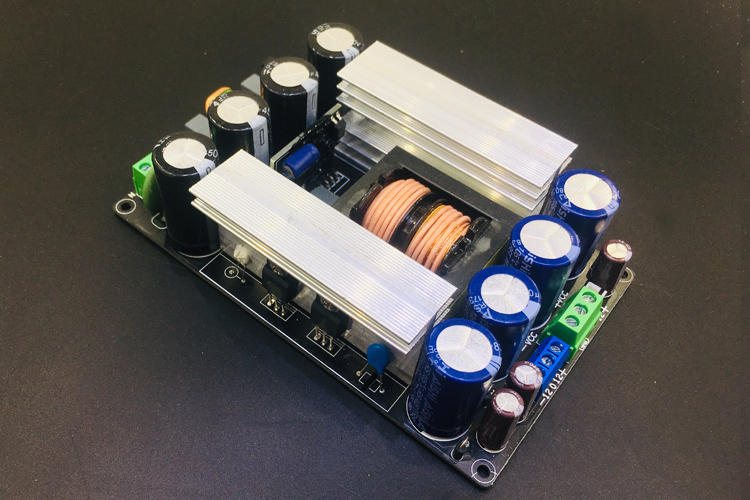

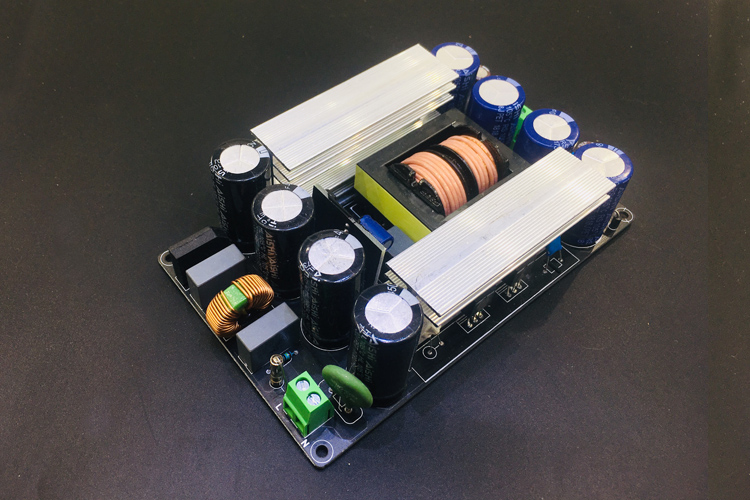

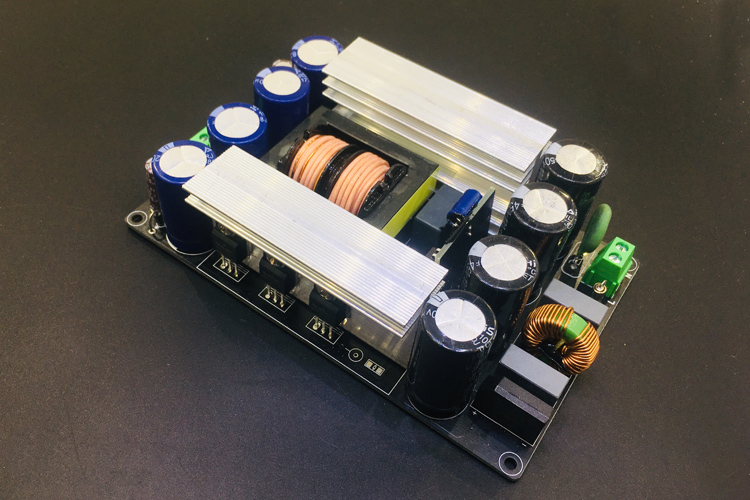

LLC Soft Switching Power Supply Module Amplifier Switching Power Supply 1000W Input AC200-240V

Specifications:

- Input voltage: AC200-240V
- Optional Main Output Voltage: ±35V, ±40V, ±45V, ±50V, ±55V, ±60V, ±70, ±80V
- Output Voltages: Main ±80V (Optional); Independent 12V; Auxiliary ±12V
- Voltage Regulation Accuracy: Main No-load ±3%; With load ±10%; Independent No-load ±15% (for AC220V input)
- Output Current: ±80V / 5.5A (Depends on the main output voltage you choose); Independent 12V/0.5A; Auxiliary ±12V/0.5A (with main voltage supply to ground)
- Continuous Power: 500W (can work continuously at 25℃)
- Rated Power: 880W (can work continuously for about 5 minutes at 25℃ ambient temperature. Cooling fan should be added for long time operation)
- Instantaneous Power: 1200W (power generated during dynamic signal impact, time is less than 100ms)
- Conversion Efficiency: Max. 95%

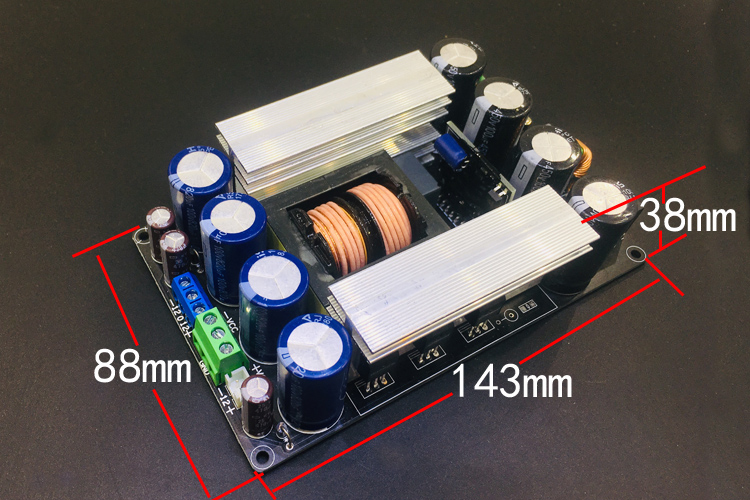

- Weight: 400g

Package Included:
- 1 x Switching Power Supply Module

Attention:
- It is a bare board with high-voltage circuit. Professional knowledge is highly recommended.
- Circuit and component grinding and epoxy resin potting treatment. Schematic diagram, PCB and technical support are not provided.
- Air cooling fan is needed for long-term high-power use. The power supply features over-temperature, over-current and short-circuit protections. It will be locked when over-current and short-circuit protections are triggered. You must disconnect your AC power supply, wait for the voltage of main filter capacitor to drop to 0V, and then restart.
- This power supply is a true LLC resonant power supply, and the resonant circuit features high-frequency sine wave. It is not an ordinary square wave switching power supply, which is very suitable for power amplifiers, with excellent performance.
- Each power supply has been tested before delivery. The board is constantly upgraded and revised, and the component circuit may be changed. Please refer to the actual items. Thank you for your understanding!

Note:
- Since the switching power supply only regulates the main voltage, the current of independent and auxiliary outputs must be less than the current of main voltage output. For example, when the current of main voltage is 10mA, the auxiliary and independent cannot withstand a load of more than 10mA.
- Please choose the main voltage type you want when purchasing. Voltage capacitors and component parameters are slightly different. Pictures are for reference only. Please refer to the material items.
- Other items in the pictures are not included, for demonstration purposes only.


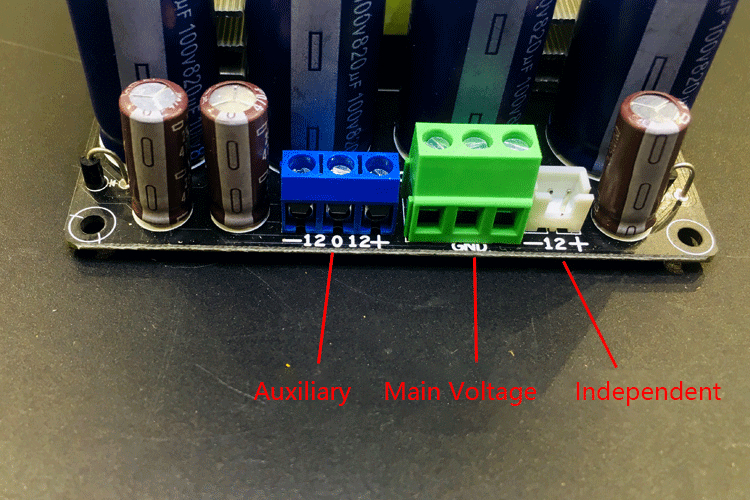

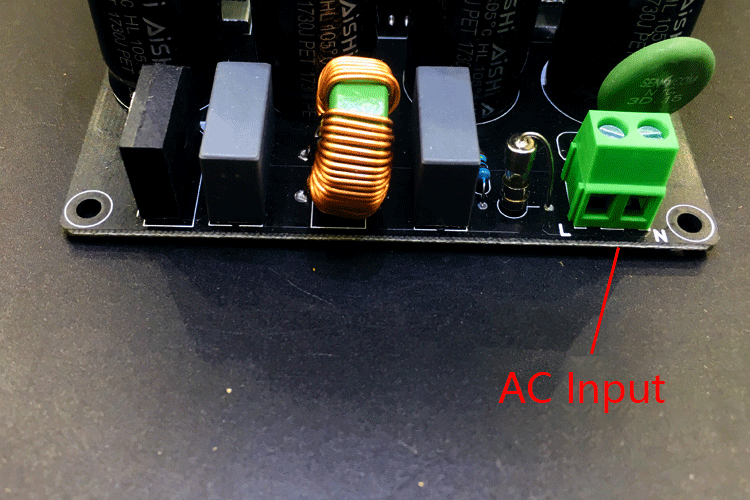

Wiring Pictures:

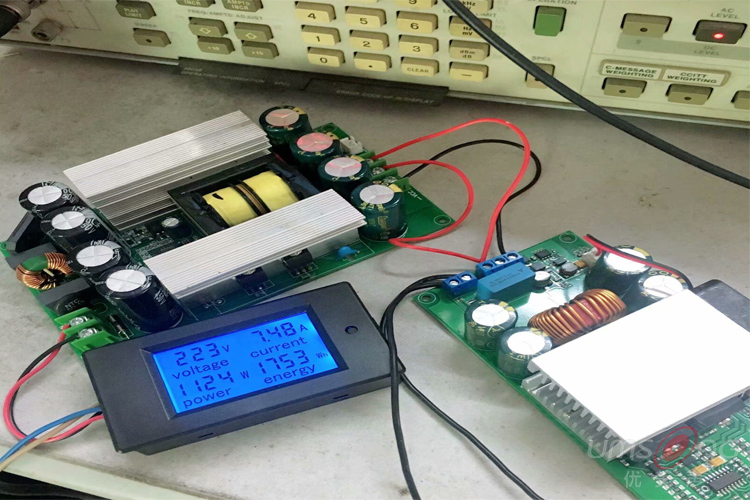

It is a test of the item with a load. A IRS2092-1000W amplifier board is used as a load. It outputs 3 ohm resistance, input is AC223V and power is 1124W.
