LM3886TF Amplifier Board Kit + Rectifier Filter Board Kit (PC Computer Desktop Household Amplifier Board)

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.22
  • Price in reward points: 372 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.48 $35.73 $34.61 $33.13 Contact US
Quantity:

LM3886TF Amplifier Board Kit + Rectifier Filter Board Kit (PC Computer Desktop Household Amplifier Board)

Introduction:
- LM3886 is a single channel audio amplifier IC of high performance produced by  America National Semiconductor (NS) Company, its maximum continuous output power can be up to 60W, up to now, it has been popular among a large number of audio enthusiasts.

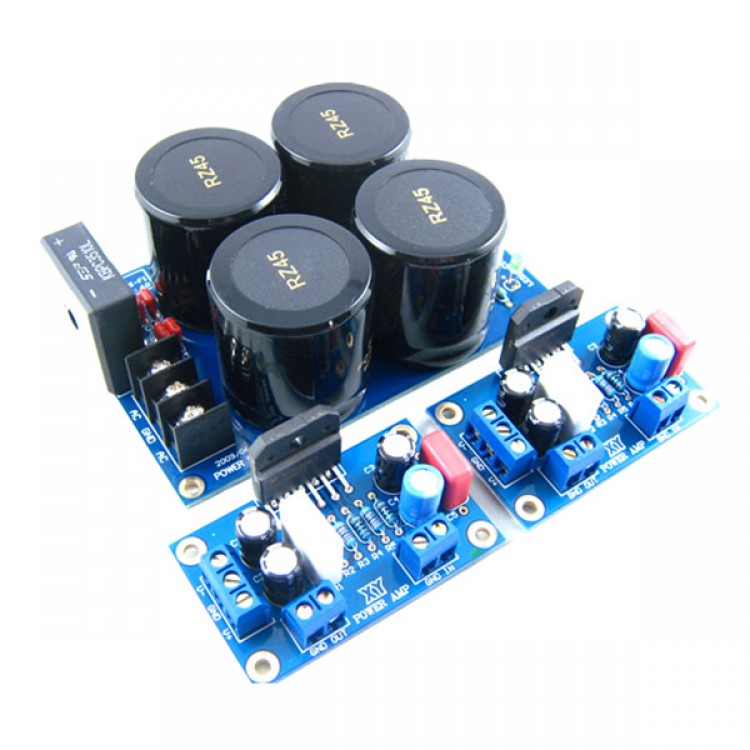

- This amplifier adopts power board and amplifier board seperated-design, each channel of the power amplifier is on a board, each set contains a power board and two single-channel amplifier board, amplifier board can be used in parallel.
- All the components on the board are picked out carefully ,
- Filter adopts 4 small 10000U/50V NOVER AUDIO gold capacitance.
- 35A high current bridge rectifier, which can meet the power amplifier board demand of full loading for a long time.
- All metal film resistor copper foot 1% resistance.
- Other capacitors using WIMA, Philips, Manish Kang, NC and other major brands, LM3886TF is half the country original authentic. Circuit board is double-sided board, reasonable wiring, attracting appearance

Power supply board size:
- Length 109mm/
- Width 71mm/
- High 38mm (top to bottom of the capacitor circuit board, not including the element feet)
- dimensions: length 61mm/ width 37mm

Description:
- Power Input:28V-0-28V
- Single IC MAX:68W˙
- Dimensions of Power supply PCB (x1) : 71x109x1.6mm
- Dimensions of Power amp PCB (x2) : 36x60x1.6mm

Package includes:
- 1 x power board
- 2 x amplifier board
