Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $62.29 | $61.02 | $59.11 | $56.57 | Contact US |

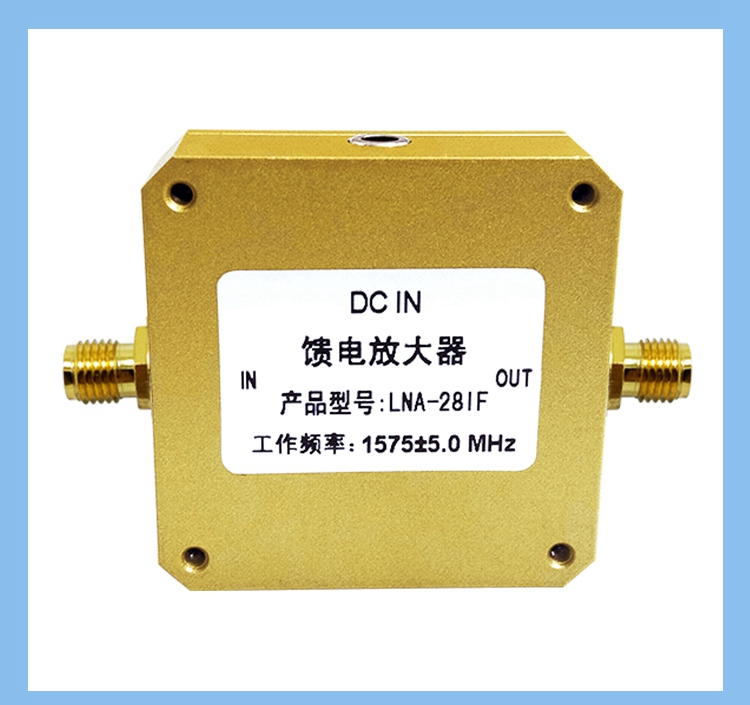

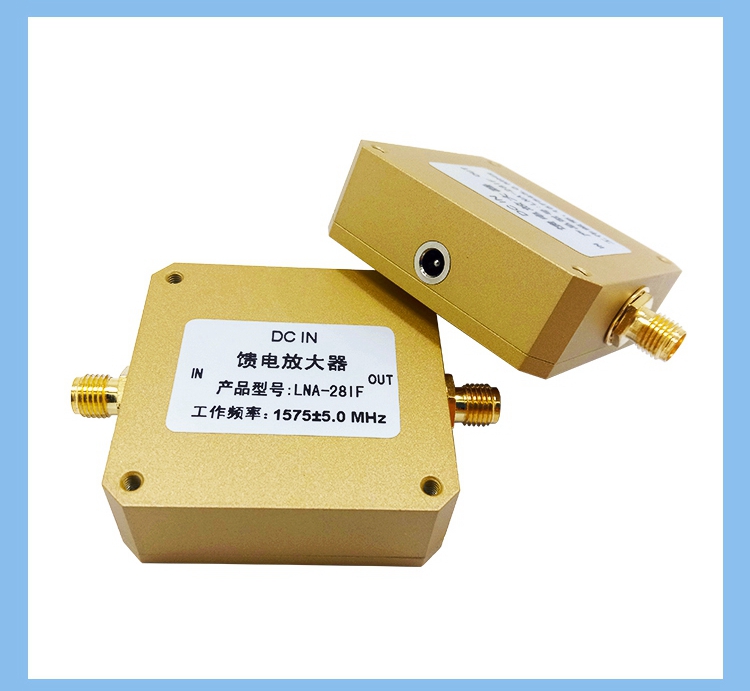

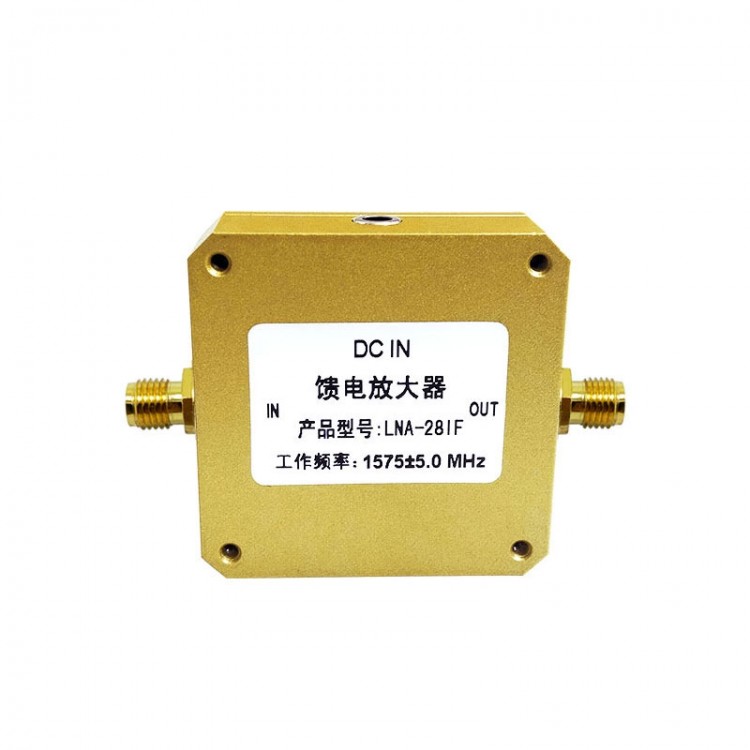

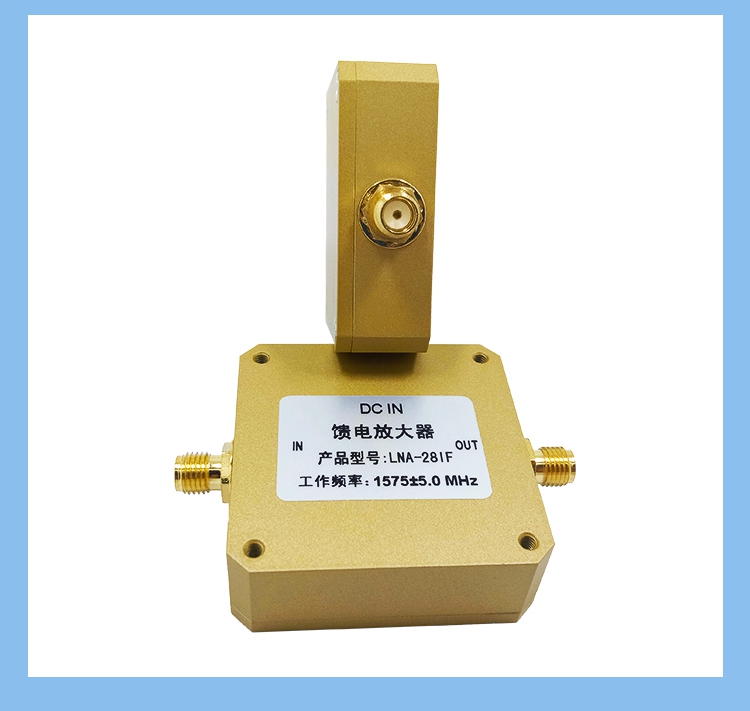

LNA-28IF Low Noise Amplifier High Quality and High Gain GPS Feeding Amplifier with SMA-MF Connector
Specification:
- Working frequency: 1575±5.0MHz
- Gain: 28±1.0dB
- SWR: ≤1.6
- Impedance: 50ohm
- Connector type: SMA-MF
- Working voltage: 5V
- Working current: ≤25mA
- Working temperature: -40℃ ~ +50℃

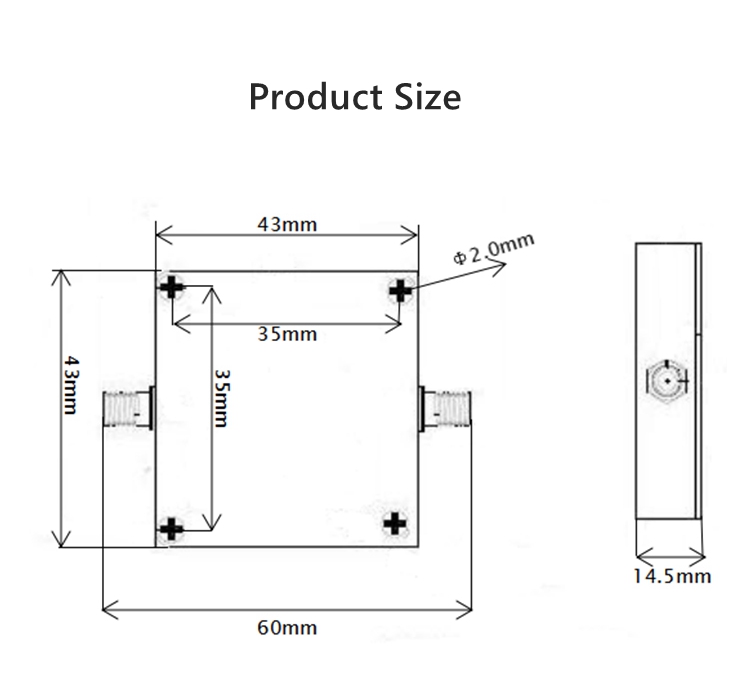

- Size: 60 x 43 x 14.5mm
- Weight: 60g
Package Included:
- 1 x Amplifier
