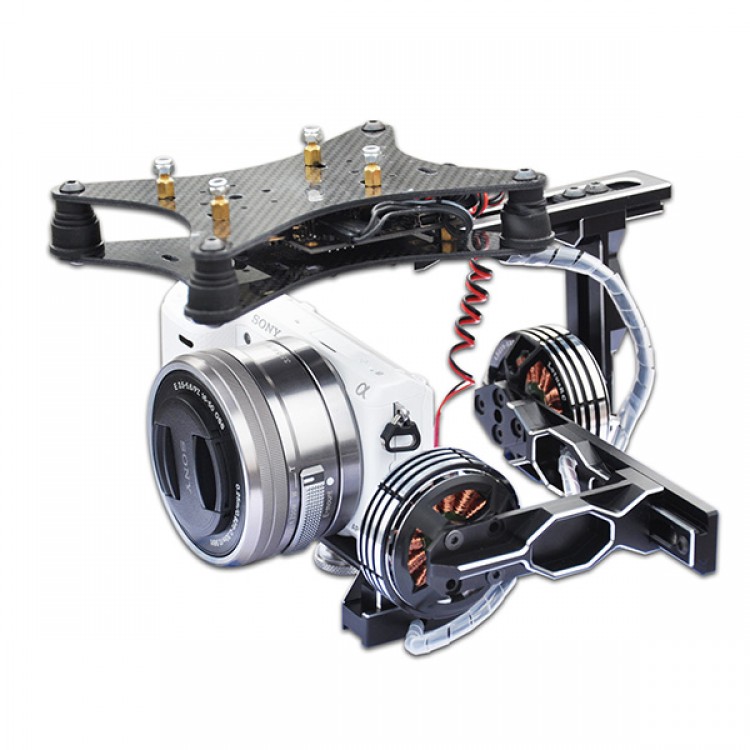

Lotus PTZ-E Two-axis Brushless Gimbal Camera Mount for ILDC Camera NEX-5N/5R/5T FPV Aerial Photography

Features:
- Aluminum alloy material, single arm frame, light weight and firm
- Brushless motor drive, quick response
- With camera gravity adjustment function, suit for different camera lens
- Active stability technology, more precious compensation
- Could upgrade to three-axis gimbal(need extra 3 axis motor and gimbal controller)

Specification:
- Support sensor parameter adjustment and software three-dimension display
- Support rock speed ratio mode and position mode
- Support normal receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
- Support PPM/PCM/2.4G remote control system
- Work voltage: DC7.4V-14.8V(11.1V, 3S)
- Work current: 200mA-2A
- Work temperature: -15C~65C
- Processor: MEGA328P
- Sensor: MPU6050
- Max.angle speed: 2000C
- Max.acceleration: 16g
- Control frequency: 1600Hz
- Motor drive frequency: 8/32Khz
- Control precision: 0.1C
- Control angle range: -45C~45C(roll); -90C~90C
- Software: Russian ALEXMOS offical software, could upgrade to newest firmware anytime
- Cameras support: SONY NEX-5n, 5r, 5t
- Lens support: 16F/2.8 fixed focus wide angle, 16~55F zoom lens(not support zoom shooting)

User manual download

Package Included:
- 1* PTZ-E Two axis brushless ILDC gimbal
- 2 * Brushless Motor
- 1* Brushless gimbal driver
