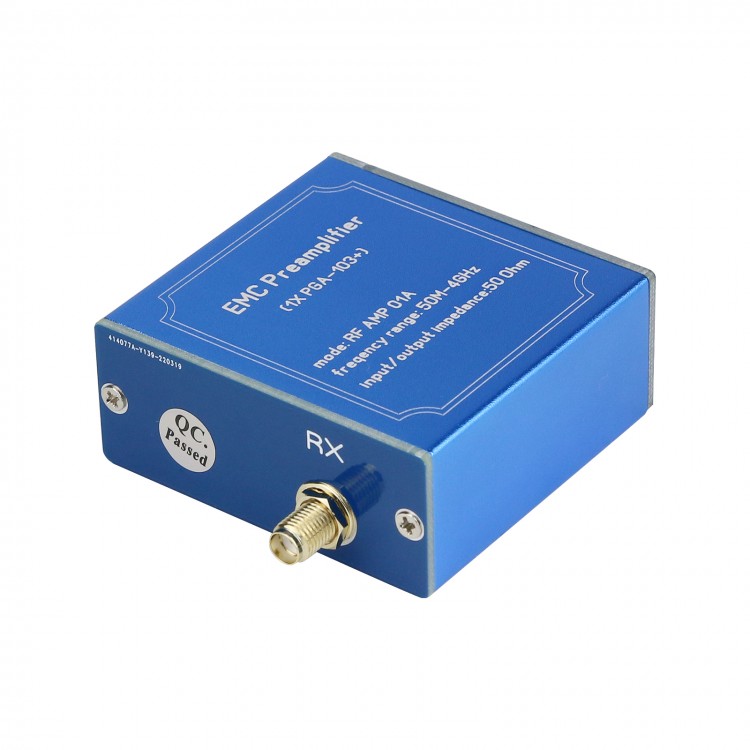

Low Noise Amplifier LNA EMC Preamplifier (1X PGA-103+) EMC EMI Magnetic Field Probe Signal Amplifier
Description:
This is a wideband LNA with very low noise figure. It uses PGA-103+ chip for Mini-Circuits. It is a modern new generation of ultra-linear low noise monolithic amplifiers with ultra-high IP3, high dynamic range and high output power with extremely low noise figure. This ensures maximum dynamic range and linearity at the lowest possible noise figure.
28 MHz = G 22 dB -NF = 0.70 dB
50 MHz = G 25.7 dB -NF = 0.55 dB
145 MHz = G 25 dB -NF = 0.50 dB
435 MHz = G 20.4 dB -NF = 0.62 dB
1090 MHz = G 14 dB -NF = 0.80 dB
1296 MHz = G 13.2 dB -NF = 0.85 dB
2320 MHz = G 7.5 dB -NF = 1.7 dB
Specifications:
1. Adopt PGA-103+ chip design
2. Operating frequency: 50M-4GHz
3. Power supply: DC9-15V
4. Net weight: 63g
5. DC socket: DC-022B inner core 2.0 round needle
5. Connector: 2*SMA female connector
Package Included:
- 1 x EMC Preamplifier
