LPMS-B2 9-Axis IMU Sensor Inertial Measurement Unit AHRS with Bluetooth Classic and BLE Connectivity

Description:

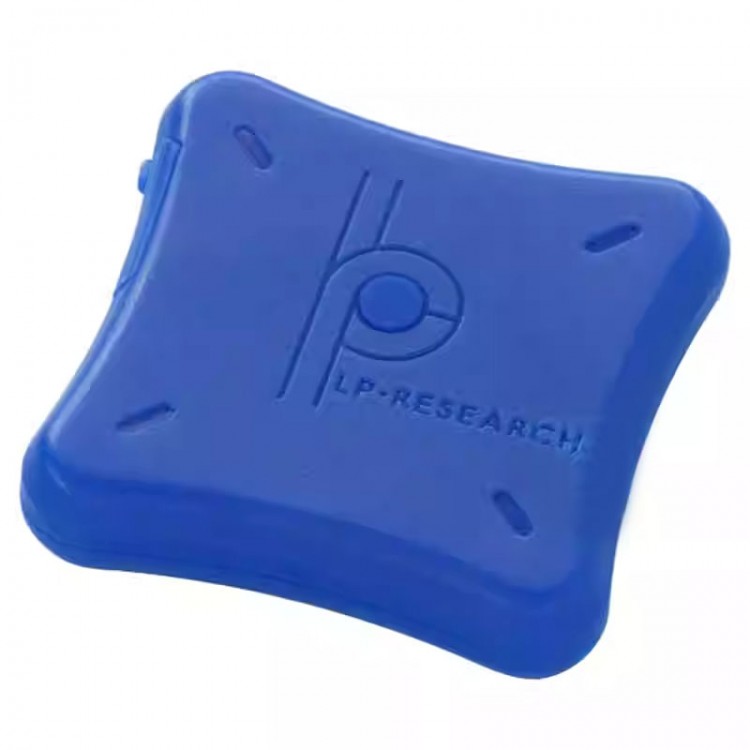

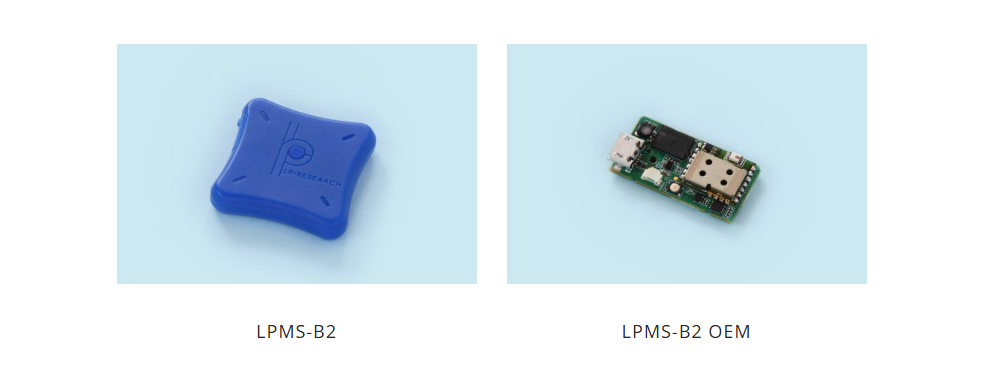

The LP-Research Motion Sensor Bluetooth version 2 (LPMS-B2) series is a 9-axis Bluetooth inertial measurement unit (IMU) / attitude and heading reference system (AHRS). These units are very versatile, performing accurate, high speed orientation and relative displacement measurements.

Through the use of three different MEMS sensors (3-axis gyroscope, 3-axis accelerometer and 3-axis magnetometer) drift-free, high-speed orientation data around all three axes is achieved. Additionally temperature and barometric pressure sensors allow accurate determination of the unit's altitude.

LPMS-B2 series communicates with a host system via a Bluetooth Classic 2.1 or Low Energy 4.1 connection. Multiple sensor units can be used simultaneously with one host system (7 units maximum for Windows/Android). The series is capable of data transmission rates of up to 400Hz.

The sensor unit contains a 32-bit digital signal processor capable of running all calculations on-board in real-time. For more information on our sensor fusion method please refer to the IMU core description.

Package Included:
- 1 x LPMS-B2 sensor
- 1 x User guide card
- 1 x Data cable
- 1 x Warranty card

Packaging Details:
- Weight: 0.3kg
