LT1803 LDO Linear Voltage Regulator Module LDO Module Dual Tube 10A Single Tube 5A

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.45
  • Price in reward points: 195 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.06 $18.67 $18.09 $17.31 Contact US
Quantity:
Buy it now Add cart

You might like

Black LHY AS8 Pro 115V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

Black LHY AS8 Pro 115V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

$1,522.98

(0)
Silvery LHY AS8 Pro 115V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

Silvery LHY AS8 Pro 115V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

$1,522.98

(0)
USB DAC Headphone Preamplifier Tube Decoder DAC Musical Paradise MP-D2 MK3 Deluxe (Dual ES9038PRO Version)

USB DAC Headphone Preamplifier Tube Decoder DAC Musical Paradise MP-D2 MK3 Deluxe (Dual ES9038PRO Version)

$1,150.11

(0)
Black LHY AS8 Pro 230V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

Black LHY AS8 Pro 230V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

$1,522.98

(0)
Silvery LHY AS8 Pro 230V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

Silvery LHY AS8 Pro 230V Audio HiFi Switch Ethernet OCXO Clock 2.5Gbps Main Switch +1Gbps Audio Isolation

$1,522.98

(0)
USB DAC Headphone Preamplifier Tube DAC Decoder Musical Paradise MP-D2 MK3 Deluxe (Dual AK4497 Version)

USB DAC Headphone Preamplifier Tube DAC Decoder Musical Paradise MP-D2 MK3 Deluxe (Dual AK4497 Version)

$1,147.28

(0)
USB DAC Headphone Preamplifier Tube DAC Decoder Musical Paradise MP-D2 MK3 Deluxe (Dual AK4490 Version)

USB DAC Headphone Preamplifier Tube DAC Decoder Musical Paradise MP-D2 MK3 Deluxe (Dual AK4490 Version)

$986.54

(0)
LHY AUDIO LPS-A6 1st Generation 230V (for Sedlbauer 30VA Transformer) Linear Power Supply for Eversolo DMP-A6

LHY AUDIO LPS-A6 1st Generation 230V (for Sedlbauer 30VA Transformer) Linear Power Supply for Eversolo DMP-A6

$227.53

(0)

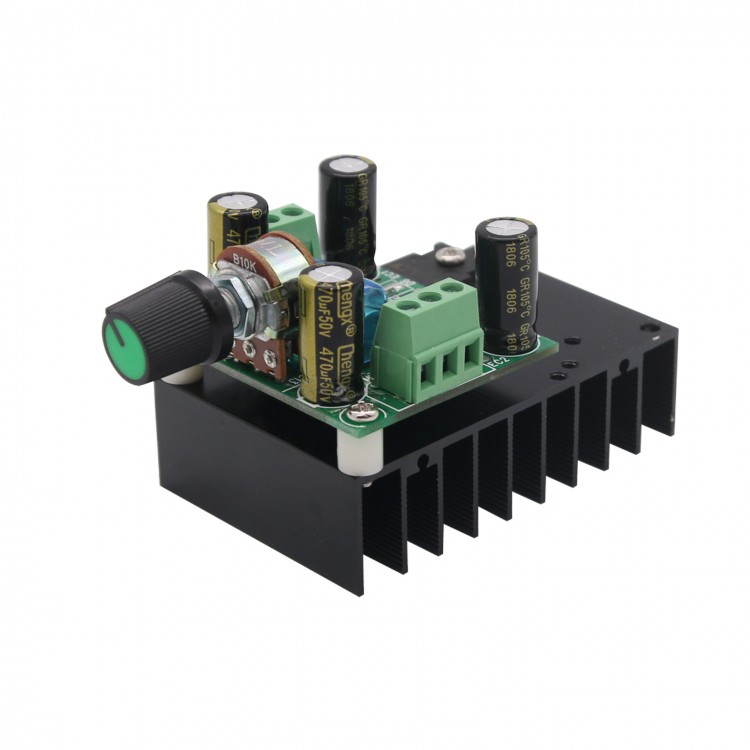

LT1803 LDO Linear Voltage Regulator Module LDO Module Dual Tube 10A Single Tube 5A


Specification：
- Current:Dual Tube 10A Single Tube 5A
- Finished Size: 95mm × 35mm × 50mm
- DC: 2.5-38 V;
- DC output: 2.5 to 35 volts;
- Maximum current: single tube 7A, twin-tube 14A;
- EN control voltage, 3.3-38V
- The minimum differential input and output: 2.5 V;
- Dedicated high-frequency low resistance filter capacitor: ≤50MV.
- This is a linear IC, power consumption is proportional to the heat with pressure.
- LT1083 does not apply to large voltage difference of work, input and output preferably within 10V, 3-5V best, maximum pressure must not exceed 20V

This Product without heatsink,If you want to increase the heat sink, please contact us to pay the extra fee .
