Feature:
- Attribute: RF frequency domain analysis tool
- Interface: usb
- Power supply: usb
- Standby current: ≤100mA
- Sweep current: ≤350mA
- Sweep bandwidth: 33mHz---4400mHz
- Turn on the tracking source output bandwidth 33mhz---3000mhz
- Sweep step: ≥ 33~68.75mHz/125Hz, 68.75~137.5mHz/250Hz, 137.5~275mHz/500Hz, 275~550mHz/1kHz, 550~1100mHz/2kHz, 1100~2200mHz/4kHz, 2200~4400mHz/8kHz
- Sweep speed: ≥800 points / sec
- Sweep dynamic log ratio: > 50dB
- Point frequency or sweep output power: ≈0 dBm
- Input detection: ≤10dbm
- Background: ≈ -60dBm
- Software used on the computer side: NWT4.11.09 version
- Computer operating system: winxp, win7, win10;
- Provide software and instructions for use. >>>>>>>Click here to open<<<<<<<

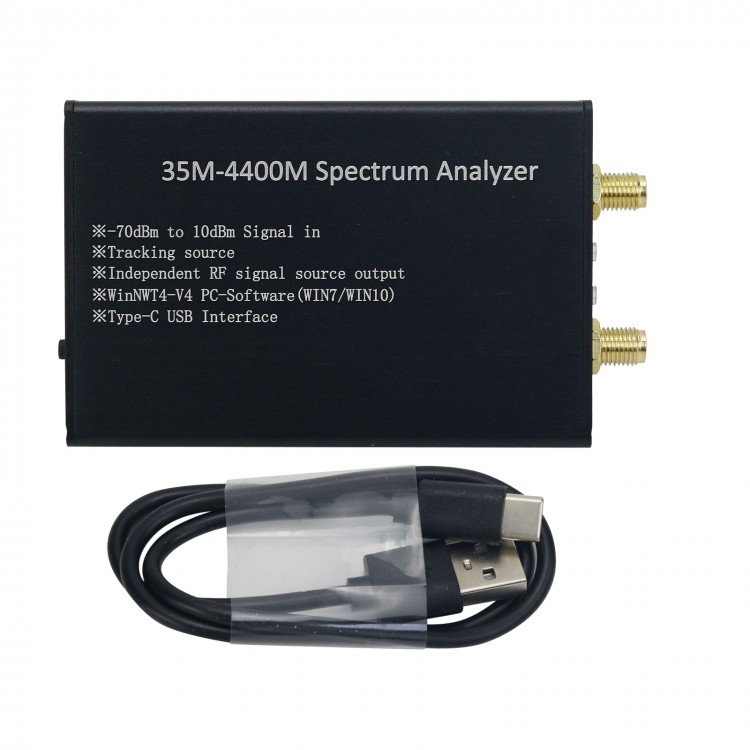

Package includes:
- 1 x Spectrum Analyzer
