Product Description:
- RF reflection bridge is mainly used for a variety of RF devices (especially common antenna) measuring the reflection characteristics,is both affordable and a very good performance weapon,reflection of the bridge is the heart of all RF vector network analyzer.If you only have a spectrum analyzer (preferably with a trace source) or radio integrated tester or scanner,as long as with the baby present is equivalent to immediately have the most commonly used functions of the network analyzer (VSWR test or watching callback loss).
- For a variety of radio enthusiasts,companies,universities and research institutes VSWR measurement passive devices,especially measuring antenna,commissioning small signal amplifiers,filters,and so on.It can be a good fit spectrum analysis and comprehensive measurement company RIGOL DSA815 Spectrum Analyzer,HP8590E,HP8591E,HP8560E,R3361A with tracking and other sources.Because the output power source tracking instruments are generally adjustable,these instruments can be added after this bridge supporting the commissioning of various input matching small-signal RF amplifier circuit yourself under real small signal inputs can be designed to measure the state of the input matching Happening.
- If the spectrum analyzer with tracking your hands do not have to be the source of the RF signal with additional independent source to achieve VSWR measurement,each time a little trouble adjusting signal source and spectrum analyzer test only one frequency point,multi-test after a few points can make a curve,still you can replace the sweep trace the source.
- It is particularly suitable for debugging and testing short-wave antenna,FM radio antenna,UV walkie-talkie antenna,315MHZ,433MHZ remote antenna,800MHZ 900MHZ mobile communication antennas,WIFI,Bluetooth 2.4GHZ antenna.

Indicators:
- Operating frequency: 500KHZ to 2500MHZ (wide operating frequency range)
- Orientation: 40DB typical (500KHZ to 30MHZ directivity 30dB,30MHZ to 2000MHZ directivity 40dB,2000MHZ to 30MHZ directivity 27dB)
- Insertion loss: 13dB (RF input port to port reflection test)
- Port VSWR: Less than 1.3
- Maximum input RF power: 20dBm

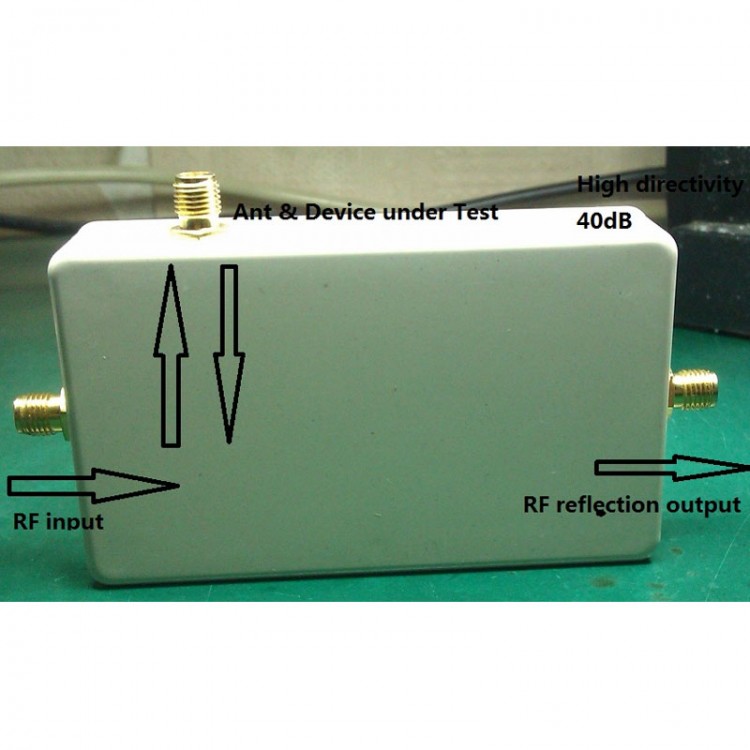

- RF interface: three ports are SMA female (outer screw hole golden thread small head)

Although the housing is plastic shell,but inside there is a good magnetic shielding,molded case to be good even complete shielding,the shielding performance of the bridge without any defects,while making the product itself lightweight.

Package List:
- 1 x Network Analyzer
