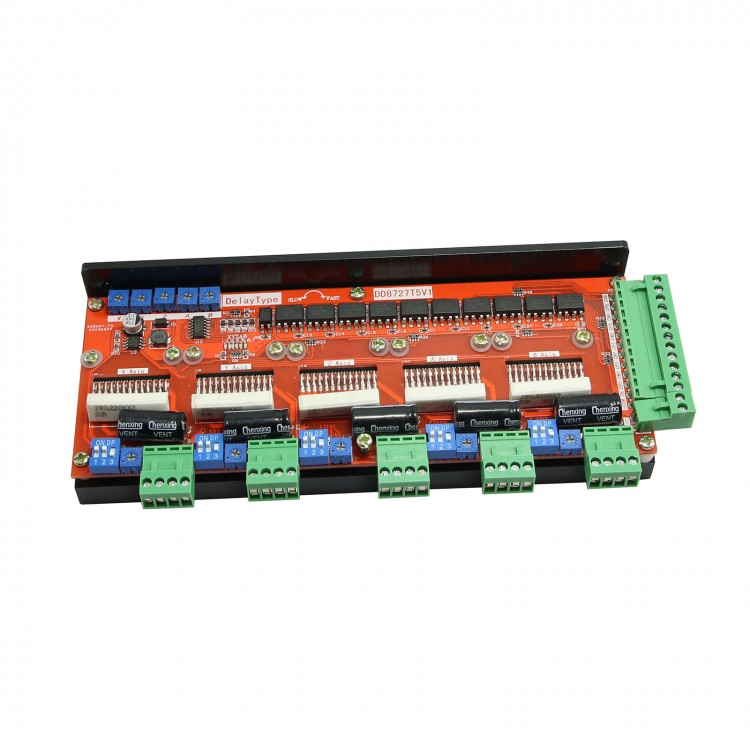

LV8727 5 axis 4.2A Stepper Motor Driver Controller Board 128 Segment CNC Engraving Machine Drive
Descriptions:
- Axis:5
- New type of dual polarity constant current chopper technology
- With fan interface
- With limit switch interface
- Main axis relay output
- With automatic half flow function
- The input pulse frequency maximum up to 1M KHZ
- Support 8 kinds of subdivision choice, the highest support 128 segmentation
- With high speed photoelectric coupler and isolated DC/DC power
- With 0.6A, 1.2A, 1.8A, 2.4A, 3.0A, 3.6A, 4.2A, 4.8 A(peak) 8 section adjustable current function
- The standard parallel port interface, support MACH2 MACH3, KCAM4 series software, etc
- Flexible configuration, convenient and simple using the interface board and drive board 12 - 36 VDC power supply, and can be Shared or independent power supply 5v
Software download
PDF user manual download
