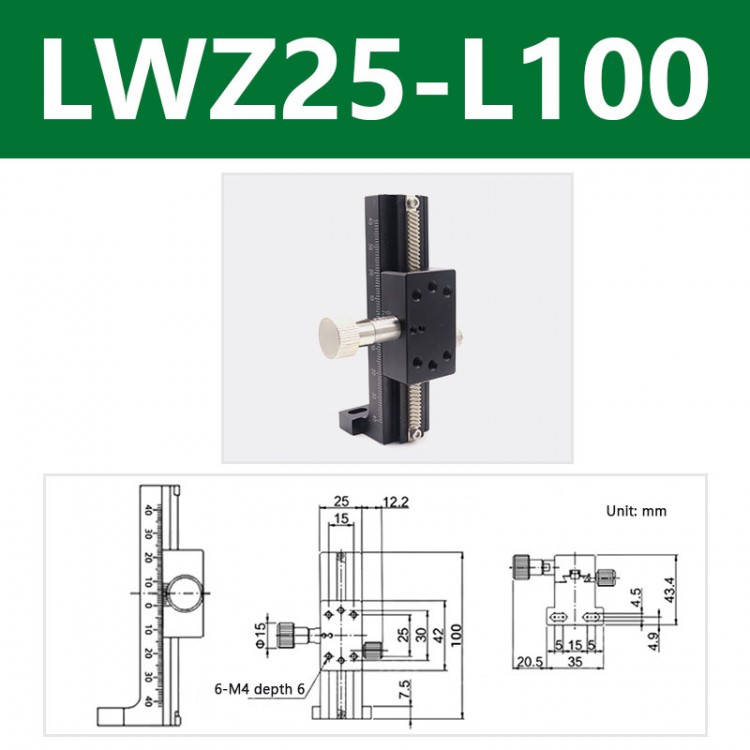

• LWZ25-L100 Z Axis Fine-Tuning Sliding Table Vertical Lifting Manual Sliding Table Travel 80MM/3.1"

LWZ25-L100 Z Axis Fine-Tuning Sliding Table Vertical Lifting Manual Sliding Table Travel 80MM/3.1"

Availability: In stock, usually dispatched in 1 business day

  • Price:$52.28
  • Price in reward points: 523 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $51.23 $50.19 $48.62 $46.53 Contact US
Quantity:

LWZ25-L100 Z Axis Fine-Tuning Sliding Table Vertical Lifting Manual Sliding Table Travel 80MM/3.1"

Features:

- Adjustable screw: adjust the slider's position and aluminum alloy enables precise and stable performance and long service life
- Slider: Made of aluminum alloy and hard anodized process
- Rack: enables fast movement. The rack adopts copper nickel plating process, which is corrosion-resistant, oxidation-resistant and more durable
- Z-axis movement and vertical lifting: The load volume on the platform is too large to affect the accuracy of the displacement table, so please ensure that the contact surface does not exceed 1.5 times the sliding table
- Designed with screw holes: main material, aluminum alloy, makes it light weight and enables easy installation
- Micrometer: High-quality alloy micrometer head boasts clear scale ruler and wear resistance
- Laser engraving: minimum scale 0.01mm. Clear, durable, and wear-resistant, featuring more accurate measurement and small error
- Applicable industries: electronics, home appliances, automobiles, medical, smart phones, semiconductors, etc.

Specifications:
- Table top size: 25 x 42mm/1 x 1.7"
- Travel: 80mm/3.1"
- Parallelism: 0.05mm/0.002"
- Overall Length: 100mm/3.9"
- Load: 29.4N (3kgf)
- Weight: 0.17kg/0.4lb

Package Included:
- 1 x Sliding Table
