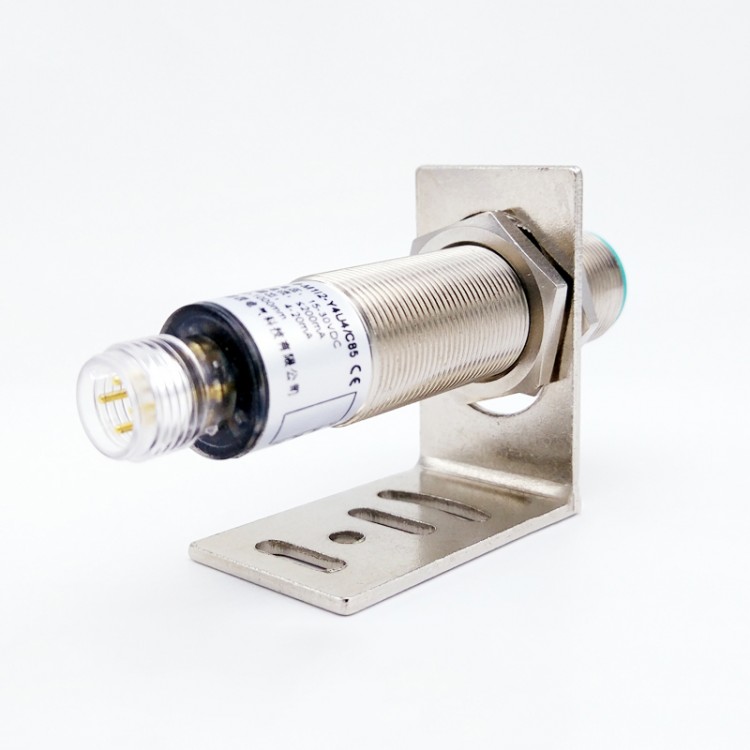

M18 0.05-1M Ultrasonic Distance Sensor Ultrasonic Proximity Sensor Output Switch Signal

Features:

- Built with Intelligent Chip
- Threaded Design
- Quality Wires
- Appealing Exterior Design
- Output Switch Signal

Basic Parameters:

- Item Name: Ultrasonic Distance Sensor
- Dead Zone: 50mm
- Resolution: 1mm
- Standard Measured Board: 100 x 100mm
- Ultrasonic Frequency: 200KHz
- Sensor Frequency: 8-16Hz
- With Temperature Compensation: Yes
- IP Level: IP 67
- Power Consumption: 20mA
- Measurement Range: Adjustable 50 to 1000mm (0.05 to 1M)
- Accuracy: 0.1%
- Working Temperature: -20 to 60℃
- Storage Temperature: -40 to 70℃
- Output: Switch Signal

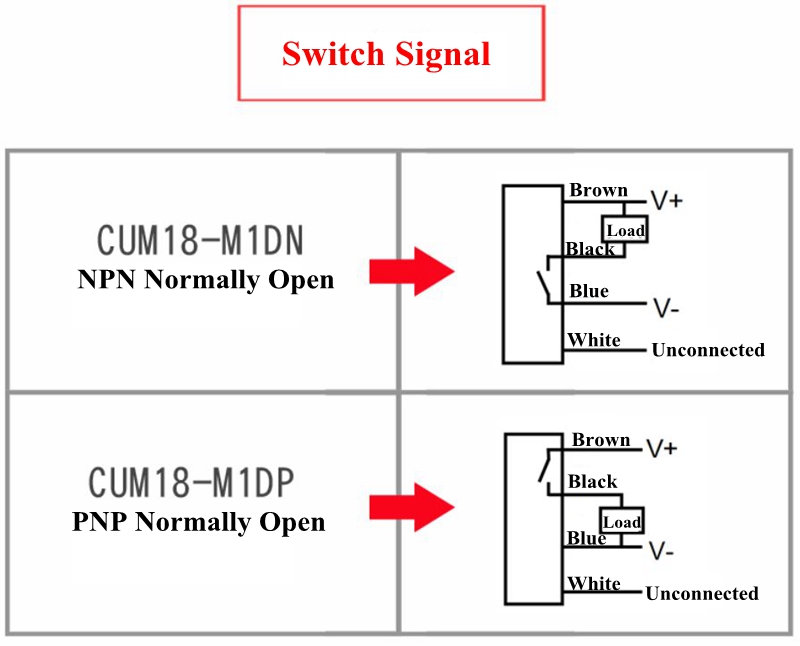

Optional Types:
1.NPN Normally Open
2.PNP Normally Open

Package Included:
- 1 x Ultrasonic Distance Sensor

Cautions:
- Please connect its metal housing with the ground while using, increasing its capacity to against electromagnet interference. When it is connected to devices with strong electrostatic interaction, please apply a sensor with plastic housing (optional) to avoid damage.
- Please not use this sensor in an environment with strong acid, strong alkali, strong electromagnetic interference, or strong vibration.
- For your safety, please not use it in a vacuum or explosion-proof zone.

Note:
- Optional Types: NPN Normally Open; PNP Normally Open. Please tell us the type you want when purchasing. Thank you!
- This ultrasonic sensor for switch signal can be used to test if there is a limit on tested objects, not for displacement detection.
- Please take off the black protective cover before using.
- Technical parameters, exterior design and dimensions can be customized. If needed, please contact us for details.
