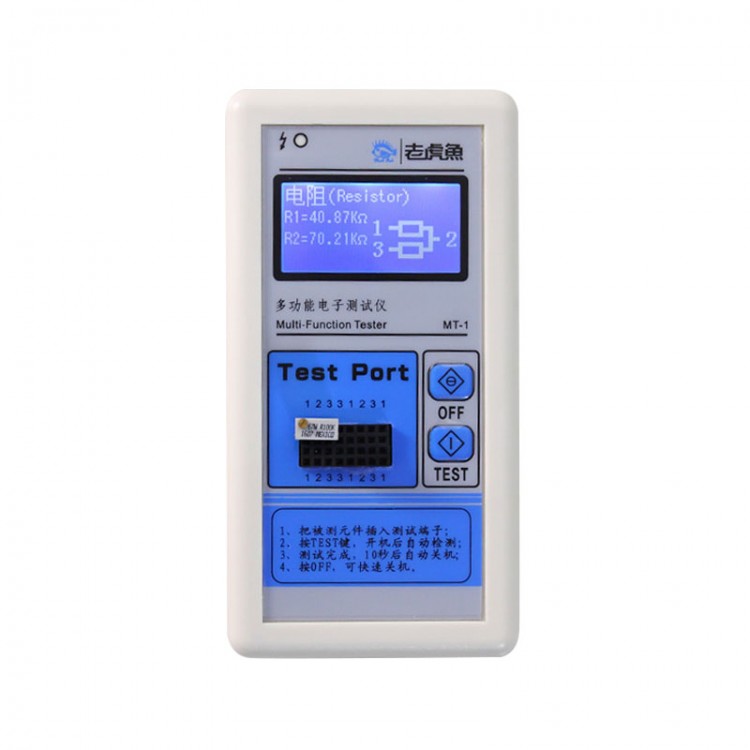

M328 Transistor Tester LCR Capacitor ESR Dot Matrix Graphics w/ 128*64 Chinese-English LCD Display

M328 Transistor Tester LCR Capacitor ESR Dot Matrix Graphics w/ 128*64 Chinese-English LCD Display

Testing Range:
- Transistor Testing Range: Less than 2pcs (included 2pcs) transistors which are made up of PN junction. There is not any other resistance components in the interior.
- Resistance Testing Range: 0.5Ω-50MΩ(Accuracy: 0.01Ω)
- Inductance Testing Range: 0.01mH-20H (Accuracy: 0.01mH)
- Capacitance Testing Range: 25pF - 100000uF (Accuracy: 1pF)
- Capacitor ESR: 2uF-50mF (Accuracy: 0.01Ω)

Specifications:
- Item Name: M328 Multifunctional Tester
- Model No.: MT-1
- Condition: Brand New
- Power Supply: DC3V
- Display: 128*64 (Chinese-English LCD Screen)
- Process: SMD chip, reflow soldering finished product (to avoid failure caused by kit soldering)

Basic Functions:
- Detect voltage when it turns on
- Turn off quickly with OFF button
- Power consumption shutdown mode
- One-button to begin measurement after being powered on
- Measure MOSFET's gate threshold voltage and gate capacitance
- The pins of your component are automatically tested and displayed on LCD screen
- Graphics display component's symbols and pin order
- 128*64 LCD display screen
- Automatic shutdown to save energy
- Test transistors, amplification factors and cardinal number of MOSFET's protection diode and the like, and the positive bias voltage of emitter transistors
- Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes, thyristors, triodes, resistors and capacitors
- High test speed and valid component test: 2 seconds. But the measurement of large capacitors takes a long time. Usually it takes 1 minute to test.

Package Included:
- 1 x M328 Multifunctional Tester

Note:
- Batteries are not included in the package.
- Please note that only part of JFET are incorrectly recognized as transistors by M328.
