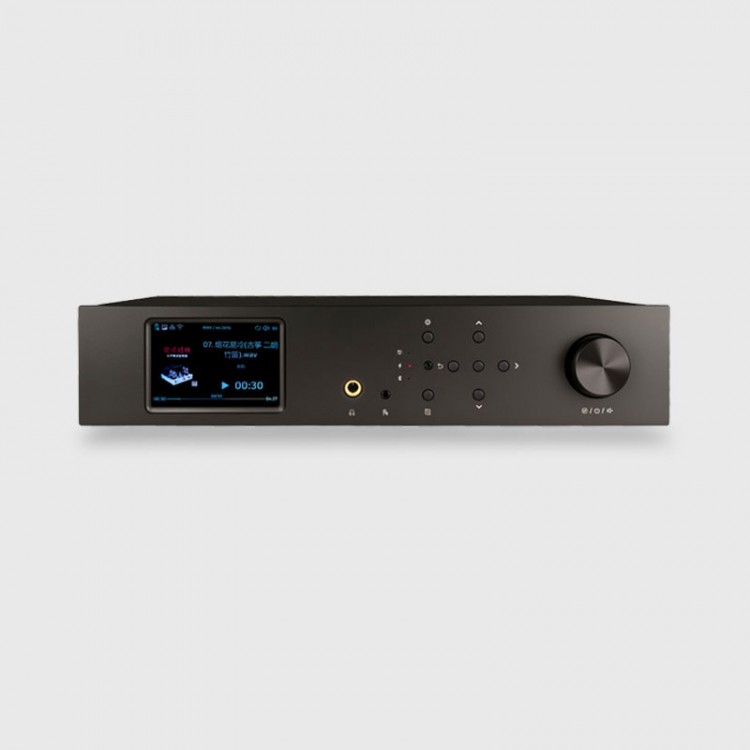

M5 Digital Turntable Digital Music Player Headphone Amplifier (M5b with Bluetooth USB Sound Card)

M5 Digital Turntable Digital Music Player Headphone Amplifier (M5b with Bluetooth USB Sound Card)

Advantages of the M5 Series:
* Optional OCXO (typically only standard active crystal oscillators are used);
* Built-in headphone amplifier compatible with high-impedance headphones (many devices lack headphone amplifier functionality);
* Supports connection to NAS (Network Attached Storage) systems (e.g., for Synology, Ugreen, Feiniu and DIY NAS);
* Supports USB drives, external hard drives, optional Bluetooth input, and optional USB sound card input (multiple input methods);
* Multiple control options: dedicated app, remote control, front panel buttons, and smartphone browser;
* Strong compatibility and cross-platform support: For Apple iOS, Windows, Android, and Linux;
* Supports AirPlay, DLNA, and Roon, and easily compatible with major streaming music platforms like QQ Music, NetEase Cloud Music, and Kugou Music;
* Direct internal I²S signal path with hardware decoding, dual ES9038Q2M DAC chips, and analog output;
* XU316 USB solution for XMOS specifically customized and optimized for digital audio playback.

Applications of the M5 Series:
* Lossless playback of songs stored on USB drives and external hard drives, with optical or coaxial output to an external decoder;
* Playback + decoding mode: outputs analog signal via RCA (red and white connectors) or balanced XLR interface to power amplifiers or active speakers;
* Bluetooth playback (optional) from mobile phones, or connect to a computer via USB to use as an external sound card (optional);
* Place it on a desktop and connect high-end headphones such as headphones for Sennheiser HD650, HD800, etc.;
* Supports a variety of popular music apps; stream music from your phone to the M5 and play it through connected speakers.

Mobile App:
* Dedicated app for Android and browser-based control for iPhone users.
* Remotely browse folders and music files on USB drives over the network, select and switch tracks, fast forward and rewind.

Mobile Streaming:
* It supports media streaming from phones for Android via DLNA and from phones for iPhone via AirPlay.
* It also supports Roon player for network streaming to the M5 for playback.

On-Screen Display Includes:
1. USB Drive Playback Mode
2. NAS Connection
3. Wired Network Connection
4. Wireless WiFi Connection
5. Song Format / Sampling Rate
6. Repeat Mode (Playlist / Single Track / Sequential / Shuffle)
7. Volume Level
8. Song Title
9. Playback Progress
10. Song Duration
11. Current Track / Total Number of Tracks
12. Album Cover Art

Supported Audio Formats:
* Full Format Support: PCM 384kHz & DSD256
* Compatible with the following formats: APE, WAV, FLAC, AIFF, M4A, WMA, WMA Lossless, MP2, MP3, AAC, OGG, DSF, DFF

Specifications of the M5 Series:
* Model: M5
* External Power Supply: 220V AC (110V optional)
* Analog Output Level: Balanced 4V / Single-ended 2Vrms
* USB Drive Digital Output: 384kHz 32Bit / DOP64
* Headphone Amplifier Power: 1.5W (6.35mm jack output impedance 1Ω)
* Total Power Consumption: 15W (Standby 3.5W)
* Network Streaming: For AirPlay, DLNA, and ROON
* Remote Control Functions: App for Android / Remote Control / Web for Apple
* Supported Capacity: USB Drive up to 1TB / Hard Drive up to 2TB (exFAT / NTFS)
* Decoding Scheme: Dual ES9038Q2M (Internal Hardware Decoding)
* Optional Bluetooth Solution: QCC3084 (Bluetooth 5.4)
* Bluetooth Parameters: For LDAC 96kHz (For APTX 48kHz / AAC 44.1kHz)
* Optional USB Solution: XU316 USB solution for XMOS (3rd Generation 16-core)
* USB Parameters: 384kHz 32Bit / DSD512
* Noise Floor: <3uVrms (Noise)
* Signal-to-Noise Ratio (SNR): 110dB
* Total Harmonic Distortion + Noise (THD+N): 102dB
* Dynamic Range (DNR): 109dB
* Frequency Response: 20–45kHz
* Channel Separation (Crosstalk): 120dB
* Main Unit Size (Excluding Bluetooth Antenna): 350mm x 250mm x 70mm (WxDxH)
* Weight: 2000 g

Packing List:
* 1 x Decoder Main Unit
* 1 x Power Cable
* 1 x Bluetooth Antenna
* 1 x Remote Control
* 1 x Quick Start Guide
* 1 x USB Drive
* 1 x Wireless Network Card

Packaging Details:
* Weight: 4kg

Note:
* The appearance of accessories may change periodically. Images are for reference only; please refer to the actual product.
* Bluetooth, sound card and OCXO are optional features. You can select versions with these functions in our store.
