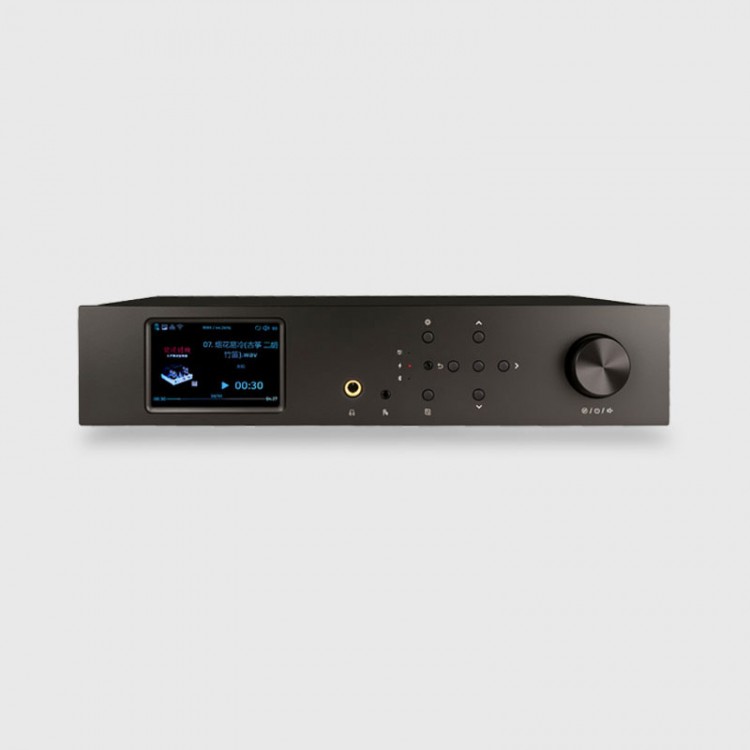

M5 Digital Turntable Digital Music Player Headphone Amp ( M5c with OCXO Bluetooth & USB Sound Card)

M5 Digital Turntable Digital Music Player Headphone Amp ( M5c with OCXO Bluetooth & USB Sound Card)

Advantages of the M5 Series:
* Optional OCXO (typically only standard active crystal oscillators are used);
* Built-in headphone amplifier compatible with high-impedance headphones (many devices lack headphone amplifier functionality);
* Supports connection to NAS (Network Attached Storage) systems (e.g., for Synology, Ugreen, Feiniu and DIY NAS);
* Supports USB drives, external hard drives, optional Bluetooth input, and optional USB sound card input (multiple input methods);
* Multiple control options: dedicated app, remote control, front panel buttons, and smartphone browser;
* Strong compatibility and cross-platform support: For Apple iOS, Windows, Android, and Linux;
* Supports AirPlay, DLNA, and Roon, and easily compatible with major streaming music platforms like QQ Music, NetEase Cloud Music, and Kugou Music;
* Direct internal I²S signal path with hardware decoding, dual ES9038Q2M DAC chips, and analog output;
* XU316 USB solution for XMOS specifically customized and optimized for digital audio playback.

Applications of the M5 Series:
* Lossless playback of songs stored on USB drives and external hard drives, with optical or coaxial output to an external decoder;
* Playback + decoding mode: outputs analog signal via RCA (red and white connectors) or balanced XLR interface to power amplifiers or active speakers;
* Bluetooth playback (optional) from mobile phones, or connect to a computer via USB to use as an external sound card (optional);
* Place it on a desktop and connect high-end headphones such as headphones for Sennheiser HD650, HD800, etc.;
* Supports a variety of popular music apps; stream music from your phone to the M5 and play it through connected speakers.

Mobile App:
* Dedicated app for Android and browser-based control for iPhone users.
* Remotely browse folders and music files on USB drives over the network, select and switch tracks, fast forward and rewind.

Mobile Streaming:
* It supports media streaming from phones for Android via DLNA and from phones for iPhone via AirPlay.
* It also supports Roon player for network streaming to the M5 for playback.

On-Screen Display Includes:
1. USB Drive Playback Mode
2. NAS Connection
3. Wired Network Connection
4. Wireless WiFi Connection
5. Song Format / Sampling Rate
6. Repeat Mode (Playlist / Single Track / Sequential / Shuffle)
7. Volume Level
8. Song Title
9. Playback Progress
10. Song Duration
11. Current Track / Total Number of Tracks
12. Album Cover Art

Supported Audio Formats:
* Full Format Support: PCM 384kHz & DSD256
* Compatible with the following formats: APE, WAV, FLAC, AIFF, M4A, WMA, WMA Lossless, MP2, MP3, AAC, OGG, DSF, DFF

Specifications of the M5 Series:
* Model: M5
* External Power Supply: 220V AC (110V optional)
* Analog Output Level: Balanced 4V / Single-ended 2Vrms
* USB Drive Digital Output: 384kHz 32Bit / DOP64
* Headphone Amplifier Power: 1.5W (6.35mm jack output impedance 1Ω)
* Total Power Consumption: 15W (Standby 3.5W)
* Network Streaming: For AirPlay, DLNA, and ROON
* Remote Control Functions: App for Android / Remote Control / Web for Apple
* Supported Capacity: USB Drive up to 1TB / Hard Drive up to 2TB (exFAT / NTFS)
* Decoding Scheme: Dual ES9038Q2M (Internal Hardware Decoding)
* Optional Bluetooth Solution: QCC3084 (Bluetooth 5.4)
* Bluetooth Parameters: For LDAC 96kHz (For APTX 48kHz / AAC 44.1kHz)
* Optional USB Solution: XU316 USB solution for XMOS (3rd Generation 16-core)
* USB Parameters: 384kHz 32Bit / DSD512
* Noise Floor: <3uVrms (Noise)
* Signal-to-Noise Ratio (SNR): 110dB
* Total Harmonic Distortion + Noise (THD+N): 102dB
* Dynamic Range (DNR): 109dB
* Frequency Response: 20–45kHz
* Channel Separation (Crosstalk): 120dB
* Main Unit Size (Excluding Bluetooth Antenna): 350mm x 250mm x 70mm (WxDxH)
* Weight: 2000 g

Packing List:
* 1 x Decoder Main Unit
* 1 x Power Cable
* 1 x Bluetooth Antenna
* 1 x Remote Control
* 1 x Quick Start Guide
* 1 x USB Drive
* 1 x Wireless Network Card

Packaging Details:
* Weight: 4kg

Note:
* The appearance of accessories may change periodically. Images are for reference only; please refer to the actual product.
* Bluetooth, sound card and OCXO are optional features. You can select versions with these functions in our store.
