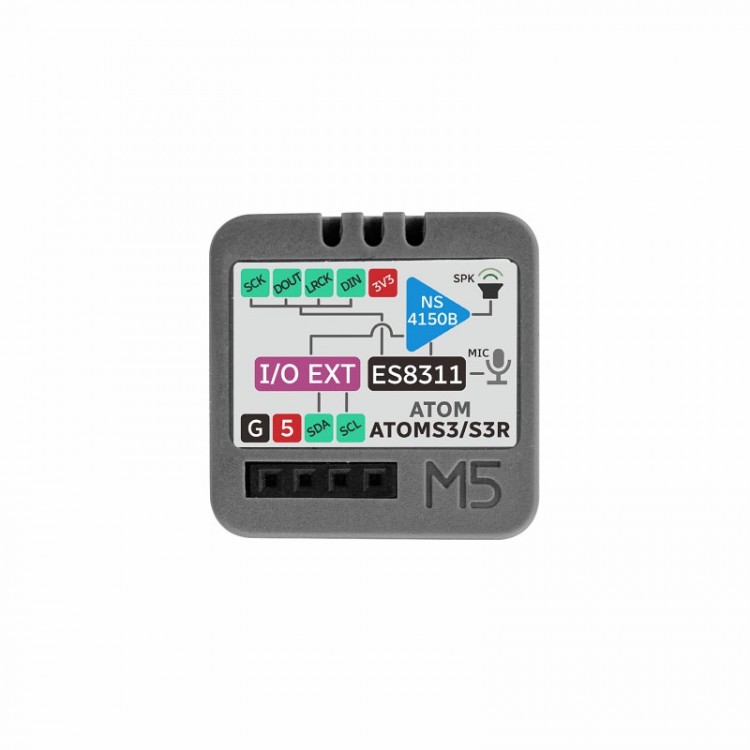

M5Stack Atomic Echo Voice Recognition Base ES8311 Mono Audio Decoder MEMS Microphone for M5 Atom Series

M5Stack Atomic Echo Voice Recognition Base ES8311 Mono Audio Decoder MEMS Microphone for M5 Atom Series

Description:

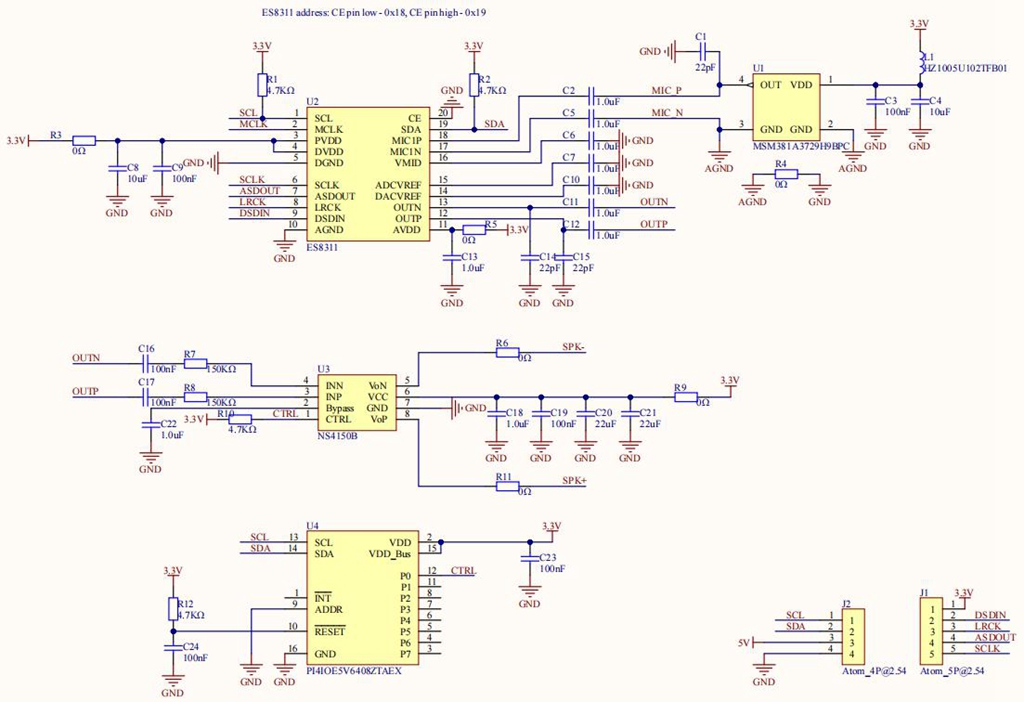

- The Atomic Echo Base is a voice recognition base designed specifically for the M5 Atom series. It uses an integrated solution with the ES8311 mono audio decoder, MEMS microphone, and NS4150B power amplifier. The ES8311 offers 24-bit audio resolution and a sample rate of 16KHz to 64KHz, supporting I2S communication and high-fidelity audio processing. The MEMS microphone with high signal-to-noise ratio (SNR) is suitable for automatic speech recognition, while the built-in speaker ensures efficient audio output. The device supports full-duplex communication, enabling simultaneous voice transmission and reception, enhancing interactive features such as speech recognition, wake-up, and audio playback. It is ideal for applications in smart homes and education.

Features:

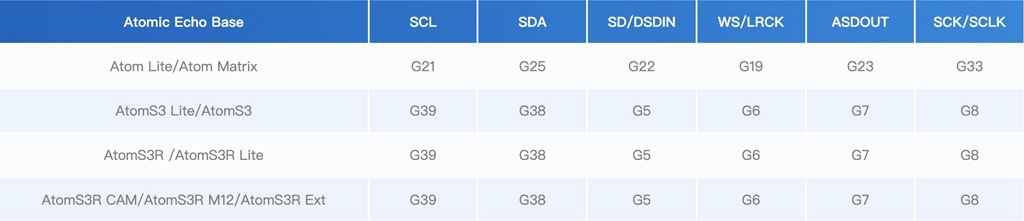

- Compatible with the M5 Atom series
- Voice recognition
- Mono audio codec
- MEMS microphone
- Class-D amplifier
- Speaker
- Development platform
- UIFlow 1.0
- UIFlow 2.0
- For Arduino IDE

Applications:
- AI voice recognition interactive systems
- Smart home control

Specification:
- Audio codec: ES8311: 24-bit resolution, I2S protocol
- MEMS microphone: MSM381A3729H9BPC, SNR ≥ 65 dB
- Power amplifier: NS4150B: Class-D power amplifier
- Speaker: 2014-type cavity speaker: 1W at 8Ω
- Standby current: DC3.3V/3.36mA
- Operating current: DC3.3V/14.84mA
- Operating temperature: 0-40°C
- Product size: 24.0 x 24.0 x 14.14mm
- Product weight: 6.3g

Package Included:
- 1 x Atomic Echo Base
