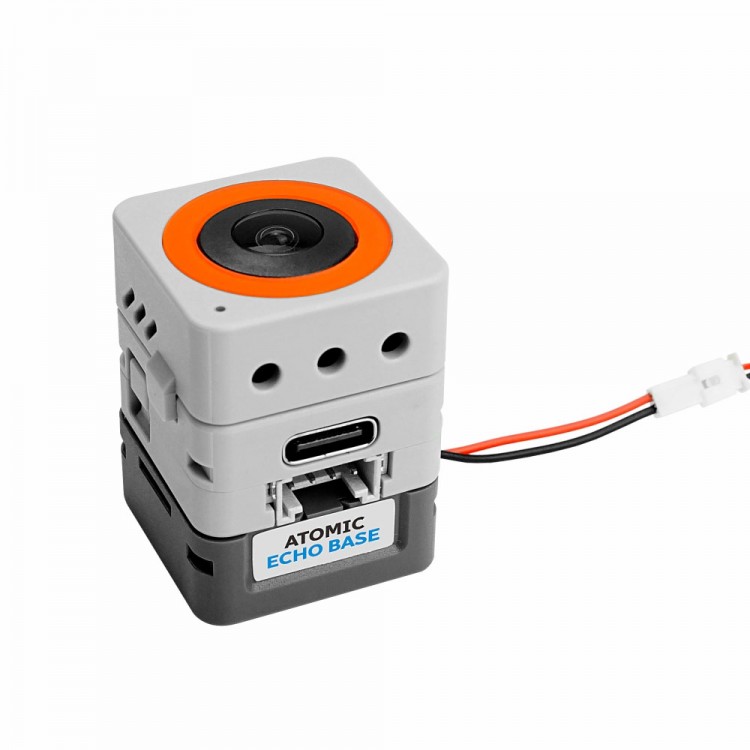

M5Stack AtomS3R M12 ESP32-S3 IoT Programmable Controller Voice and Visual Development Kit 3-Million Pixel OV3660 Camera

M5Stack AtomS3R M12 ESP32-S3 IoT Programmable Controller Voice and Visual Development Kit 3-Million Pixel OV3660 Camera

Description:
- AtomS3R M12 is an IoT programmable controller integrated with an M12 camera, featuring a 3-megapixel OV3660 camera that supports high-resolution image acquisition. It uses the ESP32-S3-PICO-1-N8R8 as the main controller, with built-in WiFi functionality, 8MB onboard FLASH, and 8MB PSRAM. It includes a power management circuit that converts 5V to 3.3V and has an embedded three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor. The product comes with UVC (USB Video Class) firmware, allowing it to be used as a plug-and-play USB camera without the need for driver installation, and it also has infrared emission control.
- Compared to previous ATOM series host products, the AtomS3R M12 features an enhanced 3D antenna, providing better performance and stability. The product includes a Type-C interface for power supply and firmware downloads, along with an HY2.0-4P expansion port. The bottom design features six GPIO and power pins for easy expansion. Measuring only 24x24x22.1mm, it is suitable for applications such as IoT device monitoring, educational development tools, and various embedded scenarios.

Features:
- Integrated ESP32-S3-PICO-1-N8R8 main controller
- 3-megapixel OV3660 camera
- Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
- 8MB Flash and 8MB PSRAM
- Supports infrared emission control
- Expandable pins and interfaces
- Development platforms: for Arduino, UIFlow, Micro Python

Application:
- Plug-and-play USB camera
- Motion detection and directional awareness
- Wearable devices
- Smart device control
- IoT applications

Package Included:
- 1 x AtomS3R M12

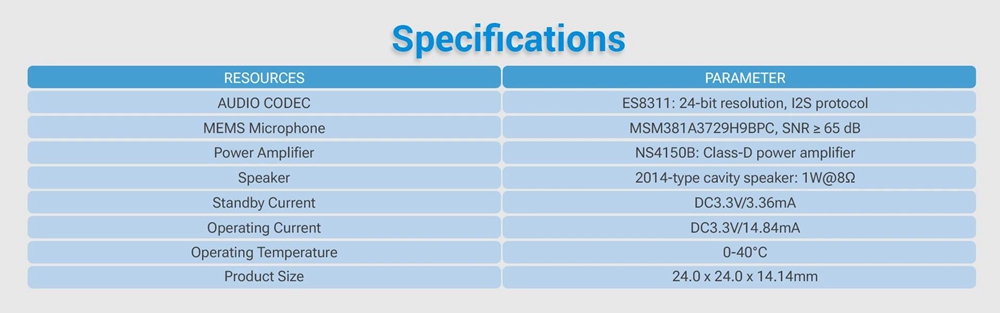

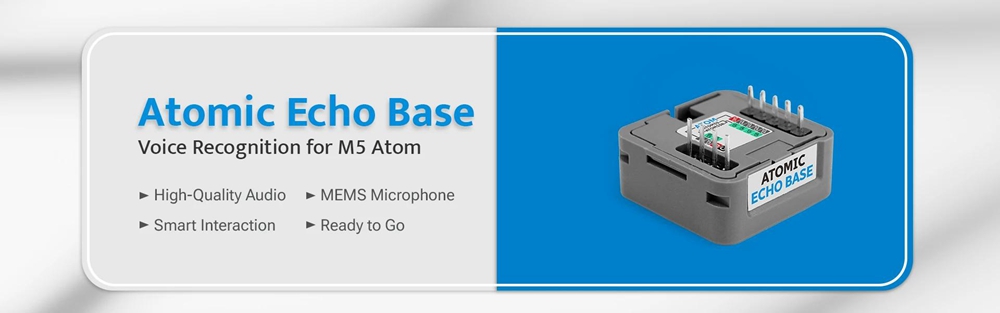

- 1 x Atomic Echo Base
