M5Stack CoreS3 Lite Programmable IoT Controller ESP32S3 240MHz Processor Support AI Voice Interaction
Description:

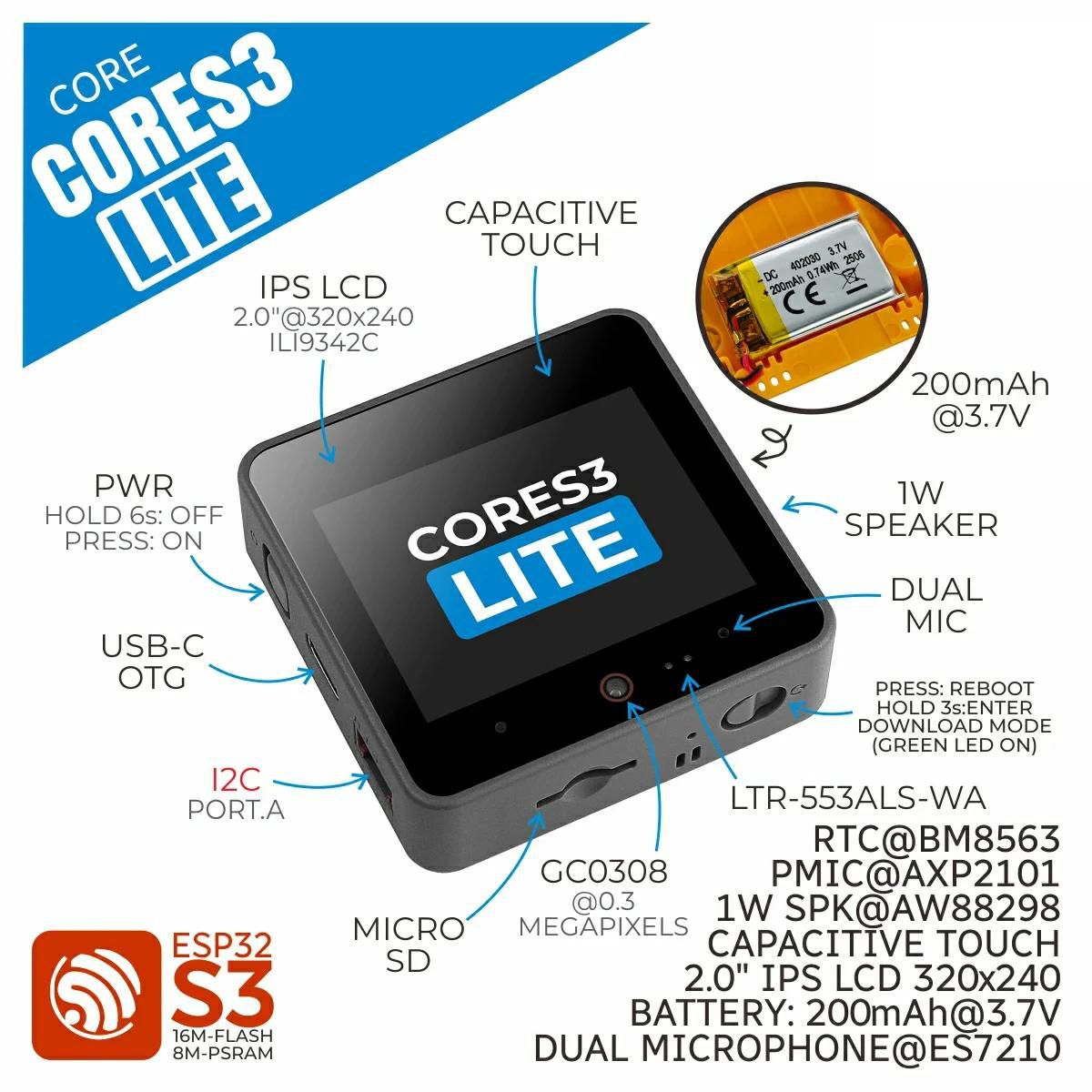

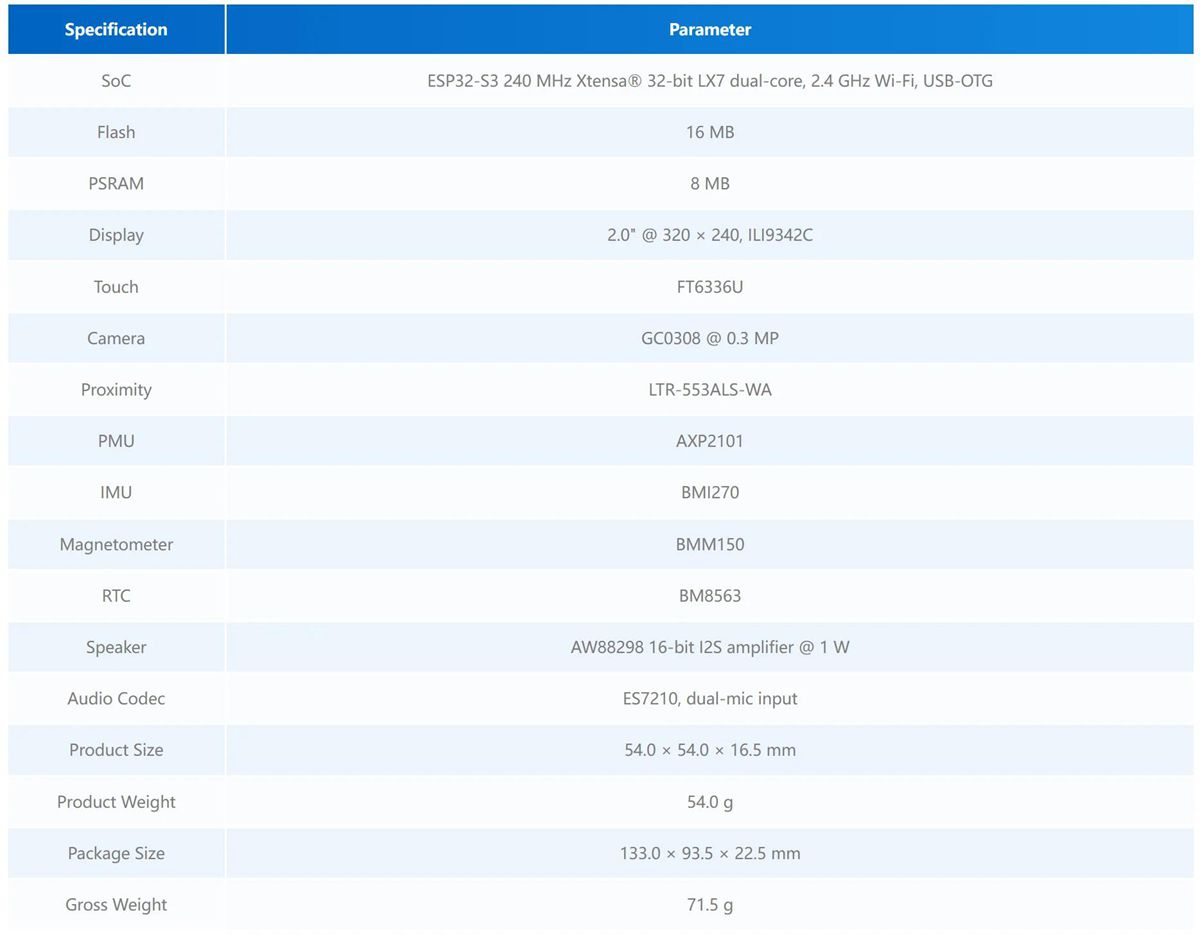

- Based on ESP32-S3 240MHz for Xtensa 32-bit LX7 dual core processor, with 16MB Flash + 8MB PSRAM, supporting complex IoT applications and multitasking integration with 2.4GHz WiFi, suitable for wireless connection scenarios.
- 2.0-inch capacitive touch IPS screen + 0.3MP camera (GC0308), suitable for general face detection and recognition applications.
- Six axis attitude sensor (BMI270) + three-axis magnetometer (BMM150) to achieve motion attitude interaction.
- Digital Light Transmission and Proximity Sensor (LTR-553ALS-WA), suitable for ambient light sensing and proximity triggering scenarios.
- Dual microphones and audio encoding chip (ES7210), supporting clear voice acquisition, suitable for voice control scenarios.
- 16bit I2S amplifier (AW88298) + 1W speaker, providing stable audio playback capability.
- Full duplex communication, suitable for real-time voice interaction applications such as voice assistants, robot responses, etc.
- AXP2101 power management + BM8563RTC, supports low-power timed wake-up, extends battery life. Equipped with a built-in 200mAh lithium battery and a magnetic back-plate design, it can be flexibly installed in smart homes, robots, and other scenarios.
Package Included:
- 1 x IoT Controller
