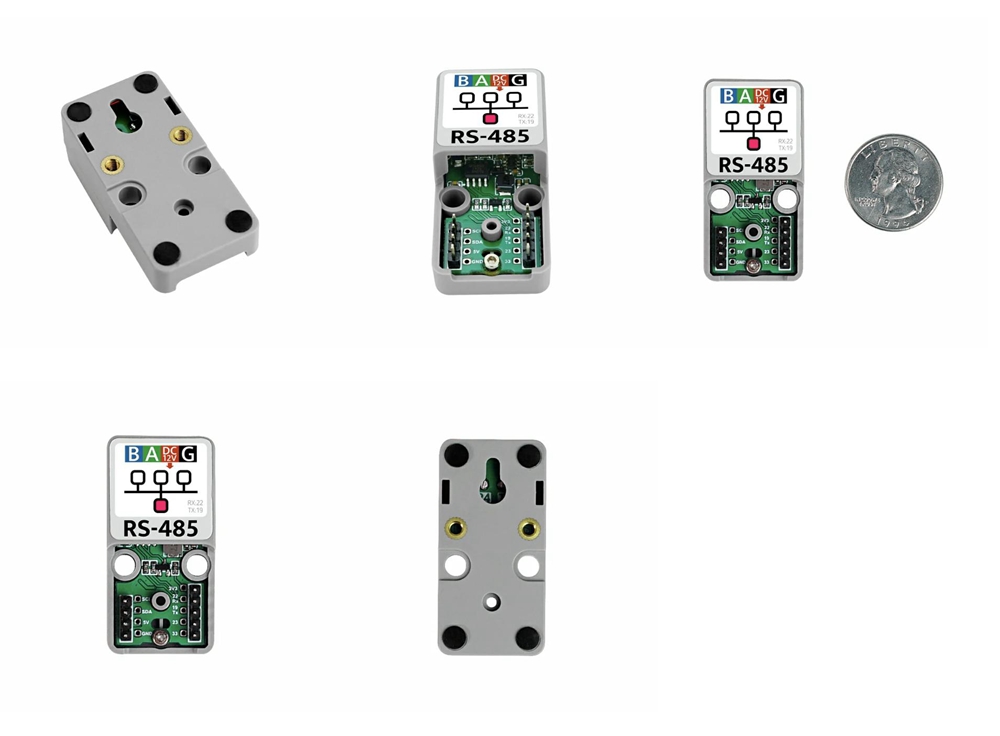

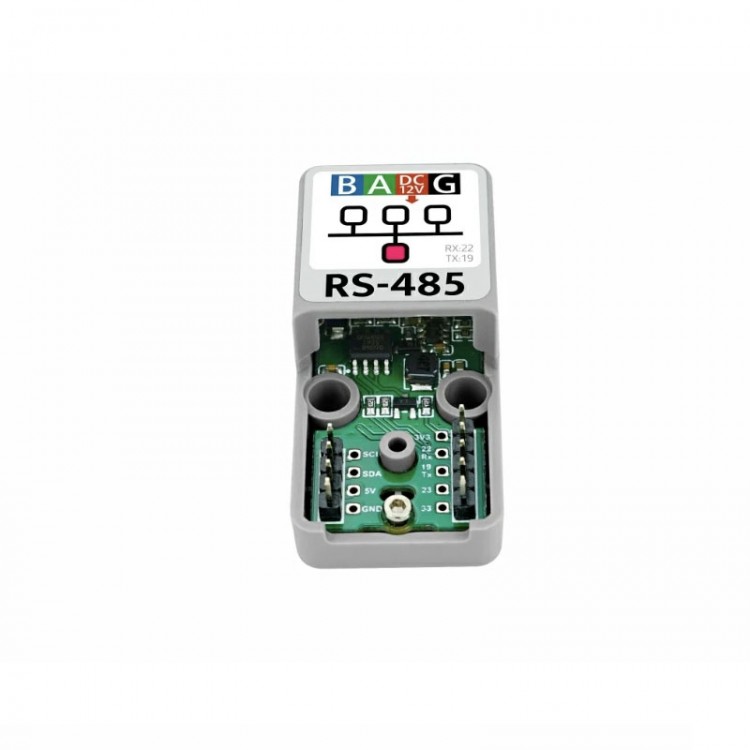

M5Stack ATOMIC TTL-RS485 Level Converter Base Built-in DC/DC Voltage Regulator Compatible with ATOM Matrix/ATOM Lite
Description:

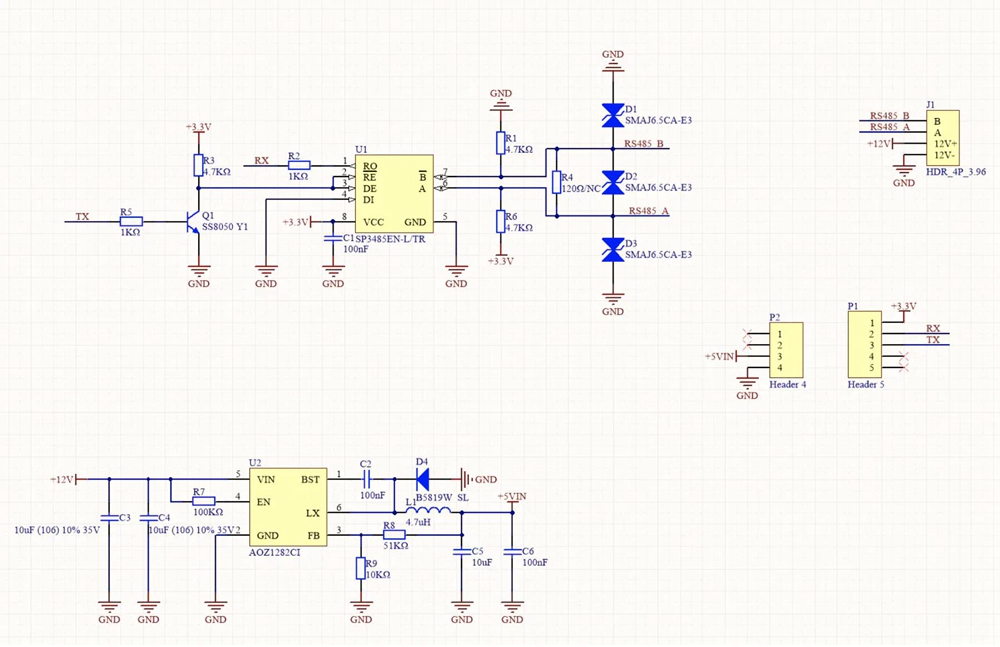

- ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It's function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports a multi-point system and is widely used in industry. When the applications equipment needs to communicate and be controlled through RS485, ATOM RS-485 is an excellent choice. A DC/DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.
Features:
- Compatible ATOM Matrix/ATOM Lite
- SP3485EE
- Built-in DC/DC
- Multi point communication
Applications:
- RS485 Multi point communication
- Industrial control node
- RS485 to Wi-Fi
Specification:
- External port: VH-3.96 4P
- Conversion level: 5V12V
- Level-conversion IC: SP3485EE
- DC-DC: A0Z1282CI
- Net weight: 28g
- Gross weight: 38g
- Product Size: 2 x 48 x 18mm
- Package Size: 54 x 54 x 20mm
- Case material: Plastic ( PC )
Package Included:
- 1 x Atomic RS485 Base
More Details:
- https://docs.m5stack.com/en/atom/atomic485
