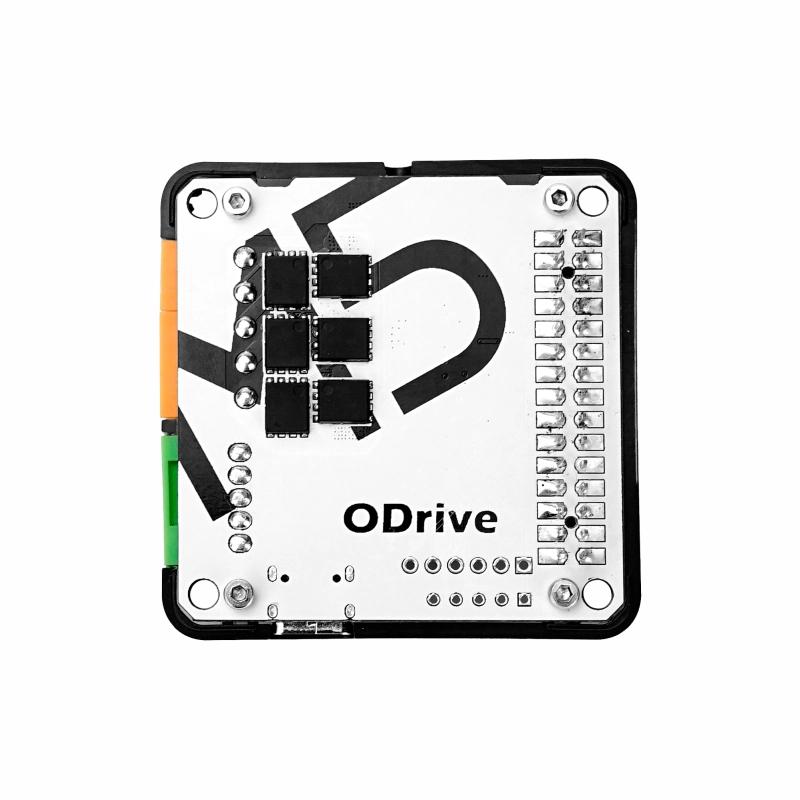

M5Stack ODrive High Performance Three-phase Servo Motor Driver Module for Opensource Motion Control DRV8301

M5Stack ODrive High Performance Three-phase Servo Motor Driver Module for Opensource Motion Control DRV8301

Description:
- ODrive is a high-performance servo motor drive module launched by M5Stack, based on the open source motion control solution ODrive. Supports the control of a single three-phase servo motor, the peak drive current can reach 5A. It has high-speed motor control capability while providing encoder signal interface, which can realize high-precision motion control positioning. The module uses UART communication interface and is compatible with the official ODrive configuration tool and protocol (you can also configure different motor motion modes through the host computer tool to make the motor work more smoothly and stably).
- Configure the motor parameters through the PC upper computer, and send commands to control the motor displacement through UART.
- Applications: High precision motion control, Servo motor drive

Features:
- Single three-phase servo motor drive
- Peak drive current 5A
- 12-24V DC power input interface (requires adapter output current up to 5A)
- Communication interface: UART
- Single channel servo motor drive/with encoder interface

Specification:
- Motor driver chip: DRV83018
- Maximum drive current: 5A
- Interface Type: 3.96-2P (power supply), 3.96-3P (motor), 2.54-5P (encoder)
- Input power: 12-24V DC
- Net weight: 22.5g
- Gross weight: 42.3g
- Product Size: 54.2 x 54.2 x 13.2mm
- Package Size: 95 x 65 x 25mm

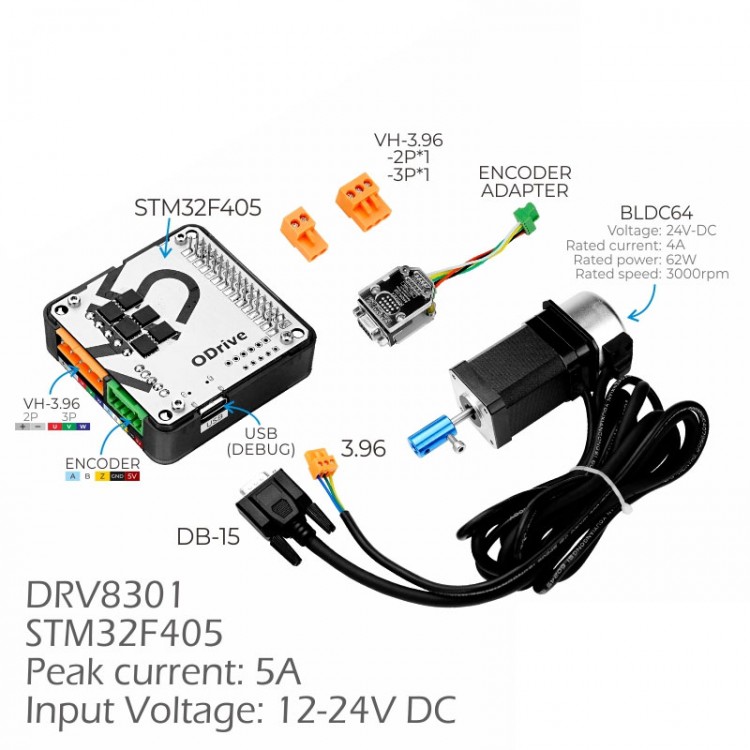

Package Included:
- 1 x ODrive Module
- 1 x 3.96-3P terminal
- 1 x 3.96-2P terminal

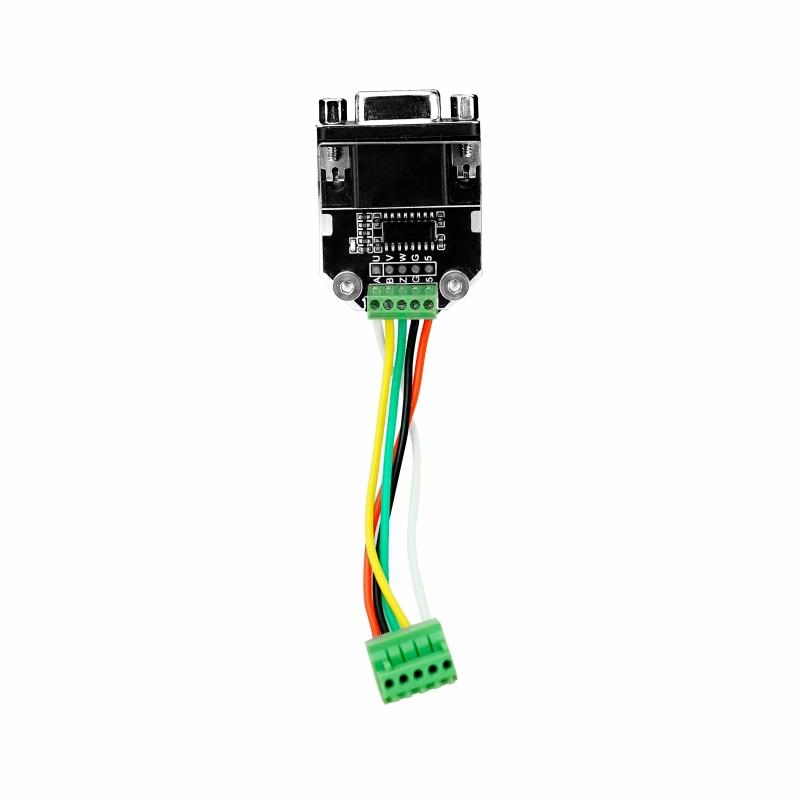

- 1 x 2.54-5P terminal
