MACH3 3 Axis Montion Controller NVEC3+ NVMPG-3D CNC Manual Pulse Generator MPG

Tags: Montion Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$200.51
  • Price in reward points: 2005 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $196.50 $192.49 $186.47 $178.45 Contact US
Quantity:

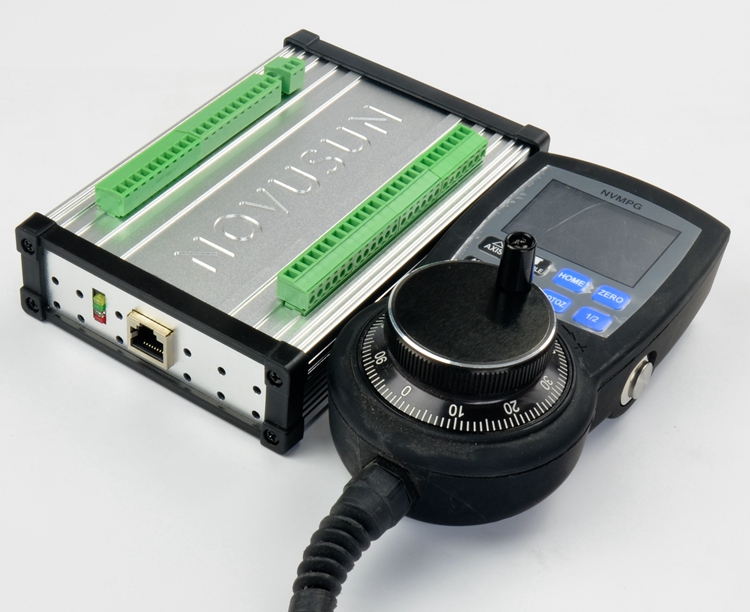

MACH3 3 Axis Montion Controller NVEC3+ NVMPG-3D CNC Manual Pulse Generator MPG




MACH3 Ethernet Port 3 Axis CNC Montion Controller
Interface Board Card NVEC3







High level Ethernet mach3 control card features:
- Support motion controller,digital handwheel and standard handwheel.
- Digital control serial COMI communication partial open protocol,users can develop control device with NVEM.
- IO extension serial COM2 communication partial open protocol,user can extend I0 in his willing.
- The highest output frequency 1MHz per axis.
- The max control 6 pcs stepper motor.
- 16-channel programmable input interface,can equip limit operation scram function.
- 12-channel programmable output interface,can equip water-cooling mist cooling controlled peripheral.
- 1-channel handwheel MPG interface,can support standard handwheel,digital serial handwheel,digital handwheel.
- Main axis PWM output control.
- Support MACH3 software.
- Ethernet interface,support MACH3 software.
- DCDC electrical isolation
- Optocoupler isolation
- Aluminum alloy shell,powerful anti-jamming performance.

Ethernet MACH3 3-Axis CNC Controller Interface Board Card 1MHz Output with shielded aluminum shell.

Application:
- Processing various patterns of colorful mold
- Used in advertising
- With CNC controller,suitable for a variety of small and medium-sized automatic equipment, instruments

NVMPG-3D CNC Manual Pulse Generator MPG Coordinates Display Handwheel Open Wire

Description:
- Manual Pulse Generator named NVMPG-3D. This MPG has a screen,and 10 buttons. The coordinates and some other parameter are displayed on the screen.
- And user can change axis and rate by the buttons. There are also few other functions e.g. ZERO/ GOTO0/HOME on the buttons.
- The encoder of NVMPG-3D is the same as general MPG. but the choice of axis and rate use USART port instead of general port.
- There are 2 mode of terminal: open wire and RJ45 port.  This is the open wire version. ( RJ45 port )

Specifications:
- Version: open wire
- High performance
- 2.2" TFT Screen
- 10 buttons
- Voltage 5VDC
- 8 wire control line
- 6 axis coordinates /RESET/FRO/SRO/SJR/SPINDLE are display on the screen

Connection interface definition:
NVMPG-3D has 8 wires connected to CNC system, the definition of NVMPG


Package List:

- 1 x Ethernet MACH3 3-Axis CNC Montion Controller
- 1 x USB cable
- 1 x Manual Pulse Generator
- 1 x User manual
