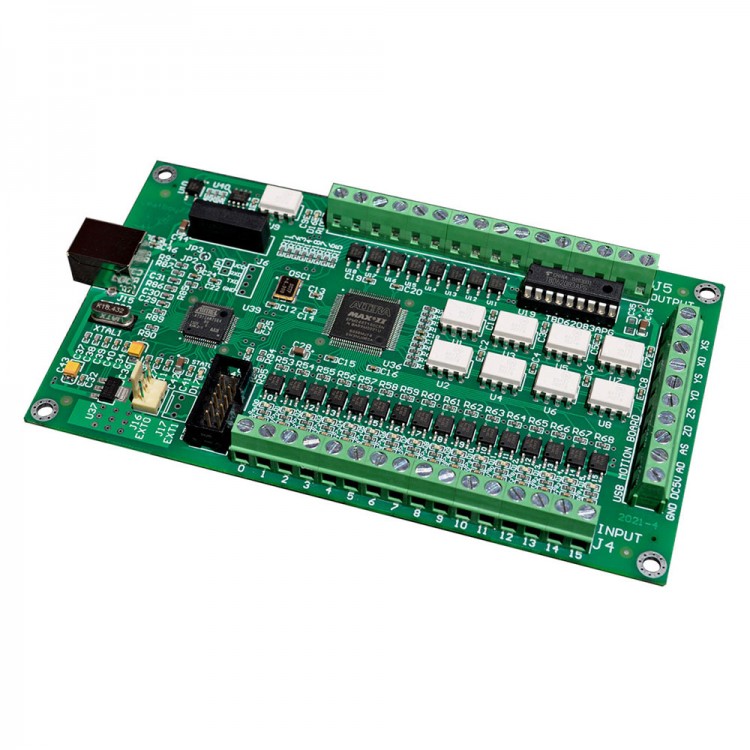

4 Axis Mach3 Motion Card CNC Mach3 Breakout Board Motion Controller USB Driver-Free AKZ250(B)
Description:
It is the new version LF77-AKZ250-USB2(B)-4AXIS, which has the same function as the old version LF77-AKZ250-USB2-4AXIS. The appearance and other mechanical dimensions of these two models are the same.
Features:
- It is the new 3-axis Mach3 motion card
- Appearance: The new version uses SMD LEDs, including 16 input point indicators and 1 speed measurement input point indicator
- Function: The new version adds capacitor filtering to 16 input points
Specifications:
- Interface: USB
- Axis output number: 4 Axis (high-speed optocouplers)
- Axis output frequency: 200KHz
- Digital inputs: PNP-5V *16 (Optocoupler isolation)
- Analog inputs: 0-3.3V * 2 (non-isolated)
- MPG inputs: PNP-5V *1 (Optocoupler isolation)
- Speed measurement input: 1 (Optocoupler isolation): PNP-5V / NPN-5V
- Digital outputs: Open collector output 500mA *8 (Optocoupler isolation)
- Analog output: PWM open collector output 13mA *1 (Optocoupler isolation)
- Axis Backlash: YES
- MPG (Manual Pulse Generator): Not real time
- Slave Axis(Dual X/Y/Z): NO
- Automatic leveling(dual side home switch): NO
- Axis Link: NO
Package Included:
- 1 x Mach3 Motion Card
Download:
Chinese & English Manual Ver1.17 (English update: 2012-10-02)
1. PDF [Adobe Acrobat PDF – Zip Archive 1.7 MB]: http://leafboy77.com/files/USB_Motion_Card_AKZ250_Manual_v1.17_CN-EN20121102.pdf.zip
2. DOC [Word Document – Zip Archive 2.3 MB]: http://leafboy77.com/files/USB_Motion_Card_AKZ250_Manual_v1.17_CN-EN20121102.doc.zip
3. For Windows 10 Driver reinstalling 2017-8-18 [Adobe Acrobat PDF – Zip Archive 0.8 MB]: http://leafboy77.com/files/reinstall_driver_win10_doc.zip
4. Plug-in ver2.0.2.1 (UsbMove.ZIP) 2019-2-8 [Zip Archive – 0.2MB]: http://leafboy77.com/files/UsbMove-V2.0.2.1.zip
5. Schematic [Zip Archive]: http://leafboy77.com/files/MOVE2BSCH.zip
Download the latest version of Mach3:
https://www.machsupport.com/software/mach3/
