MAGELLAN Micro-Python STM32H743IIT6 Development Board MicroPython Embedded Programming Basic Kit

Introduction of MAGELLAN Development Board:

The MAGELLAN Micro-Python development board is based on the STM32H743 platform. Compared with the traditional C language, users can use the python language to program and use all the resources and functions of the STM32H743 microcontroller development board.



Resources of MAGELLAN Development Board:
Size:
- Board size: 16 x 12cm/6.3 x 4.7"

Master:
- STM32H743IIT6, for Cortex M7, main frequency: 480MHz; internal FLASH: 2MBytes, internal RAM: 1M Bytes, 176Pin

Storage:
- SDRAM: 32M Bytes
- FLASH: 16M Bytes
- SDIO: MicroSD card slot

Sensor:
- Temperature sensor: DS18B20
- Temperature and humidity sensor: DHT11
- Six-axis sensor: MPU6050 (3-axis acceleration + 3-axis gyroscope)
- Sensor external connection: 2-way 3P foolproof interface

Input/Output:
- LED: 4
- Buttons: 4 (1 reset button + 3 function buttons)
- Potentiometer: ADC Input
- Active buzzer
- OLED display interface
- 4.3" MCU screen
- 4.3"/7" RGB screen, RGB888 connected by cable

Multimedia:
- Audio decoding chip: play music and recording
- Microphone Input: Recording
- On-board speaker: 8Ω 1W (with sound cavity)
- Stereo audio input/output interface
- Camera interface: camera (support extension via flat cable)

Communication:
- USB: TYPE-C interface (power supply, programming, UART, and REPL debugging)
- 100M Ethernet interface
- CAN interface
- RS485 interface
- pylOT: Wireless Module Interface
- I2C/UART: 4P foolproof interface

Others:
- Servo interface: 3 channels (SG90 servo with small current)
- Lead out all GPIO: standard 2.54mm pin header

Power Supply:
- USB (TYPE-C) power supply: 5V
- Power adapter: 5V
- 3.3V/5V pin header



Introduction of Core Board:
- The main control uses a high-performance processor for ST Cortex-M7, and its main frequency reaches 480MHz
- Small size and golden finger interface; easy to use in various products
- The core board can be connected to the Magellan board or used alone. Equipped with USB, SDRAM, FLASH, LED, buttons, RGB screen interface, SD card slot and other resources.
- Use Micropython programming; concise and efficient to use



Application Scenarios:
- For music players, cameras, photo albums, sensors, servos, wireless modules and 7" RGB screen

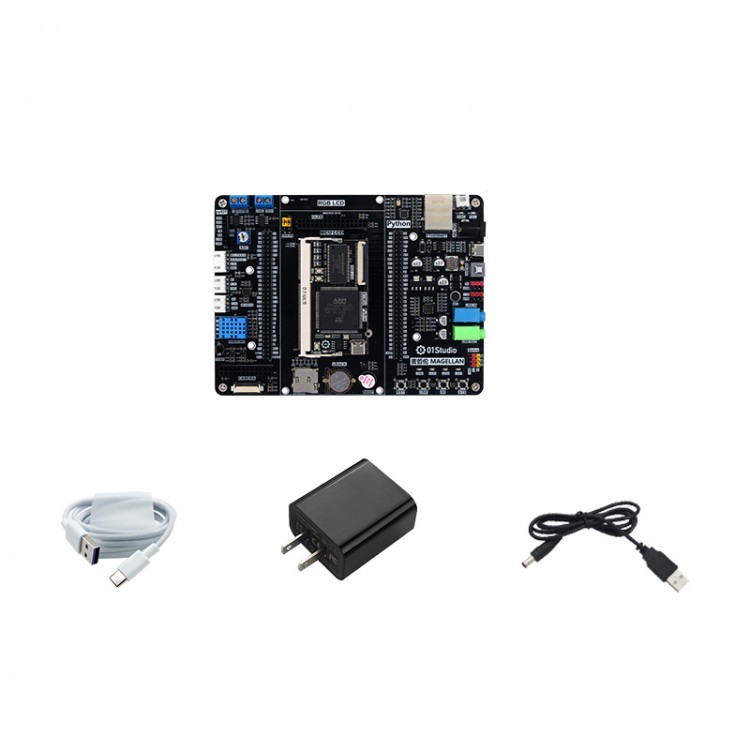

Package Included:
- 1 x MAGELLAN Development Board
- 1 x Type-C Cable
- 1 x 5V 3A Power Adapter
- 1 x DC2.1 Power Cord (1.5m/4.9ft)

Note:
- Batteries are not included.
