pyWiFi-ESP32 Development Board Kit For Micropython Programming Wireless WiFi IoT Kit Basic Version
Description:
With one Micro USB cable, you can start your development projects now! Just 3 rows of codes to make LED lit. It can easily link to your routers, supporting for Socket and MQTT communications.

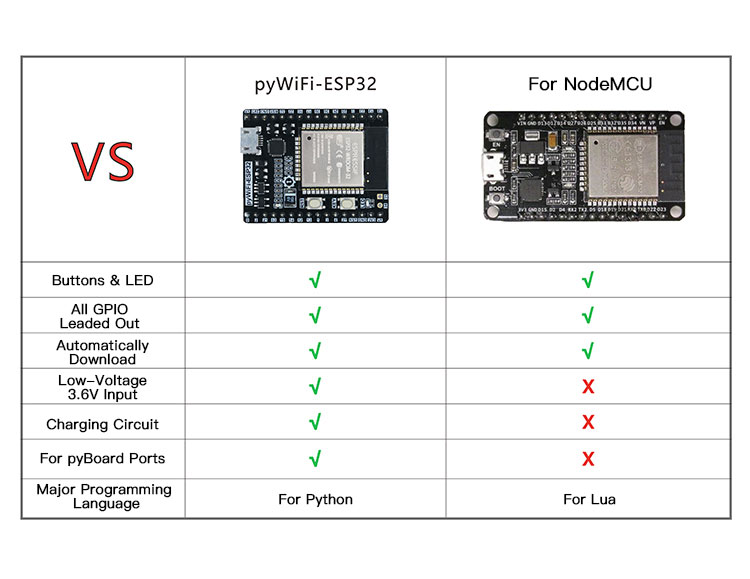

pyWiFi-ESP32 Module:
pyWiFi-ESP32 is perfect for Micro-Python to develop. Main Features:
1.Fit for pyBoard interface
2.Automatically download circuit
3.On-board power supply input port and charging circuit
4.Buttons & LED arranged in order, clear screen printing
V+: 3.6-6V input (It is recommended to use USB port to power. When it is powered via USB port, it is 5V.)
3V3: 3.3V output with maximum current 600mA.
VBAT: Power supply input. (On-board FET protection circuit and charging circuit. XH-2.54-2P port on the back side)
LED: Connect to Pin 2
KEY: Connect to Pin 0
I2C: Fit Arbitrary IO
PWM: Support Arbitrary IO
pyBase:
It is a base board which is specially designed for pyBoard. With rich on-board resources, pyBase is designed with interfaces for powerful compatibility.
With pyWiFi-ESP32, pyBase, OLED display, the development kit for Micro-Python make it possible for more Micro-Python experiments. Detailed functions as pictured:
pyBase Functional Parameters:
- Interface For py-board: Fit for pyBoard, pyWiFi-ESP8266, pyWiFi-ESP32
- 2.54mm Pin Header: Interfaces for pyboard
- Buttons: RST & USER Buttons
- Potentiometer: ADC input
- Passive Buzzer: DAC output
- Servo Interface: X1-X4. Connection to external isolated circuit is needed
- OLED Port: For 4P/ 0.96"/ I2C/ OLED displays
- 1.77" LCD Port: For 01 Studio 1.77" LCD display
- 2.4" LCD Port: For 0.1 Studio 2.4" LCD display
- Temperature Sensor: DS18B20
- Temperature Humidity Sensor: DHT11
- Sensor Port 1: 3P interface for external sensor
- Sensor Port 2: 3P interface for external sensor
- Communications Port: 4P interface for UART/ I2C devices
- Charging Circuit: Charge power supply (Red Light: Charging; Green Light: Charged)
Package Included:
- 1 x pyWiFi-ESP32
- 1 x pyBase
- 1 x 0.9" OLED
- 1 x Micro USB Cable
Note: Battery is not included in the package.
