Makerbase MKS Robin Pro Control Board Motherboard 6 Axis 3-Head Printing Support for Marlin2.0
Description:
MKS ROBIN PRO is a multi-axis printing 3D control board, equipped with STM32F103 main chip, 72MHZ frequency. The motherboard supports 6-axis motor output and can support three-head printing. The hardware supports double Z, plug and play. It also supports motherboard firmware developed by MKS and Marlin2.0 firmware. With multiple screen solutions, it is compatible with LCD12864 and MINI12864, also supports robin TFT touch screens of multiple sizes. It can support external and direct plug-in methods, and the direct plug-in drive is compatible with various drive special modes (uart, spi, etc.)
Specification:
Motherboard model: MKS Robin Pro
Microprocessor: STM32F103F (32-bit)
Main frequency: 72MHZ
Size (mm): PCB size: 143*84, installation size: 135*76
Number of extrusion heads supported: 3
Support driver/mode: support TMC series, 4988, 8825 and other drivers, support external large driver, DIR/STEP, UART, SPI
Support firmware type: Marlin2.0/MKS FIRMWARE
Way to update firmware: SD card
Support screen type: MKS Robin TFT series touch screen, LCD1284
WIFI printing function: need to be used with Robin TFT module
Temperature sensor type: NTC100K, MAX31855
Features:
1. Using 32-bit STM32F103 main control chip, 72MHz main frequency, strong computing power, and performance greatly improved.
2. The motherboard hardware supports 6-axis output and can support 3-head printing.
3. It has both in-line drive socket and external drive port, which is more expandable and more selective.
4. Compatible with multiple drivers and special modes (uart mode of TMC2208, SPI mode of TMC2130, etc.). There are special port reservations, and the wiring setting is more concise and convenient.
5. Support marlin2.0 firmware and MKS ROBIN PRO independently developed firmware.
6. Using high-quality circuit boards, and the corresponding pins of each interface are marked with silk screens, making it easier to identify and modify.
7. Adopt dedicated power chip, support 12V-24V power input.
8. Support the MKS LCD12864, MKS MINI12864 and other control panels developed by the maker base for display control.
9. It can be used with MKS ROBIN TET's multi-size touch screen solution.
10. It can be used with ROBIN WIFI module to realize wireless printing.
Package List:
-1 x MKS Robin Pro Control Board
-1 x USB Cable

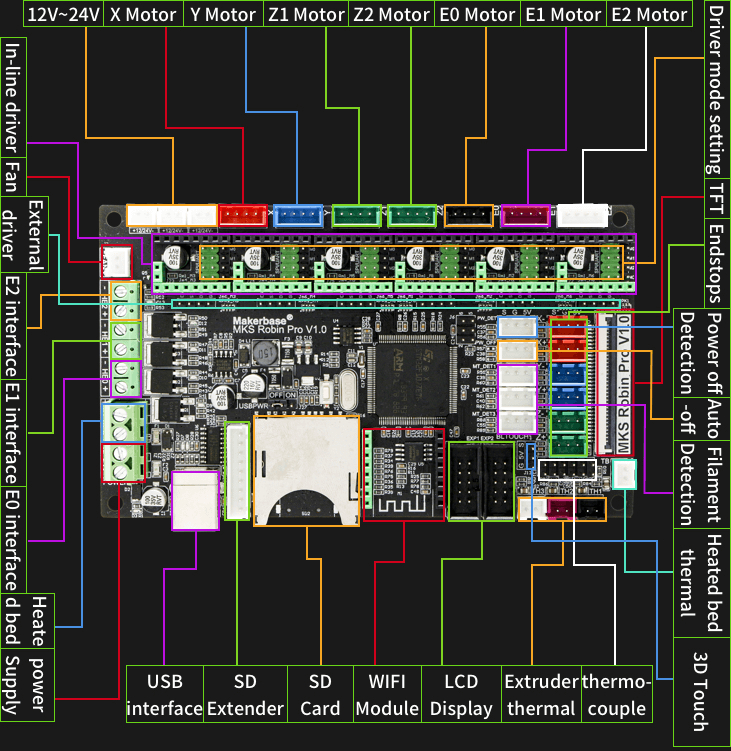

Wring:

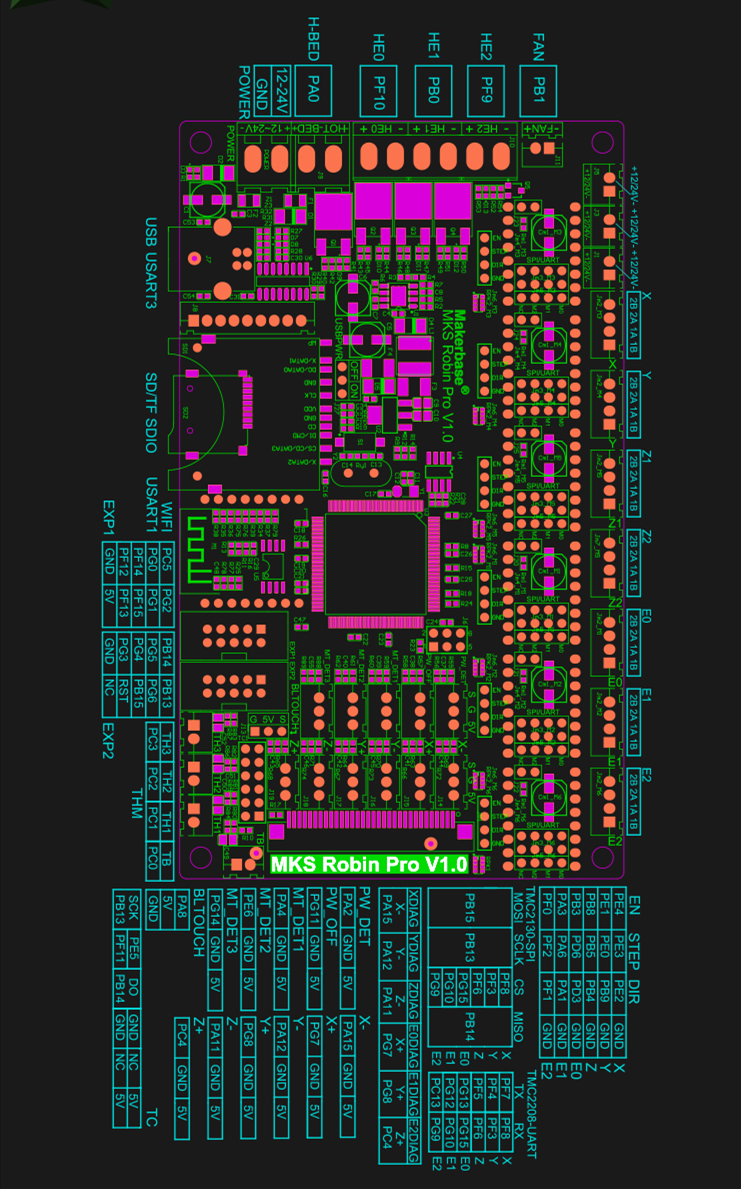

Pinout:

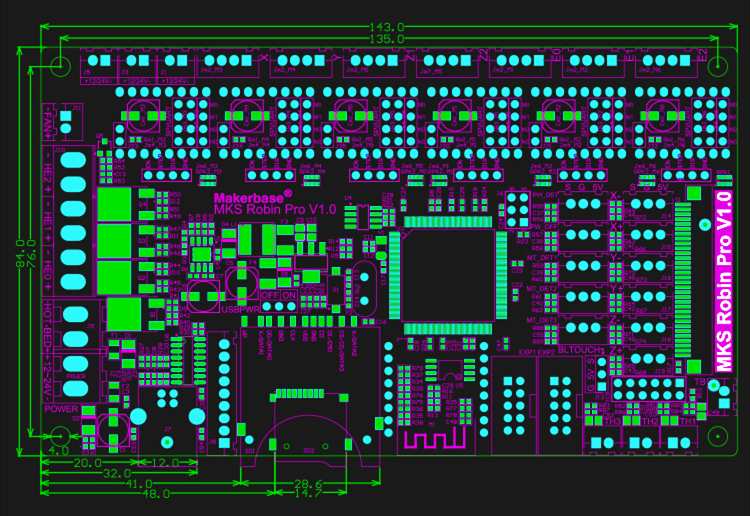

Size:
