Makerbase MKS SGen_L V1.0 3D Printer Control Board 32 Bit Motherboard w/ 5pcs TMC2208V2.0

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.49
  • Price in reward points: 305 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.88 $29.27 $28.36 $27.14 Contact US
Quantity:

Makerbase MKS SGen_L V1.0 3D Printer Control Board 32 Bit Motherboard w/ 5pcs TMC2208V2.0

Description:

MKS-SGEN_L is a 3D printer ARM motherboard by Makerbase. It uses a 32-bit Cortex-M3 LPC 1768 processor , running frequency is up to 100 MHz. It can be compatible with Smoothieware and Marlin 2.0 firmware. It support in-line drivers and external drivers. And the in-line driver is compatible with various modes (uart, spi, etc.). It is compatible with multiple LCD screens and MKS series touch screens. It is a versatile and cost-effective motherboard.

Specifications:
Motherboard model: MKS SGEN_L
Mounting hole size: 102mm × 76mm
Appearance size: 110mm x 84mm
Microprocessor: 32-bit Cortex-M3 (LPC 1768/100Mhz)
Input voltage: 12V~24V
Motor driver: TMC2130/2208/2100, 4988/8825
Temperature sensor interface: NTC100K/PT100
Display: support MKS TFT series screen and LCD screen
Support print file format: G-code
Recommended software: Cura/ Simplify3d/ Pronterface/ Repetier-Host
Firmware update: TF card update
Support machine structure: XYZ/deta/ kossel/ Ultimaker/corexy

Features:
1. Adopt 32-bit Cortex-M3 LPC 1768 chip, 100MHZ frequency, strong computing power, performance greatly improved.
2. It has both in-line drive port and external drive port, which is more expandable and selective.
3. Compatible with a variety of drivers and special modes (TMC2208 UART mode, TMC2130 SPI mode, etc.), dedicated port reservation, wiring settings are more convenient.
4. Support multiple open-source firmwares, including Smoothieware and Marlin V2.0.
5. Use high-quality circuit boards, and the corresponding pins of each interface are marked with silk screen for easier identification and modification.
6. Using a dedicated power chip, support 12V-24V power input.
7. Compatible with MKS LCD12864, MKS MINI12864 and other control boards developed by the Makerbase.
8. Compatible with all of MKS TFT touch screens.

Package List:
-1 x MKS SGEN_L Motherboard
-20 x Jumper Caps
-1 x USB Cable
-5 x MKS TMC2208V2.0 Drive
-5 x Heat Sink

Wring:

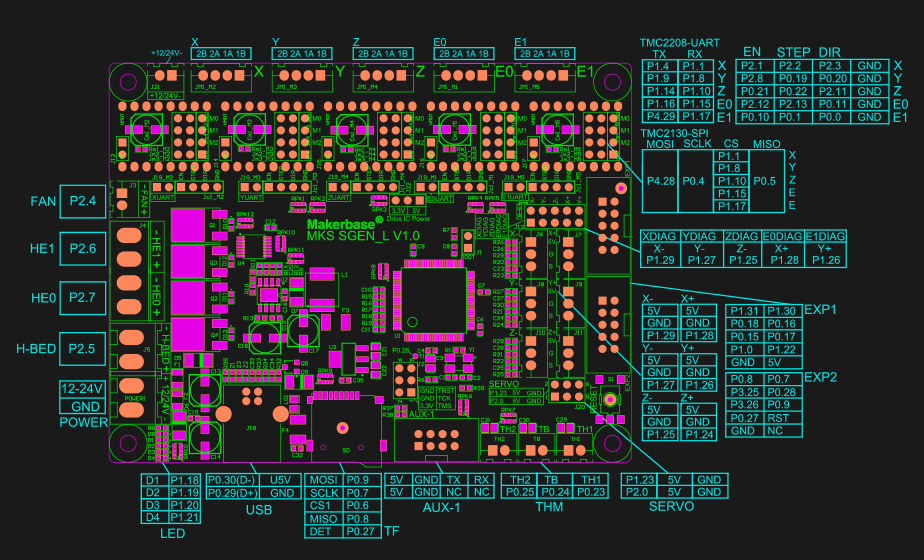

Pinout:

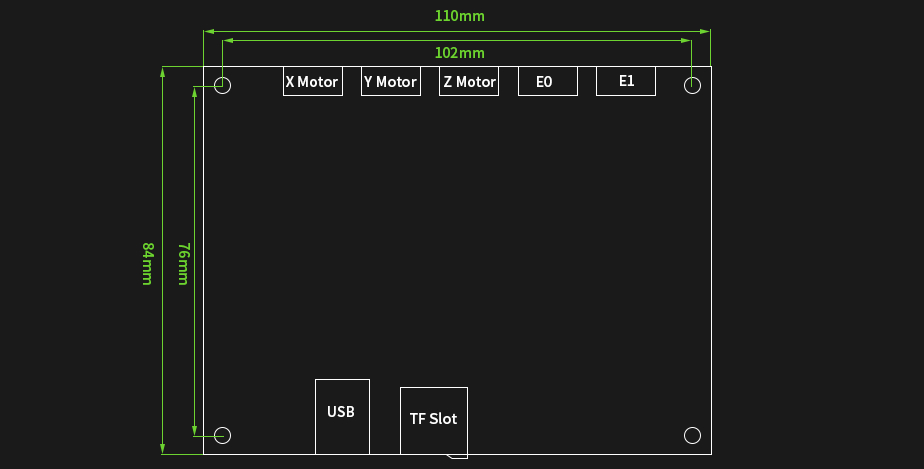

Size:



Motor Driver Setting:

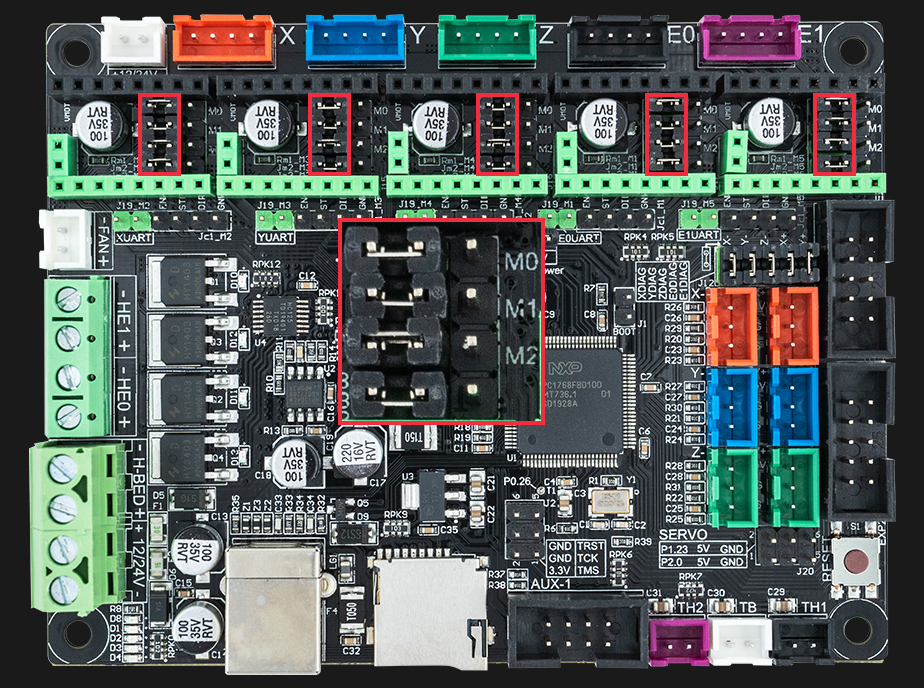

Step /dir Normal Mode:

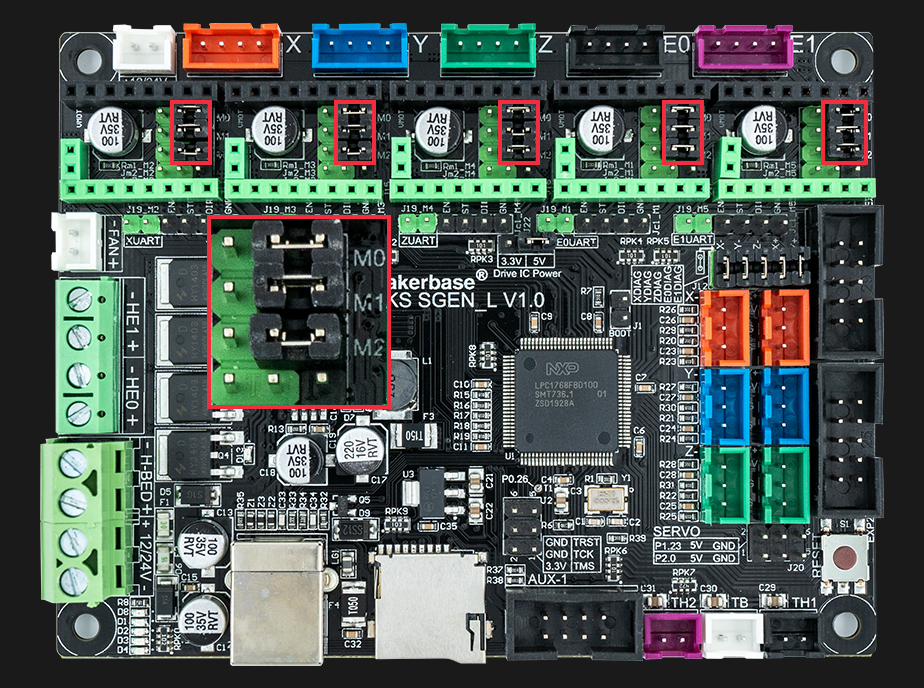

Uart Mode (MKS TMC2208 V2.0 / TMC2209 V2.0):



SPI Mode(MKS TMC2130_SGL):
