Malachite DSP SDR Radio Receiver V5 CNC Aluminum Shell with 1.10d Firmware Shortwave Radio (Blue Version)

Malachite DSP SDR Radio Receiver V5 CNC Aluminum Shell with 1.10d Firmware Shortwave Radio (Blue Version)

Description:
- Malachite DSP SDR receiver V52023 has been newly released, fixing all bugs in V4, including integrated option board, antenna switching, CNC aluminum shell, front speaker and 1.10d fully functional firmware.
- Instruction video: https://space.bilibili.com/50389953
- User manual download:
https://pan.baidu.com/s/1rh-rNiQe3cAyFzq-kfus-A?pwd=107m
Password: 107m

Specification:
- Frequency range: 10kHz ~ 250MHz, 400MHz ~ 2GHz
- Spectrum width: 160kHz, 80kHz, 40kHz
- Modulation type: AM, SSB, DSB, CW, NFM, WFM (Stereo RDS support)
- Sensitivity: 0.3uV up to 1GHz
- Dynamic range: 82dB

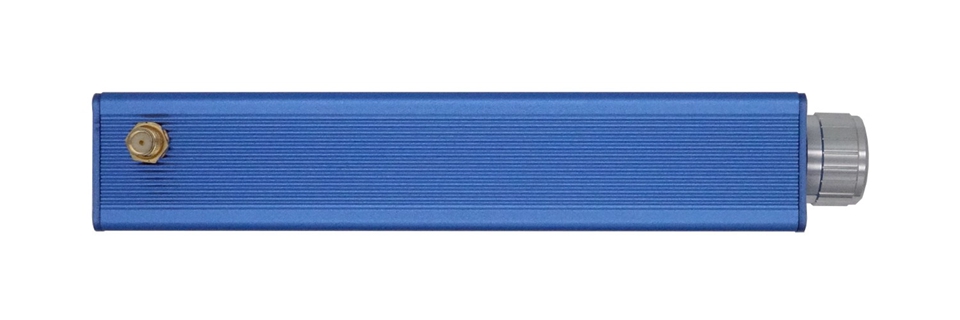

- Antenna interface: single antenna interface design, standard SMA female gold-plated connector, automatic switching between 50ohm and high impedance input mode, built-in RF preamplifier and 0 - 30dB programmable RF attenuator
- Battery capacity: built-in 3.7V 5000mAh large capacity lithium battery, 12hours service life for normal volume
- Software DSP function: variable filter width, adaptive squelch (NR), threshold squelch, noise canceler (NB), automatic gain control(AGC), automatic notch filter (ANF), RDS support Stereo FM, analog stereo, equalizer
- Hardware features: STM32H743 ARM CPU at 480MHz, MSi001 multi-band and multi-mode tuner, 3.5-inch 480x320 LCD display, capacitive touch screen, two mechanical encoders
- USB connection to personal computer capable of transmitting CAT, IQ and audio

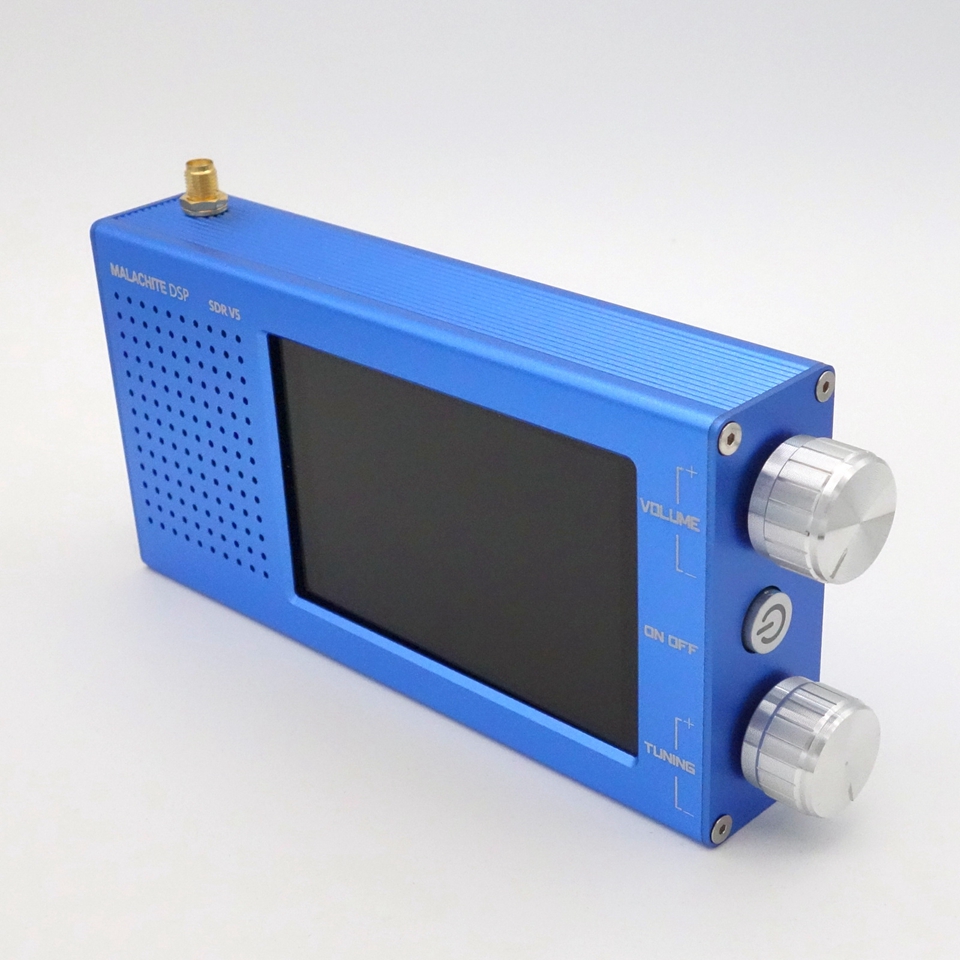

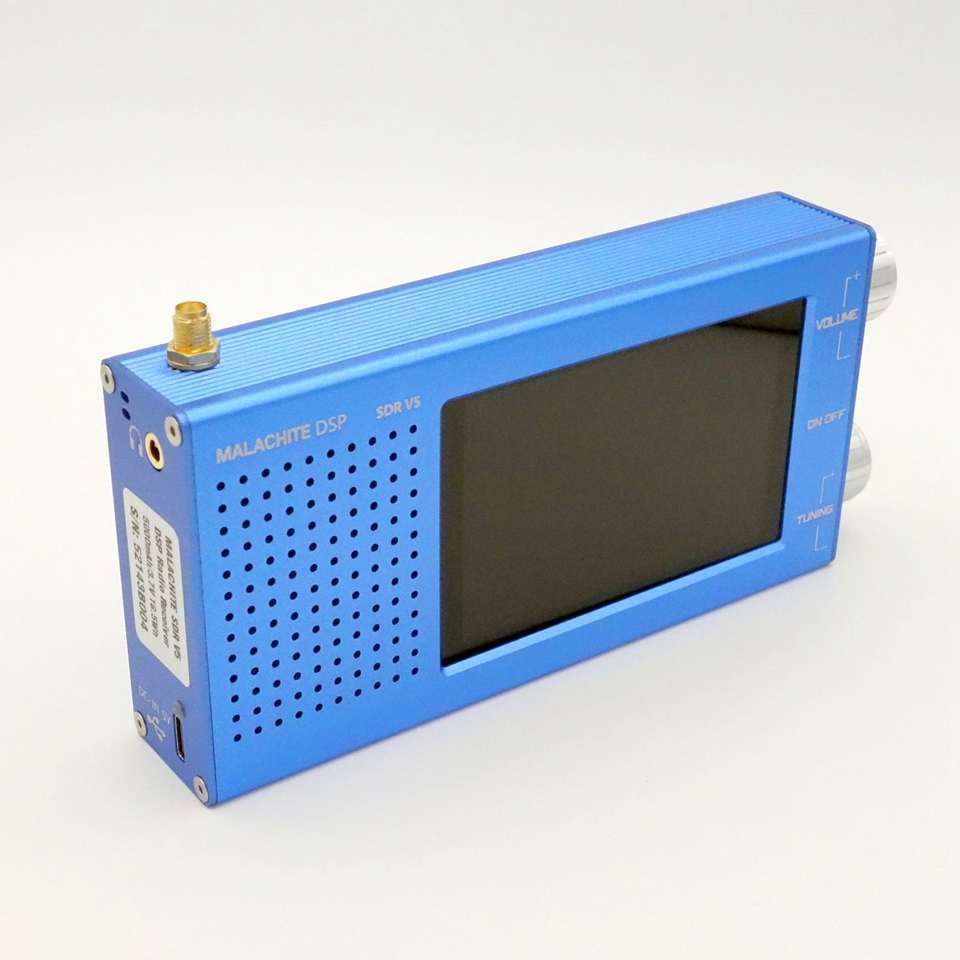

- CNC aluminum shell design, anodized
- Size: 162 x 74 x 29 mm (L x W x H) (without protrusions)
- Weight: 350g

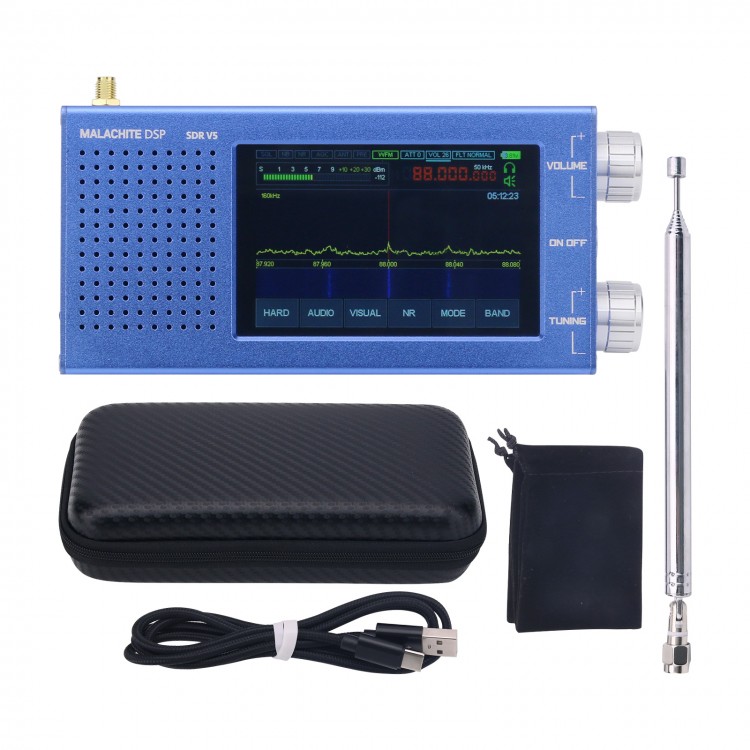

Package Included:
- 1 x Host
- 1 x Antenna
- 1 x EVA Protection Bag
- 1 x Type-C Data Cable
- 1 x Storage Bag
- 1 x User Manual

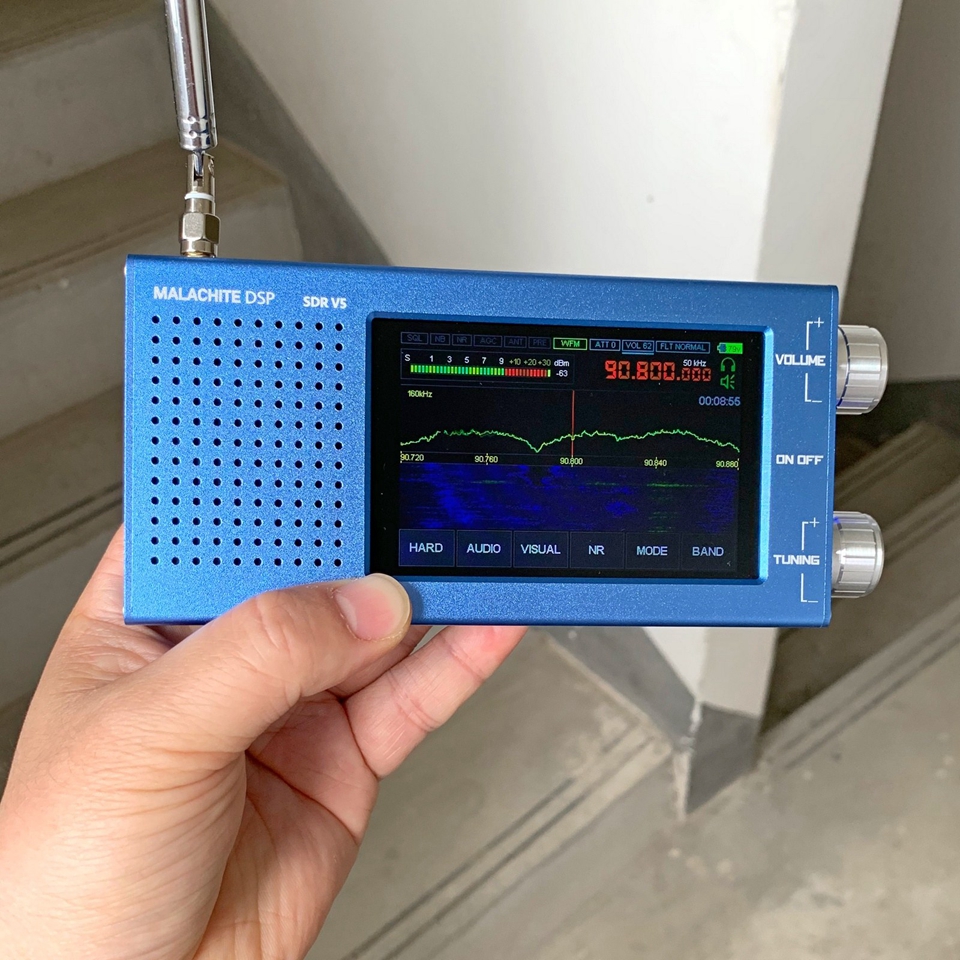

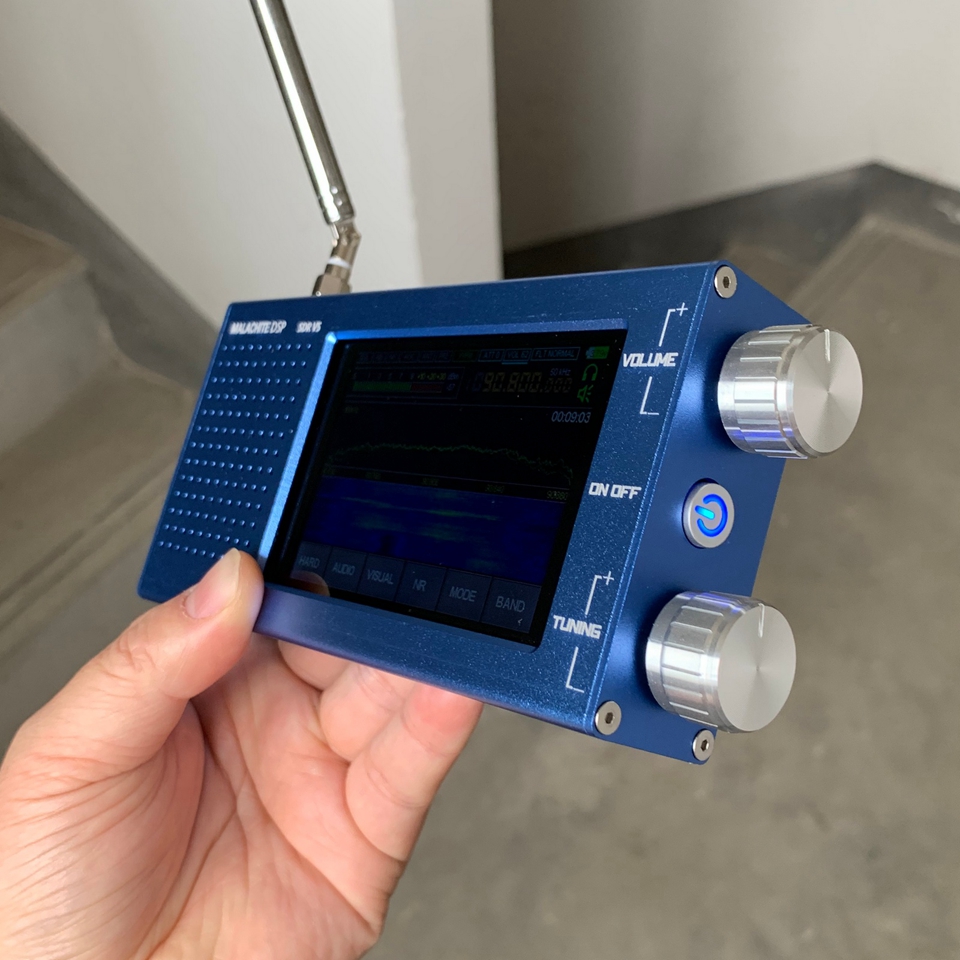

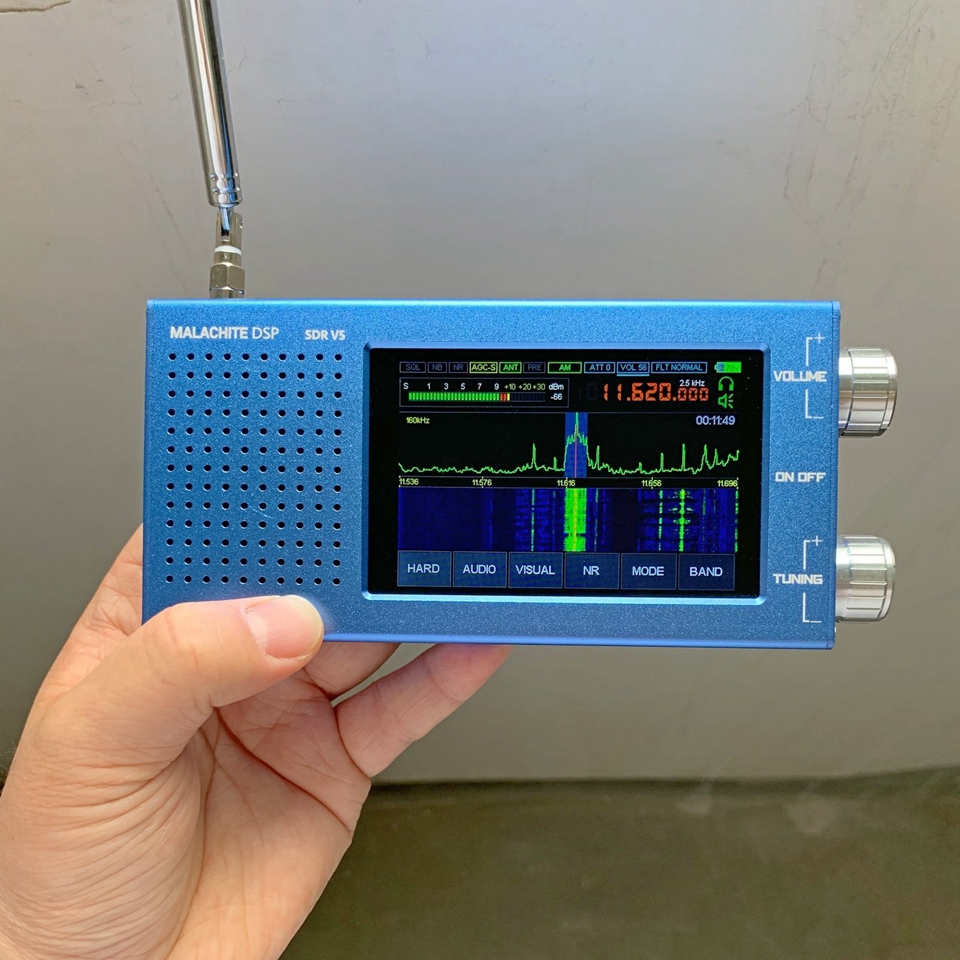

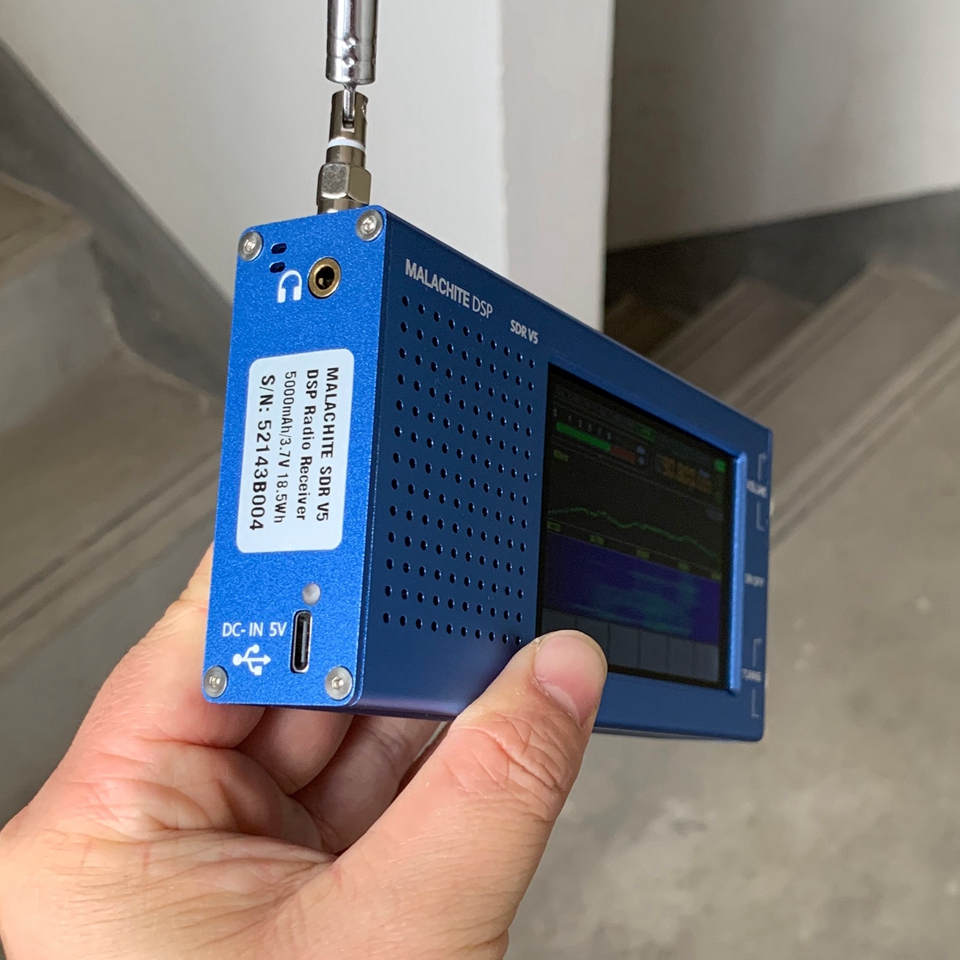

Receiving AM, SW and FM radio with whip antenna:

Compared with the size of a certain brand of radio:
