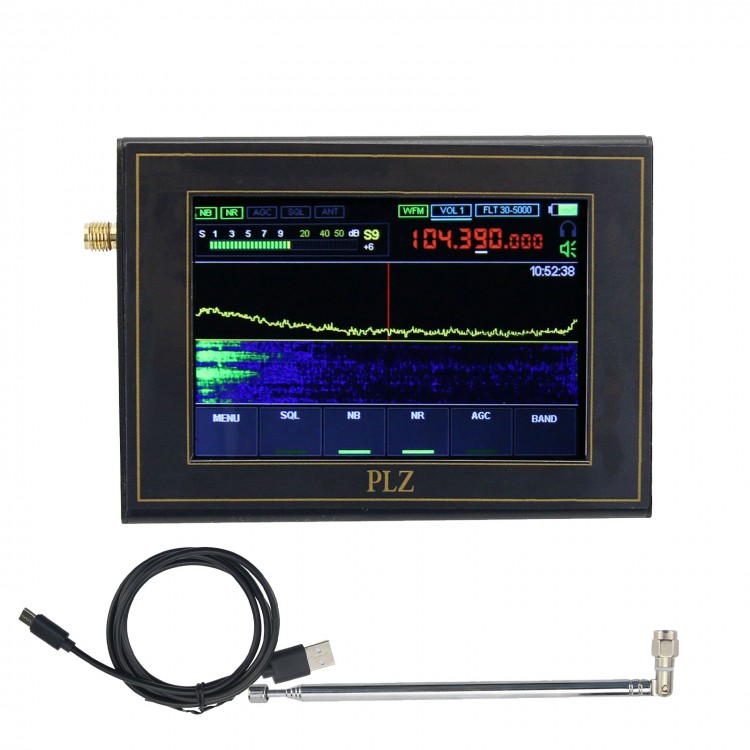

400MHz-2GHz Malachite SDR Receiver Malahit Shortwave Radio Receiver 3.5" Screen + Antenna Data Cable

400MHz-2GHz Malachite SDR Receiver Malahit Shortwave Radio Receiver 3.5" Screen + Antenna Data Cable

Advantages:
- Aluminum alloy shell
- Malahit DSP SDR Receiver
- 3.5" IPS display touch screen
- Frequency range: 400MHz-2GHz
- Demodulation mode: AM, SSB, NFM, WFM

Product Parameters:
1) The radio is constructed based on SDR principle, and the function is determined by loaded software.
2) The frequency range is from 400 MHz to 2 GHz (Registered upgrade version. Firmware has been upgraded).
3) All types of analog modulation: AM, SSB, NFM, WFM;
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker, AGC, equalizer.
5) Use fully functional chip msi001;
6) The powerful stm32h743 with a clock frequency of 480 MHz is applied.
7) 3.5-inch IPS display touch screen.
8) There is a built-in UHF.
9) Control 2 encoders with buttons and touch screen.
10) The power supply is supplied by the external TYPE-C (for Huawei mobile phone) interface and can be charged by TYPE-C. The internal battery voltage is 3.7V and the capacity is 2500mAh.
11) The current consumption when listening to headphones is 300mA.
12) Built-in receiving module in order to improve the HF reception on antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design.
13) Connect to a computer via USB, you can transmit CAT, IQ and audio.
14) 160 kHz span, with scalability.
15) Sensitivity-Under the condition of up to 250MHz, 0.3μV = 10dB at s / w.
16) Thanks to the characteristics of the msi001 chip used, dynamic blocking range is about 85dB.
17) There is backlight control.
18) SMA female antenna socket;
19) Dimensions 102 x 74 x 29mm (excluding sizes of protrusions).
20) Weight 240g.

Package Included:
- 1 x SDR Receiver
- 1 x Antenna
- 1 x Data Cable

Note:
- 400MHz to 2GHz version (registered upgrade version) broadens the frequency and is added with CW decoding and other functions.
- Its firmware has been upgraded.
