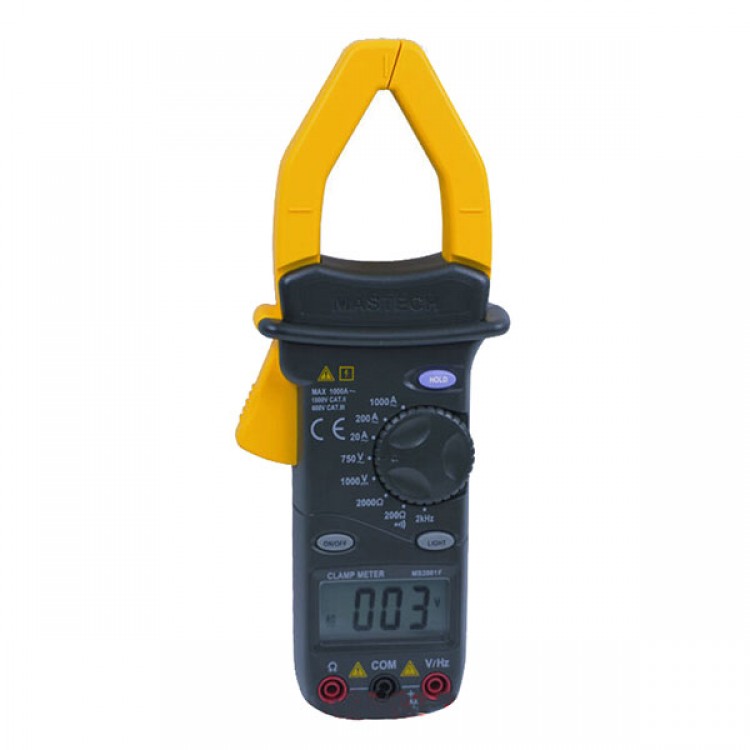

• MASTECH MS2001F 31/2 bit AC Digital Clamp Continuity / Diode Test

MASTECH MS2001F 31/2 bit AC Digital Clamp Continuity / Diode Test

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.39
  • Price in reward points: 364 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.66 $34.93 $33.84 $32.39 Contact US
Quantity:

MASTECH MS2001F 31/2 bit AC Digital Clamp Continuity / Diode Test

Overview

- MS2001F is a stable performance, safe and reliable 3 ½ digit clamp meter. Whole circuit design LSI double integral A / D converter as its core, and with overload protection circuit, making it a superior performance of electrical instruments.
- This series of instruments that can be used to measure AC and DC voltage, AC current, resistance, temperature, diodes, circuit continuity and power transmission line voltage frequency of testing. For the user to be selected.
Instrument has a backlight, user-friendly read out the measured value display in a dark place.

Technical indicators
- Accuracy: (% of reading + digits), 1 year warranty.
- Ambient temperature: 18 to 28C. Humidity: not more than 75%.
- Temperature coefficient: 0.1 × precision / 1C.

General Characteristics
- Maximum voltage between the voltage input terminal and ground: 1000V CAT2 And 600V CAT3.
- Display: LCD display with maximum reading of 1999.
- Measuring principle: double integral A / D conversion.
- Range selection: Manual.
- Measurement rate: 2.5 -3 times / sec.
- Unit display: a function, power unit symbol is displayed.
- Polarity display: a negative input display "-" symbol.
- Over range indication: "1."
- Data hold function: the top LCD display "."
- Backlight function: the backlight is lit, automatically turns off 7-8 seconds.
- Low battery indication: LCD top left of the display "."
- Power Battery: 1604 6F22 006P 9V.
- Dimensions: 250mm × 99mm × 43mm.
- Quality: should not exceed 480g.
- The maximum size of clamp opening: 42mm.
- Ambient temperature: 5C-35C.
- Storage temperature: -10C-50C.
