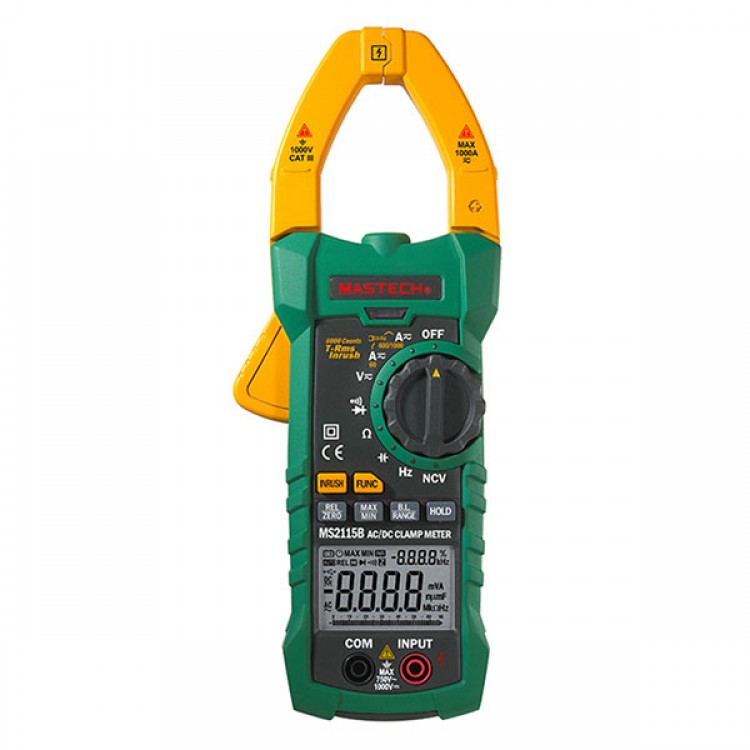

MASTECH MS2115B True RMS Digital Clamp Meter Multimeter DC AC Voltage Current Ohm Capacitance Frequency Tester with USB
Features:
- Dual Display with 6000 counts
- Jaw size up to Φ40mm/1.6 inch
- Auto Ranging and Manual Ranging
- DC/AC current measurement up to 1000A
- Tests AC/DC voltage and current, resistance, capacitance, frequency and duty cycle
- Relative Measurement
- Diode 2.7V
- Continuity Buzzer <50 ohm
- MAX/MIN Value Measurement
- Data Hold
- Display Backlight and Work Light
- Low Battery Display
- Auto Power Off
- True RMS (True Root mean Square Measurement)
- NCV (Non-Contact Voltage Detector)
- Inrush (Inrush Current Measurement)
- USB interface (Windows OS)
Technical Specifications:
|
Specifications |
Range |
Accuracy |
|
DC Voltage |
600mV/6V/60V/600V |
±(0.5% + 3) |
|
1000V |
±(0.8% + 2) |
|
|
AC Voltage |
600mV/6V/60V/600V |
±(0.8% + 3) |
|
750V |
±(1% + 4) |
|
|
DC Current |
60A/600A/1000A |
±(3.0% + 3) |
|
AC Current |
60A/600A/1000A |
±(2.5% + 3) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ |
±(1.0% + 3) |
|
60MΩ |
±(1.5% + 3) |
|
|
Capacitance |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF |
±(4.0% + 3) |
|
Frequency(From Clamp) |
0~10kHz |
±(1.5% + 5) |
|
Frequency(AC Voltage) |
0~10kHz |
±(1.5% + 5) |
|
Logic Frequency |
0~60MHz |
±(0.5% + 3) |
|
Duty Cycle |
10%~90% |
±3.0% |
Package includes:
- 1 * MS2115B DC/AC Clamp Meter (with test leads)
- 1 * USB communication cable
- 1 * MS2115B communication software CD
- 1 * User manual
Pls note that battery is not included in the package
