MAT-1500Pro General High Power Automatic Antenna Tuner Shortwave Radio for YAESU ICOM with 3 Working Modes
Features:
- Frequency range: 1.8 ~ 54MHz
- 16000 data storage channels. When the radio station switches to the previously tuned frequency, the tuning settings will be synchronized automatically, and there is no need to tune again.
- 3 Working modes: for YAESU mode, for ICOM & KENWOOD mode and general mode. When in dedicated mode, you need to use the data cable of the corresponding brand radio station. (not included)
- Two antenna interfaces allow for simultaneous connection of two antennas and easy switching.
Specification:
- Power: ≤1500W (SSB); 800W (digital mode)
- Frequency range: 1.8 - 54.0MHz
- Tuning time: ≤5S
- Power supply: provide by radio (it need external power supply in general mode)
- Applicable antenna: Dipole antenna, Monopole antenna, Yagi antenna and most of coaxial feed antenna.
- Storage channel number: 16000
- Size: 290 x 243 x 78mm
- Weight: 3.5kg
- Applicable machine: general

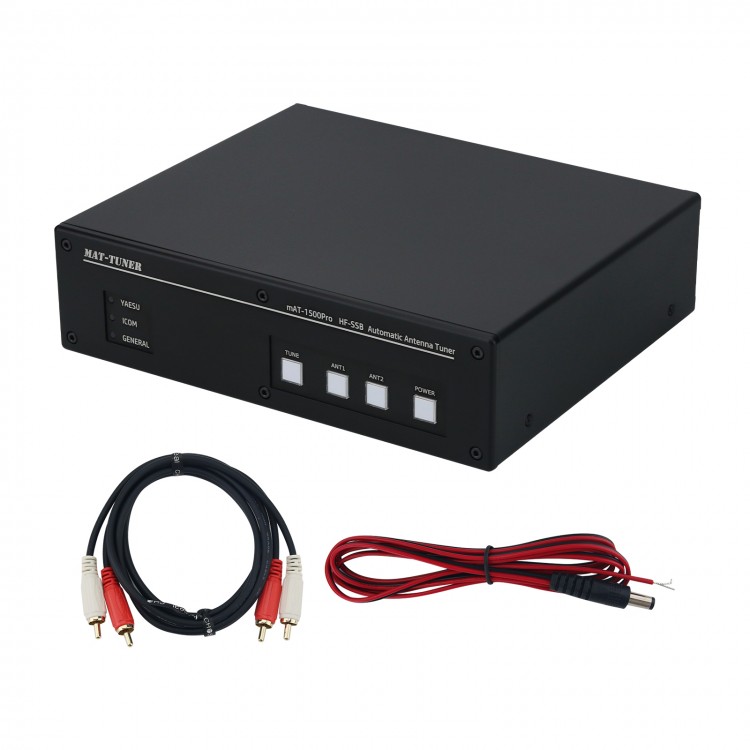

Package Included:
- 1 x Host
- 2 x RCA Data Cable
- 1 x 6.5mm DC Power Cable
Note:
- Do not plug or unplug cables when power on.
- Do not switch antennas during transmission.
- Take proper grounding measures.
