Features
- The MAT-40 is a versatile long-line antenna tuner that can support Yaesu, Icom, Kenwood and other brands of radios with different interface cables,.
- The tuner housing is produced in an aluminum milling process that is aesthetically pleasing, compact, compact and rugged for use in a variety of demanding outdoor applications.
- The tuner is only 20cm which is one of the smallest outdoor antenna tuners in the world.
- MAT-40 also can provide 16,000 memory locations. When tuning near a previously used frequency it will recall the settings for nearly instant tuning.
- More function are elaborated in our English manual.
Parameters
- Maximum power: 120W
- Operating frequency: 3M-54MHz
- Working mode: fully automatic
- Adjust standing wave: most antennas can be adjusted to below 1.5 standing waves
- Working power supply: use ICOM/YAESU/Kenwood interface and power from the radio
- Antenna impedance: 5-1500Ω
- Dimensions: 130mm(W)*200mm(L)*45mm(H)
- Net weight: 1000g
Packing List

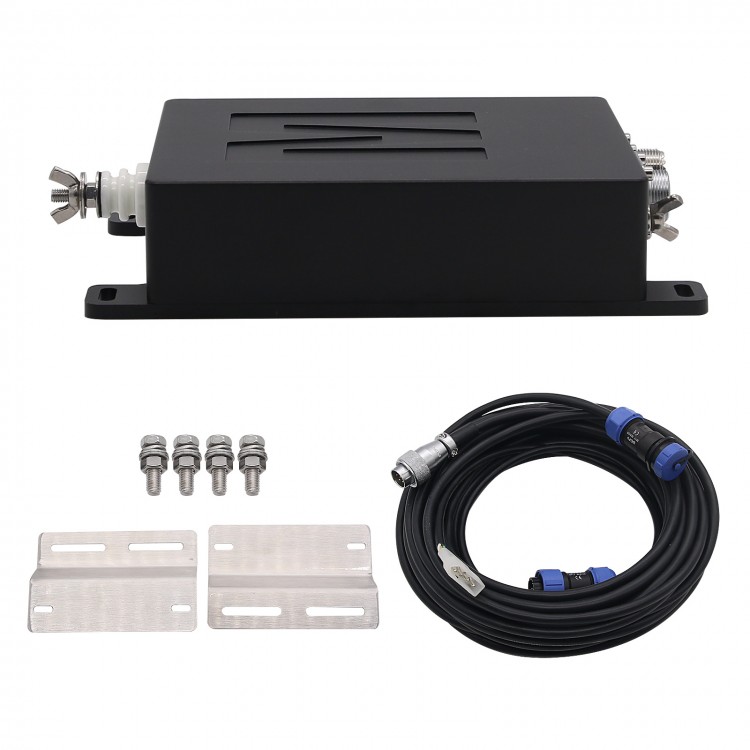

- 1*MAT-40 Automatic Antenna Tuner
- 1*Data Cable
- 1*Cable For ICOM/YAESU/Kenwood (optional)
- 1*English Manual
