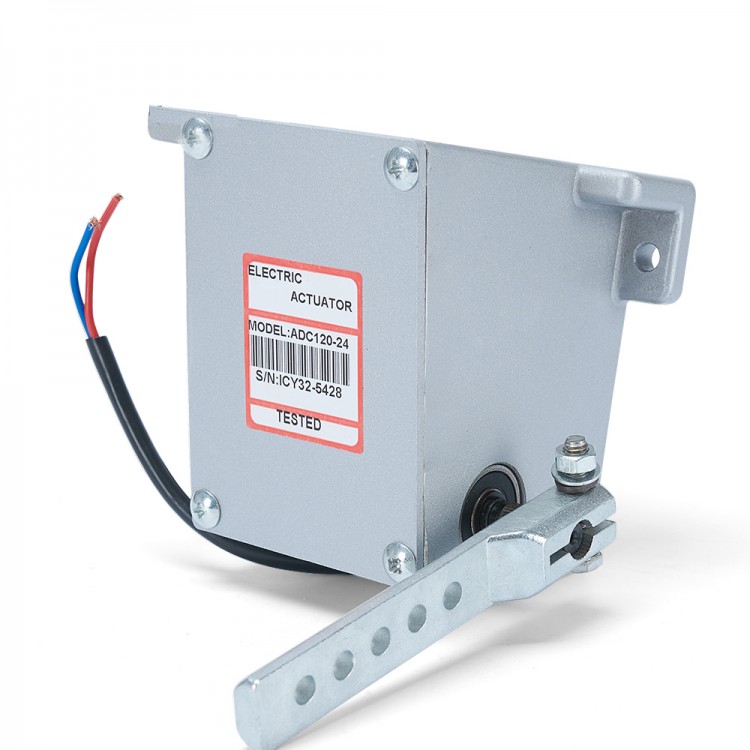

Maxgeek ADC120 Diesel Generator Set Actuator ESC Electronic Throttle Brake Speed Controller 12V/24V
Description:
It is suitable for ESD55000E, ESD5111 speed governor to control engine speed, featuring good performance, longevity and stability.
Specification:
Available Torque: Max1.0Lb-ft(1.4Nm)
Maximum Operating Shaft Angular Travel: 25±1 degree CW/CCW
Operating voltage: 12V/24V DC
Normal Operating Current: 2A at 12V DC ; 1A at 24V DC
Maximum Current Continuously Rated: 6A at 12VDC ; 3 A at 24VDC
Temperature Range: -54℃ to 95℃
Relative Humidity: up to 100%
Weight: 2.3 kg
Features:
-All surface finishes fungus proof and corrosion resistant
-Mounting any position, electrical connector at the top preferred
-Vibration up to 20G @50-500Hz
Mating Hardware:
-Connector supplied with actuator
-Lever LE1500-2
-Rod end bearings(to attach a 12#20 HD linkage rod to lever) ,BR100(right hand) ,BR101(left hand)
-Wiring harness ADC120 4ft. Harness supplied with actuator, other length available from actuator
Package List:
1 x Actuator Set
Note: 12V or 24V optional.
