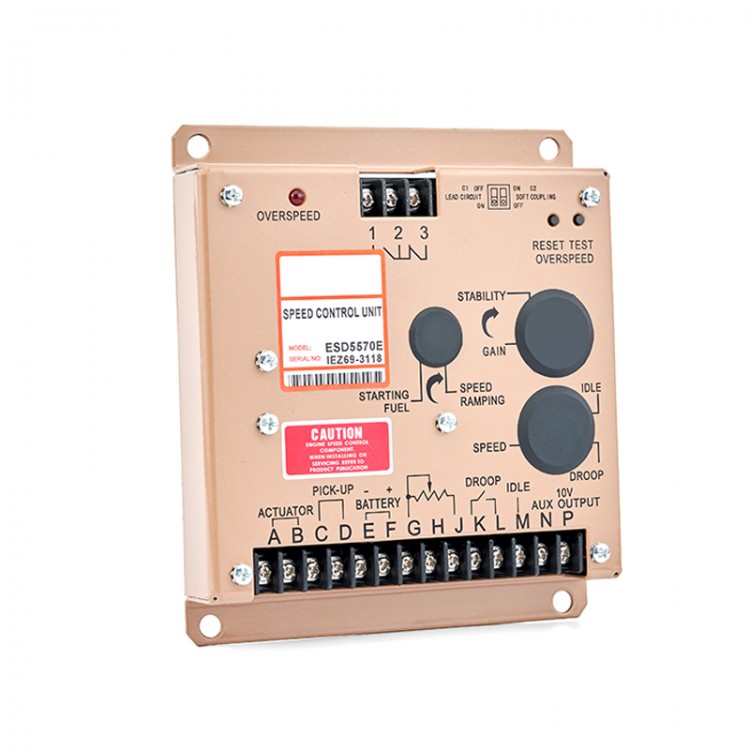

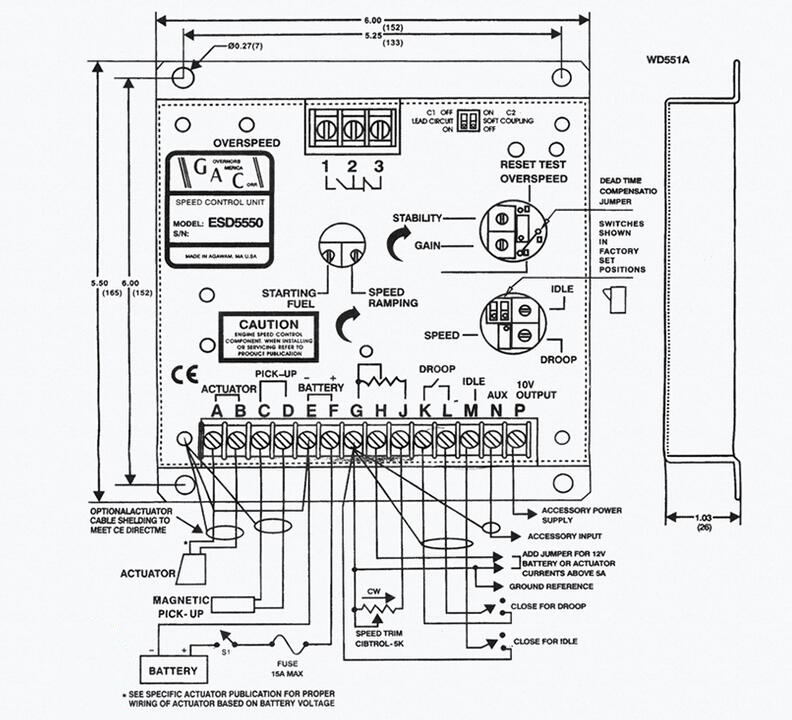

Maxgeek ESD5570E Diesel Generator Speed Controller Electronic Speed Governor GAC Speed Control Board

Maxgeek ESD5570E Diesel Generator Speed Controller Electronic Speed Governor GAC Speed Control Board

Description:
The speed control unit is an all electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.

Specification:
Isochronous Operation/Steady State Stability: ±0.25% or better
Speed Range/Governor: 1K-7 5K Hz continuous
Speed Drift with Temperature: ±1% Maximum
Idle Adjust CW: 60% of set speed
Idle Adjust CCW: less than 1200Hz
Droop Range: 1-5% regulation
Droop Adj. Max (K-L Jumpered): 400Hz , ±75Hz per 1.0 A change
Droop Adj. Min (K-L Jumpered): 15Hz , ±75Hz per 1.0 A change
Speed Trim Range: ±200Hz
Remote Variable Speed Range: 500-7.5Hz, or any part thereof

Terminal Sensitivity:
J: 100Hz, ±15Hz/Volt @ 5.0K impedance
L: 735Hz, ±60Hz/Volt @ 65K impedance
N: 148Hz, ±10Hz/Volt @ 1Meg. impedance
P: 10V DC supply @ 20ma Max

Speed Switch Adjustment Range: 1000-10000Hz
Operating Temperature Range: -40℃ to 80℃
Relative Humidity: up to 95%

Input Power:
Supply: 12 or 24V DC battery system (transient and reverse voltage protected)
Polarity: negative ground (case isolated)
Power Consumption: 50mA continuous plus actuator current
Maximum Actuator Current at 25: 100Amps continuous
Speed Sensor Signal: 0.5-120V RMS

Package List:
1 x Speed Controller
