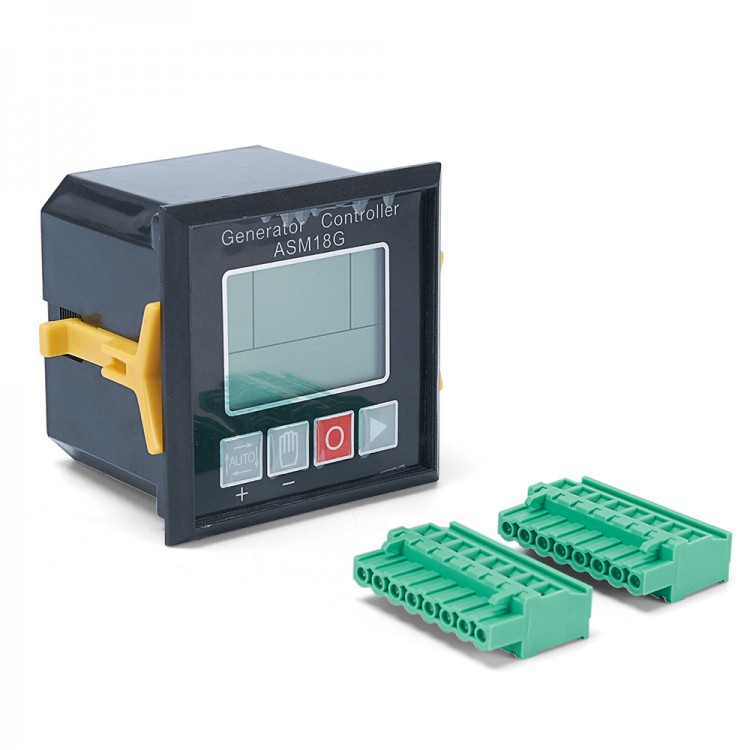

Maxgeek ASM18G Generator Controller Diesel Genset Auto Start Control Module Panel w/ Protection Alarm

Availability: In stock, usually dispatched in 1 business day

  • Price:$45.45
  • Price in reward points: 455 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.54 $43.63 $42.27 $40.45 Contact US
Quantity:

Maxgeek ASM18G Generator Controller Diesel Genset Auto Start Control Module Panel w/ Protection Alarm

Description:

ASM18G generator set is automatic control and security modules. It can be selected by pressing a button on the module panel manual or automatic control mode, manual mode, stop the generator set can be opened by pressing a button on the control panel, manual; in automatic mode, the default remote start switch input signal to automatically open to stop generator sets. Module operating status and operating parameters using the LCD display generator.

Features:
-Using a microprocessor core.
- Flexibly set operation through the panel buttons and LCD protection parameters.
-Measurements show that the generator frequency and voltage, battery voltage, engine speed, water temperature, oil pressure, fuel oil, and run-time parameters.
-Rd relay outputs, in addition to the fuel valve and start output is fixed , and the remaining three-way customizable by the user.
-Custom three-way switch input.
-Three analog inputs, which are used to connect the water temperature , oil pressure and fuel sensor.
-Optional ATS dual power switch control signal , eliminating the need for ATS switch controller , reducing overall system cost.
-Optional idle speed control signal and increases the speed control signal applied to the electronic engine speed and mechanical governor.
-Optional preheating , the alarm output signal.
-Built-in communication ports, parameters can be set via the PC USB port.
-Support MODBUS communication protocol, optional communication module 485 can be remotely monitored via PC.
-Pluggable quick-connect terminals, wiring, moving, maintenance, replacement and more convenient.
-High-voltage power supply designed to withstand the removal of the battery, the charger voltage surges caused by the impact, more reliable.

Package List:
1 x Generator Controller
