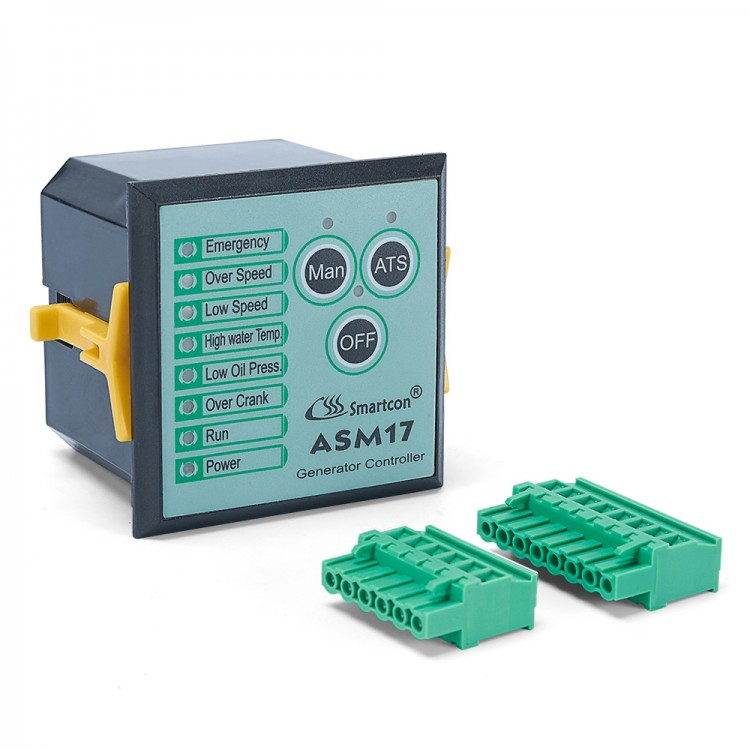

Maxgeek ASM17 Generator Controller Auto Start Control Panel Genset Control Module w/ Multiple Protections
Description:
The module ASM17 is a low-cost generator controller equipped with auto start/stop functions, protections, alarm and annunciation etc. Monitoring and protections include: Emergency, Over Speed, Low Speed, High Water Temperature, Low Oil Pressure, Over Crank, Run, Power.
Specifications:
DC Supply: DC 8-36V
Power Consumption: MAX 5 W
Measuring Frequency: 0-80Hz AC Volt: 25V-300V
Relay Output:
Start Output: 2 A
Valve Output: 2 A
Idle/Pre-heat Output: 2 A
Alarm Output: 2 A
Stop Output: 2 A
Dimension(W*H*D): 72mm*72mm*58mm
Panel Cut-Out(W*H): 68mm*68mm
Ambient Temperature Range: -10℃~85℃
Button:
OFF: Stop running engine / Reset Alarm.
ATS: Auto Start function by detected ATS terminal l2.
MANUAL: Manual start engine
Protections and Parameters:
Auxiliary shutdown protection: 1 sec,N.C
Over speed protection: 2sec, 55/66 Hz
High water temp. protection: 2 sec, N.O
Low oil press. protection:2 sec, N.C/N.O
Over crank: 3 attempts
Cranking speed up limited: 0.5sec 16 Hz
Protection hold-off timer: 5 sec
Package List:
1 x Generator Controller
