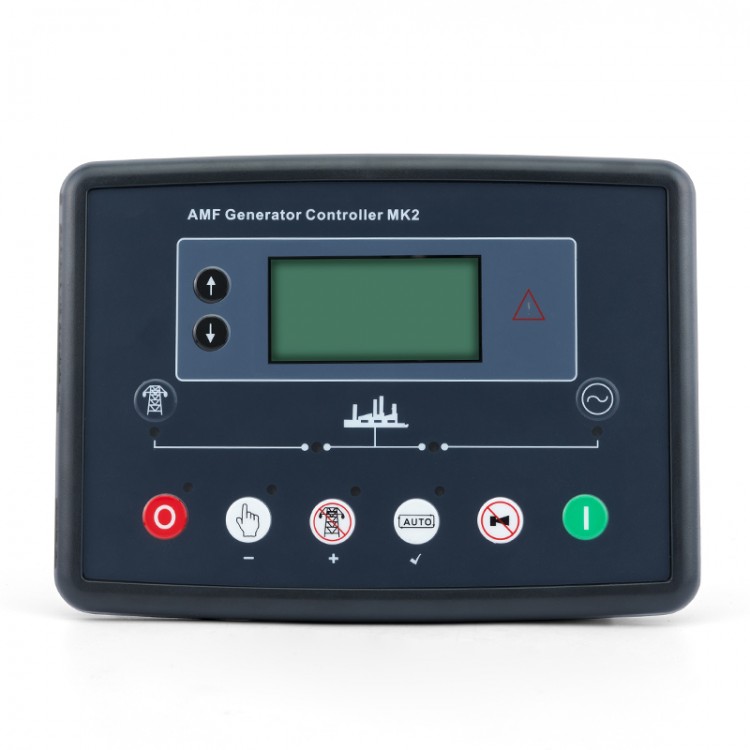

Maxgeek DSE6020MK2 Generator Controller Genset Control Panel Module LCD Screen w/ AMF Function

Availability: In stock, usually dispatched in 1 business day

  • Price:$137.81
  • Price in reward points: 1378 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $135.05 $132.30 $128.16 $122.65 Contact US
Quantity:

Maxgeek DSE6020MK2 Generator Controller Genset Control Panel Module LCD Screen w/ AMF Function

Description:

The 6020 generator controller is an auto start control module and the DSE6020 generator controller is an auto mains failure control module, suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.
Generator controller DSE6020 offers electronic (CAN) and non-electronic (magnetic pick-up alternator sensing) engine versions and offer a number of flexible inputs outputs and engine protections so the system can be easily adapted to suit a wide range of application demands. The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.

Specification:
Overall size: 216*158*43mm
Panel cutout size: 184*137mm
Maximum panel thickness: 8mm

DC supply:
Continuous voltage rating: 8V to 35V
Maximum operating current: 10mA at 12V, 105mA at 24V
Maximum standby current: 60mA at 12V, 55mA at 24V

Mains (utility):
Voltage range: 15V to 415V AC (Ph to N), 26V to 719V AC (Ph to Ph)
Frequency range: 3.5Hz to 75Hz

Outputs:
Output A (fuel): 10A short term, 5A continuous, at supply voltage
Output B (start): 10A short term, 5A continuous, at supply voltage
Auxiliary outputs C, D, E, F: 10A short term, 5A continuous, at supply voltage

Generator:
Voltage range: 15V to 415V AC (Ph to N), 26V to 719V AC (Ph to Ph)
Frequency range: 3.5Hz to 75Hz

Magnetic pick-up:
Voltage range: +/-0.5V to 70V
Frequency range: 10,000Hz (max)

Features:
-Back-lit icon LCD display
-Front panel editing
-LED and LCD alarm indication
-Power Save mode
-CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
-PC and front panel configuration
-4 digital inputs
-3 analogue inputs
-6 outputs (4 configurable on Magnetic Pick-up/Alt, 6 configurable on CAN version)
-Configurable timers and alarms
-Alternative configuration
-Event Log (5)
-Remote Start input
-3 Phase generator monitoring
-Current monitoring and protection
-Power monitoring (kw, kvA, KV Ar)
-3 Phase Mains (Utility) monitoring (DSE6020 only)
-Test button (DSE6020 only)
-Battery Voltage monitoring
-Engine pre-heat
-Hours counter
-Comprehensive shutdown or warning on fault condition

Advantages:
-Automatically transfers between mains (utility) and generator power (DSE6020 only)
-Hours counter provides accurate information for monitoring and maintenance periods.
-User-friendly set-up and button layout
-Multiple engine parameters are monitored simultaneously
-Module can be configured to suit individual applications
-Compatible with a wide range of CAN engines
-Uses DSE Configuration Suite PC software for simplified configuration
-IP65 rating (with optional gasket) offers increased resistance to water ingress
-Licence-free PC software

Package List:
1 x Generator Controller
