Maxgeek DC10G Generator Set Controller Manual Start Stop Control Module Replace for DKG155DC10K DSE501K

Availability: In stock, usually dispatched in 1 business day

  • Price:$63.78
  • Price in reward points: 638 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.50 $61.23 $59.32 $56.76 Contact US
Quantity:

Maxgeek DC10G Generator Set Controller Manual Start Stop Control Module Replace for DKG155DC10K DSE501K

Description:

The DC10G is a controller for manual start and stop of the engine. The 4-bit LED digital tube displays the generator set frequency, voltage, battery voltage, and accumulated working time. It has various parking protection and alarm indication functions, which can conveniently monitor the working status of the generator set.
The controller can be connected to the computer through the data line, and the controller parameters can be set by software to easily match the generator set of more specifications.

Specification:
Power supply: 8-33V DC
Power consumption: Max 2W (working)
Alternator voltage input: 5-300V AC, 50/60Hz
Speed input: Frequency 300Hz~10kH
Fuel output: Max 16
Start output: Max 10
Excitation Output: Max 80
Alarm output: Max 16
Operating temperature: -30℃~75℃
Storage temperature: -40℃~85℃
Dimensions: 8 x 78 x 72mm
Panel cutout: 67 x67mm

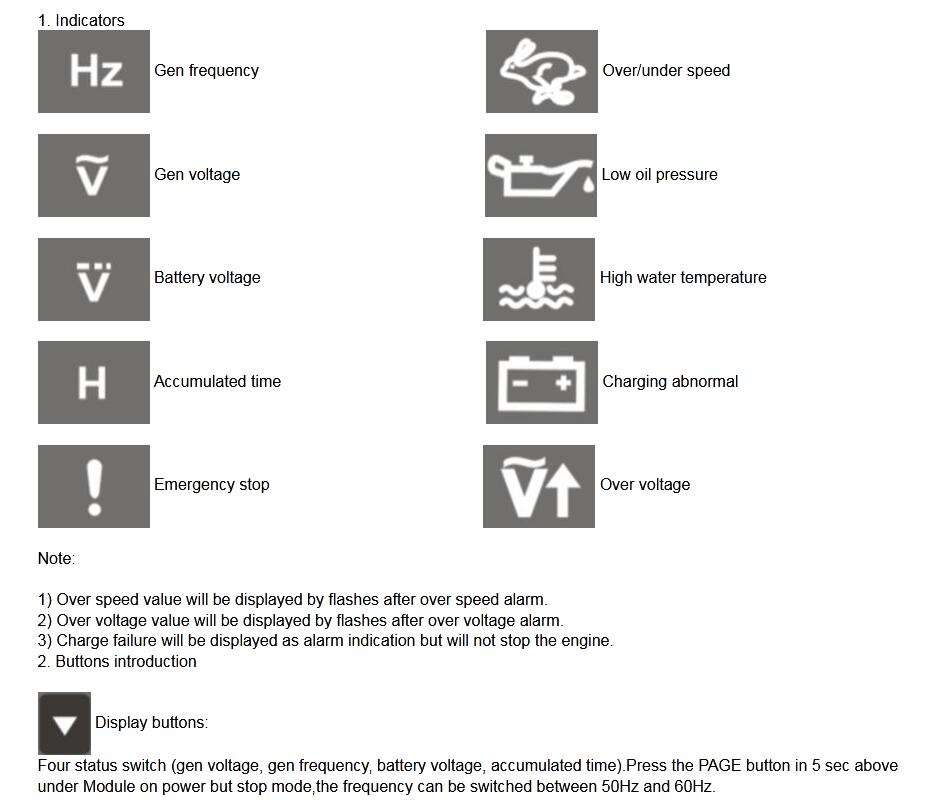

Panel Introduction:



Operation:

1. Power on: Switch "0" to "I" till the tube is lighted, In the procession of cranking, over speed indicator will be lighted if the crank is not successful after 45sec. (controller will cut off fuel solenoid’s output and come into protection)
2. Start running: Switch "I" to "II" till engine started. Once power on the engine, it will be cranked. The controller will come into running status after 8 sec if cranking successfully. Then the controller will monitor the relative parameters and set protection. (the controller will cut off fuel solenoid output and display the alarm status if the genset stops.) Please Switch from "I"to "0".
3.Stop and reset: Switch from "I"to "0" and take off the power.

Parameter Setting:
Please connect the module to PC by communication cables and powered on.
1. Alarm setting:
-Over speed alarm: 1710RPM(Rated 50Hz), 2040RPM(Rated 60Hz), range: 0-4000RPM, when the RPM is over this value and keep more than 1sec, then the controller will alarm and stop.
-Over frequency alarm: 57Hz(Rated 50Hz), 68Hz (Rated 60Hz), range:40-80Hz, when the frequency is over this value and keep more than 1 sec, then the controller will alarm and stop.
-Low frequency alarm: 20Hz, range: 20-60Hz,when the frequency is lower than the value and keep more than 5sec, the controller will alarm and stop.
-Over voltage alarm: 500V, range: 50-500v, 500V is set as forbidden. When the voltage is over this value and keep more than 5sec, then the controller will alarm and stop.
-Charging failure D-value: 6V, range: 1-24V, when the different value between charging D+ and Battery B+ is over this value and keep more than 5sec, then the controller will alarm.

2. Display setting:
-Four Screen self-cycling display: the parameters shall be switched timely according to the interval time setting after choosing this option.
-Homepage option: one parameter can be displayed as homepage display after choosing this function. The page will be switched automatically after pressing page change button for a while.
-Revert-back delay: the time to revert back to homepage.
-Self-cycling display time: the interval time setting.​

Package List:
1 x Generator Controller
