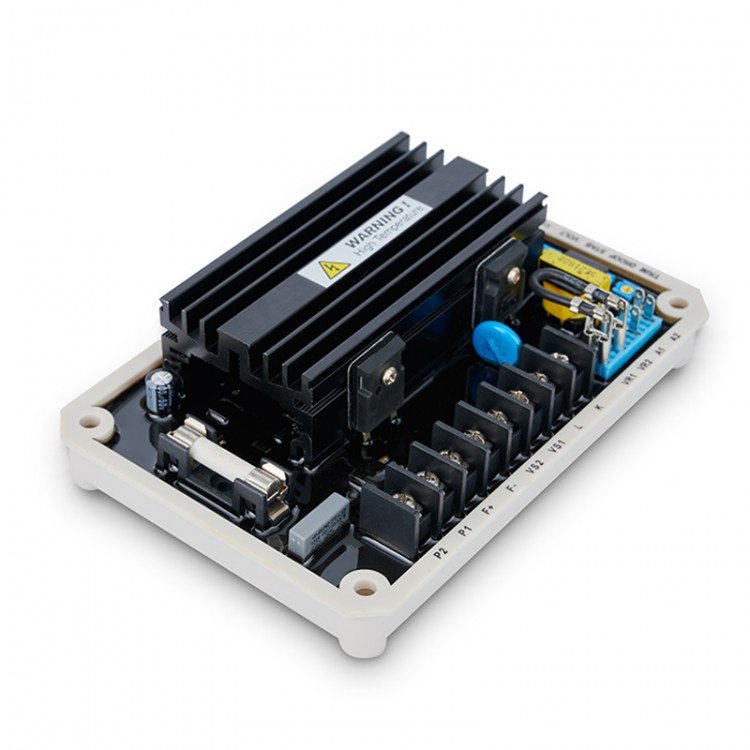

Maxgeek EA16A Generator Automatic Voltage Regulator AVR 30KW Adjustable Voltage Stabilizer for Kutai Generator
Description:
The EA16 AVR is an update of the EA15A AVR. It is similar to the original EA15Ain power and voltage sensing capabilities but with new enhanced paralleling functions: the user can now select the CT inputs either 1&5 Amp or use new A1&A2 analogue signal inputs terminals for use with PLC paralleling controls. It has new over-voltage excitation safety circuits to prevent damage caused by the accidental detachment of the sensing wires or irregularities on the generators excitation circuits.
Specification:
Sensing Input Voltage: 170-510 VAC, single phase 2 wires, voltage is DIP switch selectable
Frequency: 50/60 Hz, DIP switch selectable
Power Input Voltage: 60-300 VAC, single phase 2 wires
Output Voltage: Max 90 VDC 240 VAC input
Current: continuous 16A, intermittent 20A for 10 sec
Resistance: Min. 5 ohm
Voltage Regulation: <±0.5% (with 4% engine governing)
Voltage Build-up: residual voltage at AVR terminal >5 VAC
Thermal Drift: 0.03% per ℃ change in AVR ambient
Load Current Compensation: 1A or 5A Max . 7% @ PF ±0.5 DIP switch selectable
Analogue Voltage Input: Max. ±5VDC ±10 % @ ±3VDC
Over Excitation Protection: Max. output DCV 95% 20sec
External Volts Adjustment: ±5% with 2k ohm 1 watt 1 trimmer
Unit Power Dissipation: Max. 10 watt

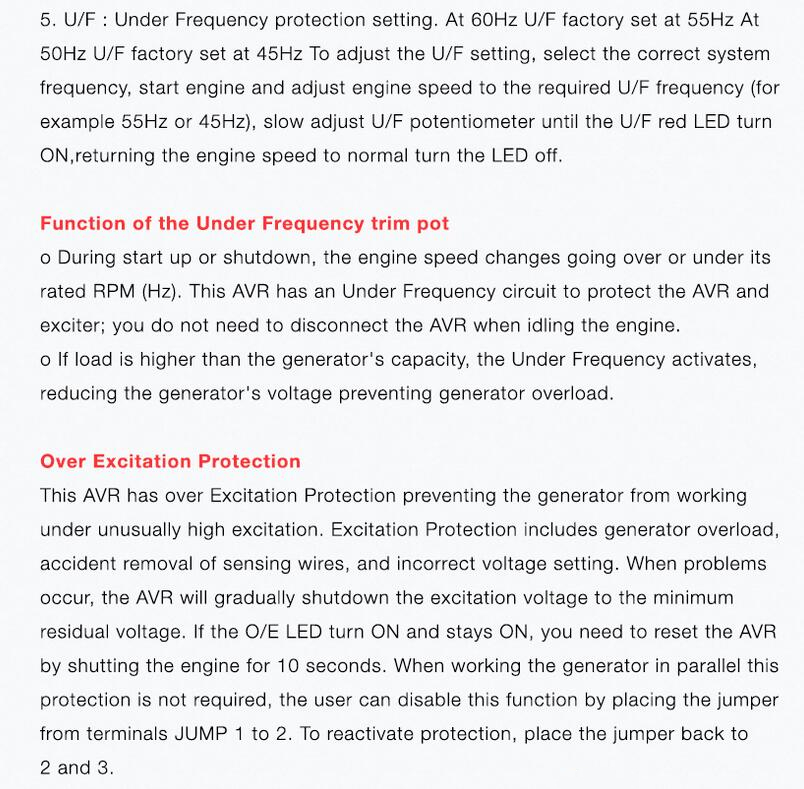

Under Frequency Protection (Factory Setting): 50/60Hz DIP SW selectable
Soft Start Ramp Time: 2 sec

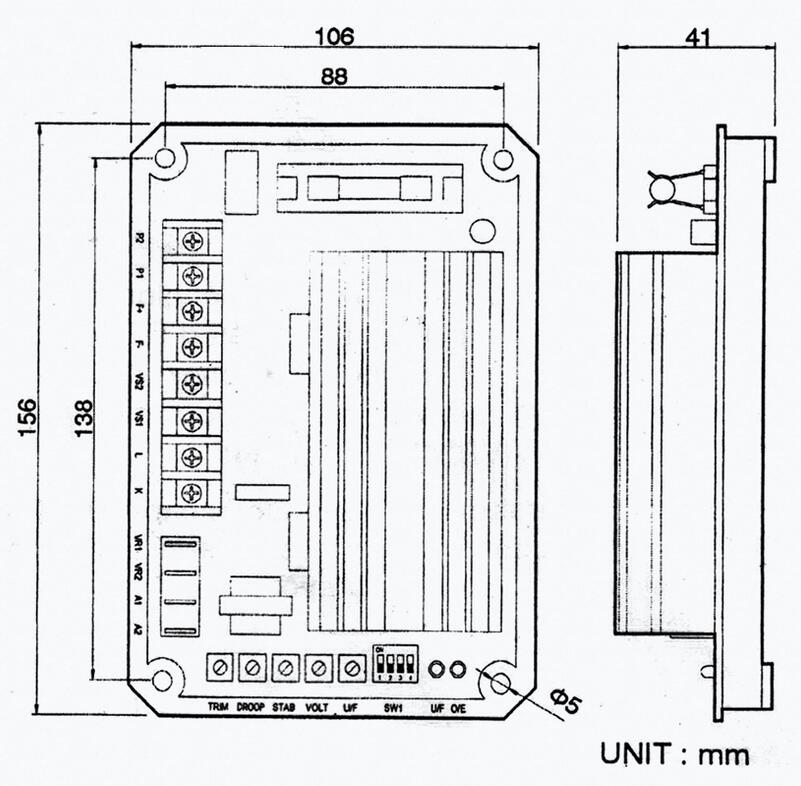

Dimensions: 156*106*43mm
Package List:
1 x Generator Voltage Regulator

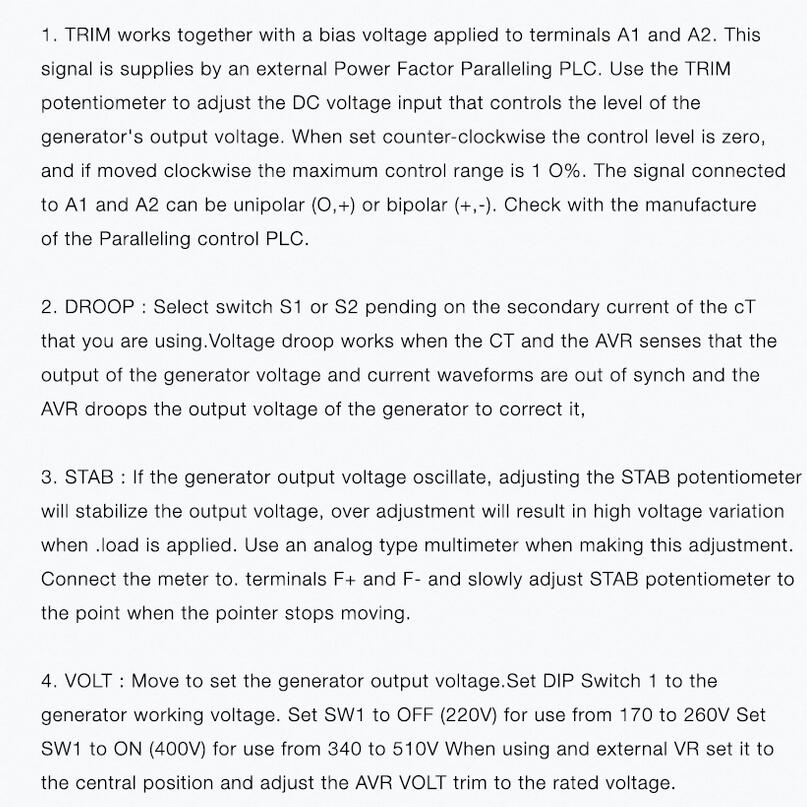

Adjustment:
