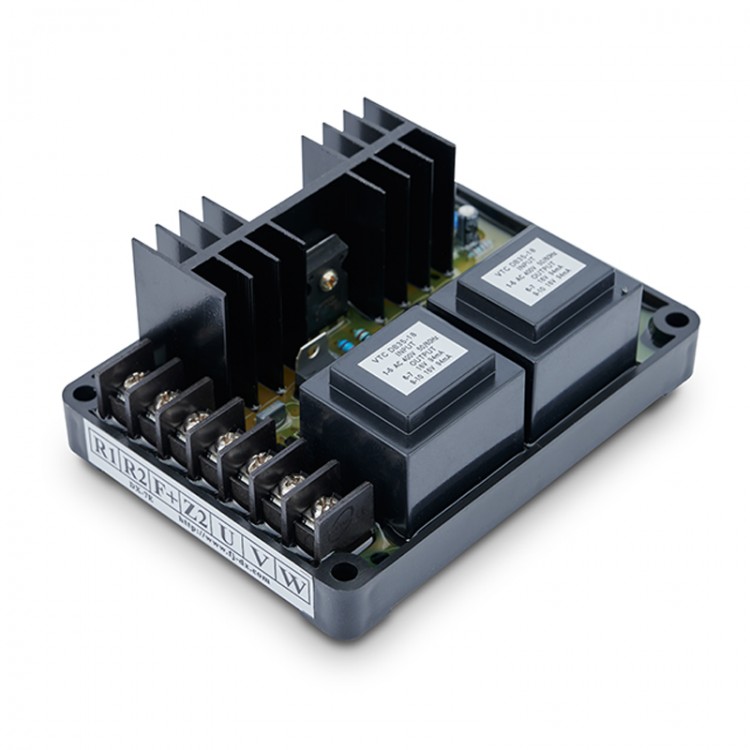

Maxgeek GB140 Generator AVR Automatic Voltage Regulator Diesel Genset Excitation Voltage Stabilizer Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.89
  • Price in reward points: 269 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.35 $25.81 $25.01 $23.93 Contact US
Quantity:

Maxgeek GB140 Generator AVR Automatic Voltage Regulator Diesel Genset Excitation Voltage Stabilizer Board

Specification:

Sensing/Power Input:
Voltage: 400VAC, 1 phase 2 wire
Frequency: 50/60Hz jumper selectable

Excitation Voltage Output:
Voltage: 20-100VDC
Shunt Current: 10A

Regulation: +/-1% RMS with 4% engine governing
Voltage Build-up: residual voltage at AVR terminal ≥5VAC
External Voltage Regulation: +/-10% with 1k ohm 1 watt trimmer

Package List:
1 x Generator Voltage Regulator
