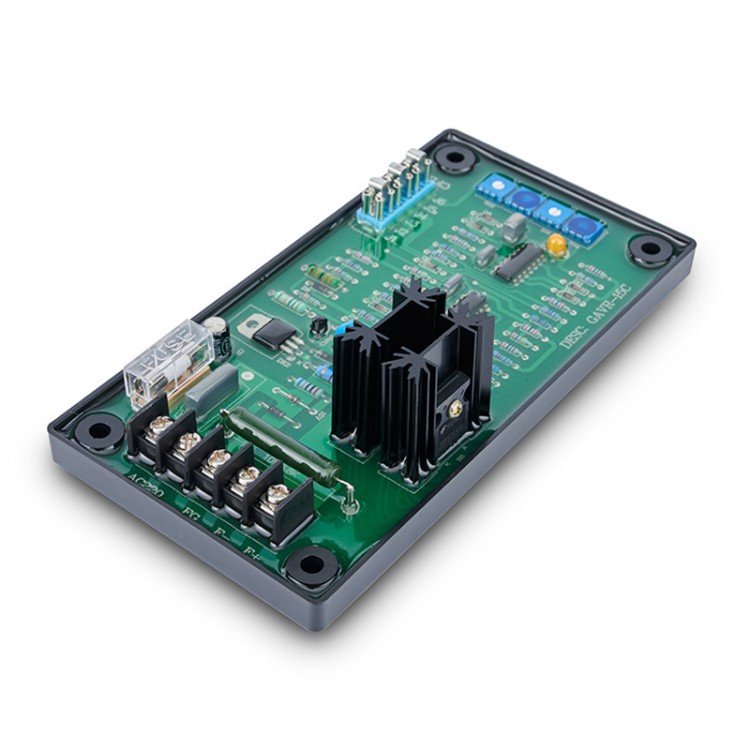

Maxgeek GB15A Brushless Generator AVR Automatic Voltage Regulator Alternator Excitation Voltage Stabilizer
Specification:
Sensing Input:
Voltage: 180/400VAC, 1 phase 2wire
Power Input:
180~240VAC, 1 phase 2wire
Output:
Voltage: Max. 90V DC@240V AC input
Current: continuous 6A, intermittent 10A for 10sec
Resistance: Min. 10Ω, Max. 100Ω
Under Frequency Protection: 60Hz system presets knee point at 55Hz, 50Hz system presets knee point at 47Hz
Volts Regulation: <±0.5% (with 4% engine governing)
Voltage Build-up: residual volts at AVR terminal >5VAC
External Volts Adjustment: ±7% with 1K ohm 1 watt with trimmer
Soft Start Ramp Time: 3 sec.
Unit Power Dissipation: Max. 8 watt
EMI Suppression: internal electromagnetic interference filtering
Thermal Drift: 0.05% per ℃ change in AVR ambient
Environment:
Vibration: 3G@100-2KHz
Relative humidity: <95%
Operating temperature: -40~65℃
Storage temperature: -40~85℃
Features:
-Voltage regulation <±1%
-220/440VAC programmable input
-Rugged compact design
-Soft start voltage ramp
-With under frequency roll off protection
-EMI suppression
-Built-in high capacity 15Amp fuse
Package List:
1 x Generator Voltage Regulator
