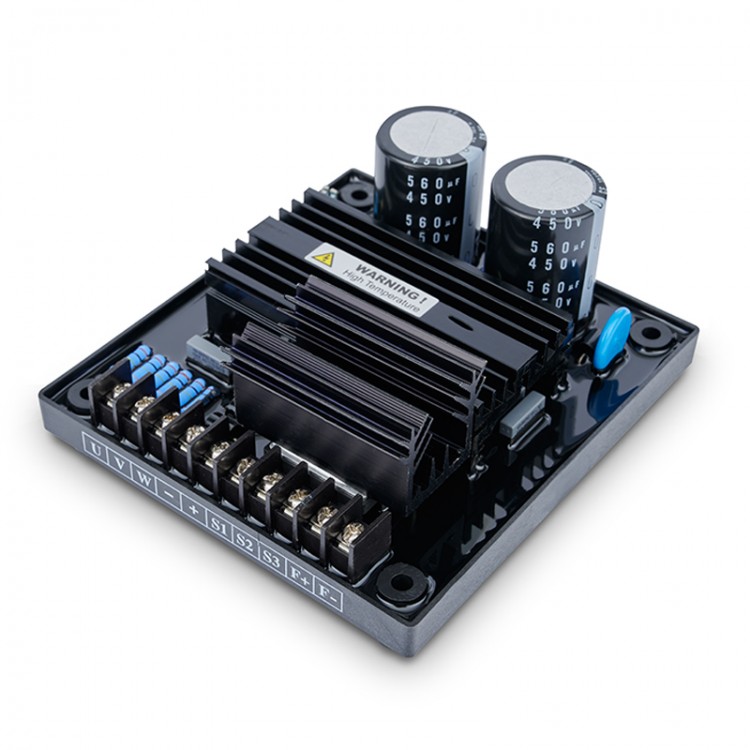

Maxgeek JF3011B Programmer AVR 380V Generator Set Automatic Voltage Regulator Three Phase

Availability: In stock, usually dispatched in 1 business day

  • Price:$62.43
  • Price in reward points: 624 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.18 $59.93 $58.06 $55.56 Contact US
Quantity:

Maxgeek JF3011B Programmer AVR 380V Generator Set Automatic Voltage Regulator Three Phase

Description:

This regulator adopts advanced technology and imported components. It has stable and reliable performance and high adjustment precision, especially suitable for the main engine driving generator of the ship. By controlling the level of the excitation voltage of the generator , the stability of the control output voltage is achieved.

Specification:
Power input: (S1, S2, S3): 50v-15V AC harmonic winding
Detection input (U, V, W): 380V/400V AC, 220 V AC 50/60Hz
Excitation output (F+, F-): 150V DC 20A
Battery access: +/-12V 20A

Use Instructions:
1 . After the installation connection is correct, turn on the switch, and press the start button. After the voltage is established, the diesel engine is turned to the medium speed, and the potentiometer on the voltage regulator board is adjusted so that the voltmeter pointer is around 380 volts. ( The factory has been debugged at 385V, no special voltage requirements are not adjusted)
2.When using the motor, the frequency is controlled at 45-55HZ3. If the local speed is not high enough, connect the battery R1(+) (positive+) R2(-) (negative-) to increase the generator voltage, when the generator stops and does not generate electricity, because the battery line is disconnected.

Package List:
1 x Generator AVR

Note:
1 . If the work is in the boost state, the boost switch or the main switch must be turned off at the same time when the diesel engine is turned off, so as to prevent the battery from flowing back to the generator magnetic field.
2 . The diesel engine must be turned off during line inspection to avoid the risk of electric shock.
3.Balance the electrical load as much as possible, and do not connect all the electricity to one phase.
4.JF3011B type voltage regulator is suitable for marine shaft type brushed single phase or three-phase 24KW generator.
5. Applicable to marine shaft-type brush generator single-phase or three-phase 24KW or less. Voltage 220V or 380V and 400V generator.
