Features:

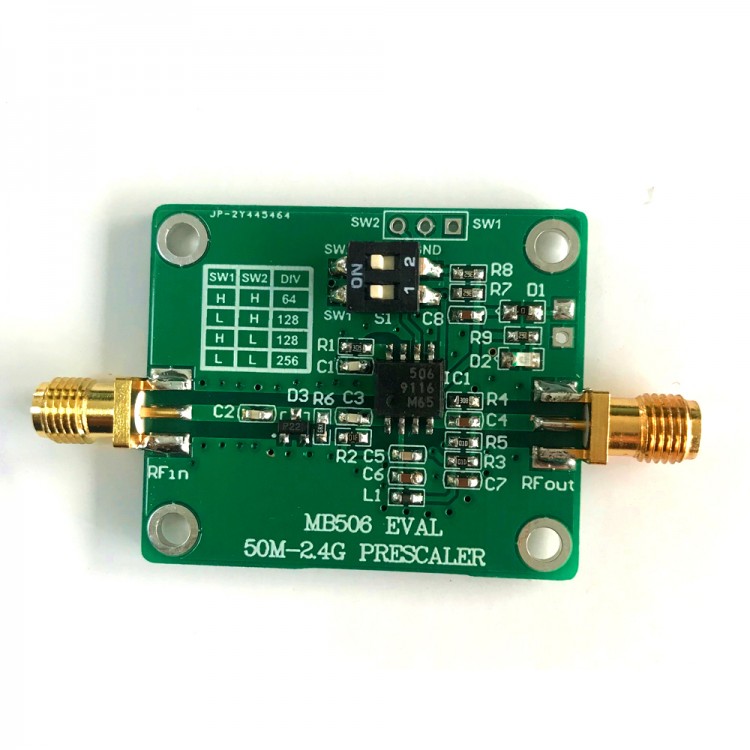

- MB506 is a high frequency prescaler with a frequency up to 2.4GHz.
- The impedance change is lower, which can get better classification performance and improve the dynamic range.
- It divides the input frequency by the modulus of 128 or 256, and the output level is 1.6V at the peak-to-peak value at the ECL level.
- The divider ratio can realize 64, 128 and 256 divider by two-digit dialing switch or external interface.
- Complete Phase Locked Loop synthesizer circuit with MB87006A, Phase Locked Loop synthesizer IC.
Specification:
- Material: PCB
- Model: MB506
- Frequency: 50m-2.4g
- Power consumption: 90mW
- Operating temperature: -40 °C to 85 °C
- Output amplitude: VOUT = 1.6Vp-p
- Input frequency: 30M-3G, typical: 50MHz-2.4GHz
- Input signal amplitude: -16dBm-5.5dBm (the higher the frequency, the higher the input requirement)
- Single power supply: 4.5V - 5.5V, typical: 5V
- Input and output interface: SMA female, input impedance 50 ohms
- Size: approx. 6.7 * 3.3 * 0.5cm / 2.64 * 1.3 * 0.2in
- Weight: 10g
Package Contents
- 1 X 2.4GHz MB506 Module Prescaler 64 128 256 Frequency Divider for CATV Transceiver
