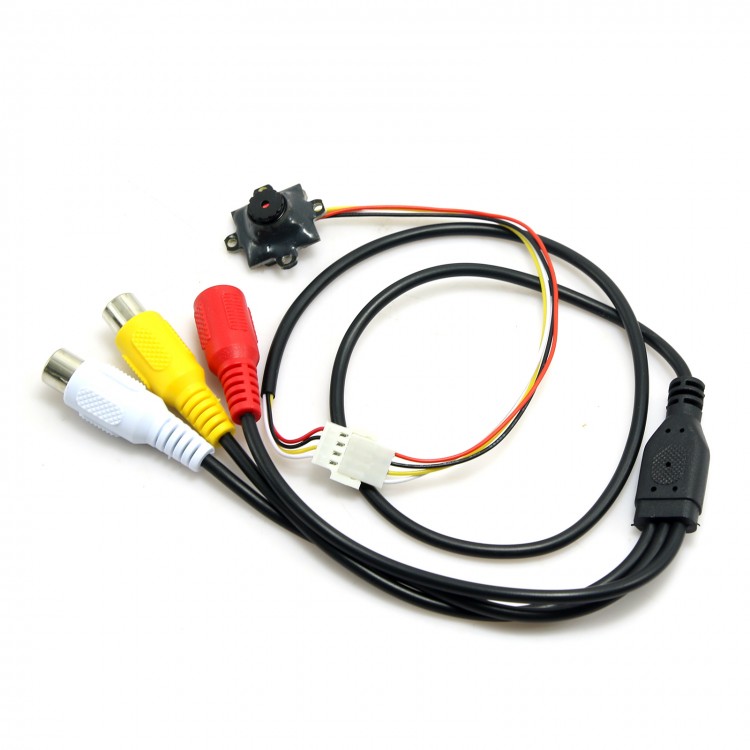

MC493A DC3.3V-6V Mini CMOS CCTV Camera 520TVL 0.008Lux HD Video Cam for Security

MC493A DC3.3V-6V Mini CMOS CCTV Camera 520TVL 0.008Lux HD Video Cam for Security

Description:
-  Small Size: easy to install into narrow room and slim tube, etc.;
-  Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
-  Camera stand can rotate 360 degrees, all-round monitoring
-  High resolution, high sensitivity, high SNR;
-  Day & night dual mode auto switch;
-  Low Illumination, Low Current and power consumption;
-  CMOS sensor generation IV+DSP chip offer true color & HD video.

Specification:
-  PICK UP ELEMENT: Single chip 1/3 CMOS
-  SYSTEM: NTSC/ PAL
-  NUMBER OF PIXEL:  NTSC:656(H)×492(V); PAL:786(H)×576(V)
-  IMAGE SIGNAL PROCESS: Digital Signal Processing System
-  SENSOR DIMENSION: 4.75mm(H)×3.55mm(V)
-  HORIZONTAL RESOLUTION: Approximately 520TV Lines
-  SCANNING SYSTEM: 2:1 Interlace
-  SENSITIVITY: 0.008Lux/F1.2
-  LENS & VIEW ANGLE: 0.5mm F2.0 / 55 °
-  S/N RATIO: 48dB
-  AUTO GAIN CONTROL: OUT
-  WHITE BALANCE CONTROL: OUT
-  BACK LIGHT COMPENSATION: OUT
-  VIDEO  OUT: 1.0V p-p/75ohm
-  SIZE  (L x W x H): 16mm x 16mm x 10.5mm
-  WEIGHT: 3g
-  WORK CURRENT: 70mA
-  POWER REQUIREMENT: DC 3.3V-6V
-  Operating TEM.:- 10° C ~ +50°C,less than 90% RH
-  Connection:PIN1- Red DC5V  PIN2- Black GND  PIN3- Yellow VIDEO OUT - White VIDEO OUT

Package included:
- 1* Camera
- 1*User Manual
- 1*BNC/RCA Cable
- 1*Power Adapter
