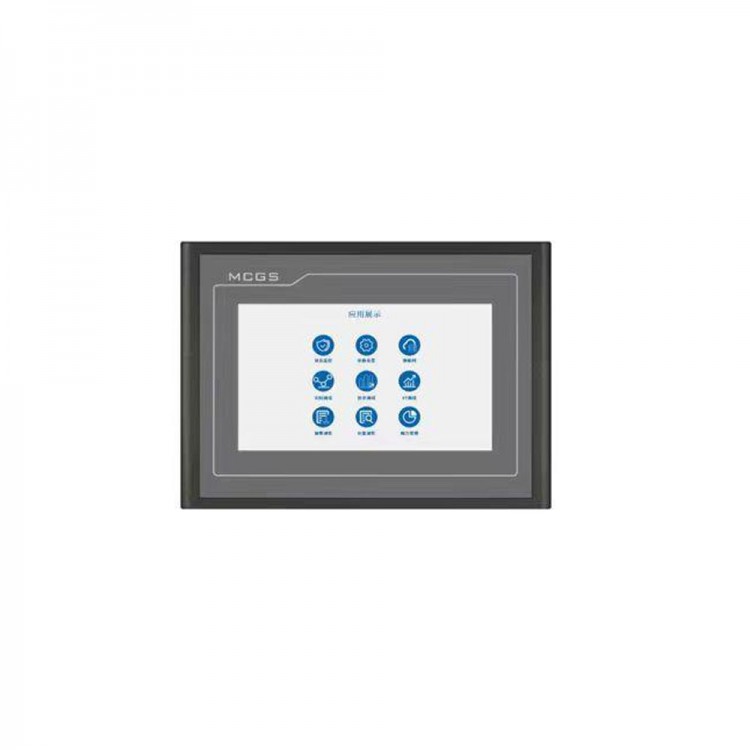

MCGS TPC7022Nt-WiFi 7-Inch HMI IoT Screen Touch Screen with 215mm×152mm Cutout Size & 128MB+128MB

MCGS TPC7022Nt-WiFi 7-Inch HMI IoT Screen Touch Screen with 215mm×152mm Cutout Size & 128MB+128MB

Description:
It is an intelligent IoT touch screen based on a CPU (for ARM) with a main frequency of 800MHz. It features a 7-inch TFT LCD display with a resolution of 800×480 and a 4-wire resistive touch screen. The device also comes pre-installed with the McgsPro configuration software (runtime version).

Specifications:
Product Characteristics:
* Display: 7" TFT
* Backlight Type: LED
* Display Colors: 65,536 colors
* Resolution: 800×480
* Brightness: 250cd/m²
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Rated Power: 6W
* Processor: For ARM, 800MHz
* Memory: 128MB
* System Storage: 128MB
* Configuration Software: McgsPro

Wireless Expansion:
* Optional Wi-Fi Interface: Wi-Fi IEEE 802.11 b/g/n
* Optional 4G Interface: Supports China Mobile/China Unicom/China Telecom

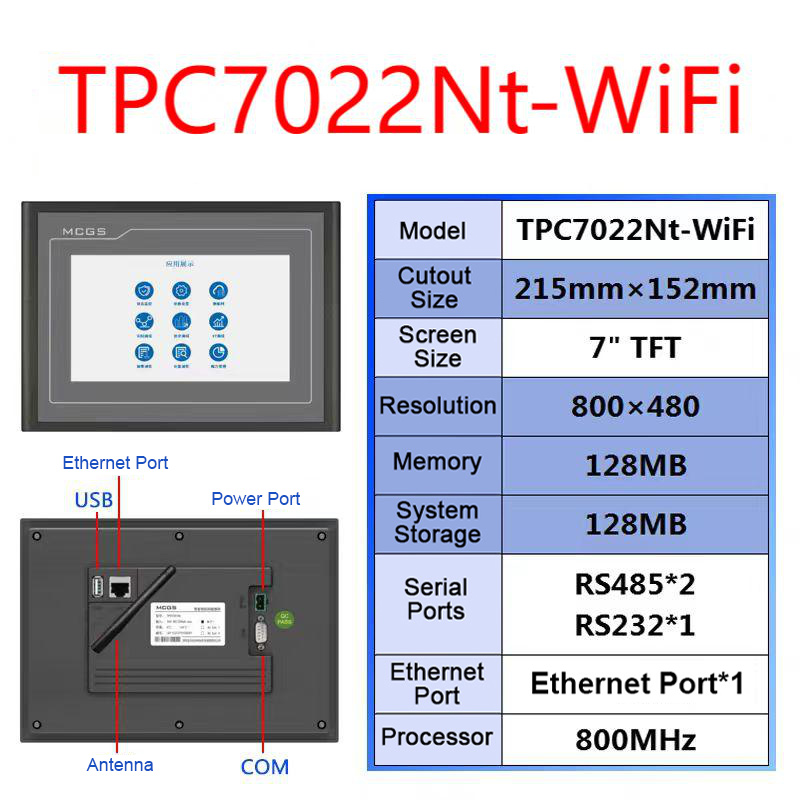

External Interfaces:
* Serial Ports:
   ** Option 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
   ** Option 2: COM1 (RS232) and COM9 (RS422)
* USB Port: 1 × USB Host
* Ethernet Port: 1 × 10/100M adaptive Ethernet port

Environmental Conditions:
* Operating Temperature: 0℃ to 50℃
* Operating Humidity: 5% to 90% (non-condensing)
* Storage Temperature: -10℃ to 60℃
* Storage Humidity: 5% to 90% (non-condensing)

Product Parameters:
* Housing Material: Engineering plastic
* Dimensions: 226mm × 163mm
* Panel Cutout Dimensions: 215mm × 152mm

Product Certification:
* Product Certification: Complies with CE/FCC certification standards
* Protection Level: IP65
* Electromagnetic Compatibility: Industrial Grade 3

Packing List:
* 1 × IoT Touch Screen
* 1 × Antenna

Packaging Details:
* Weight: 0.8kg
